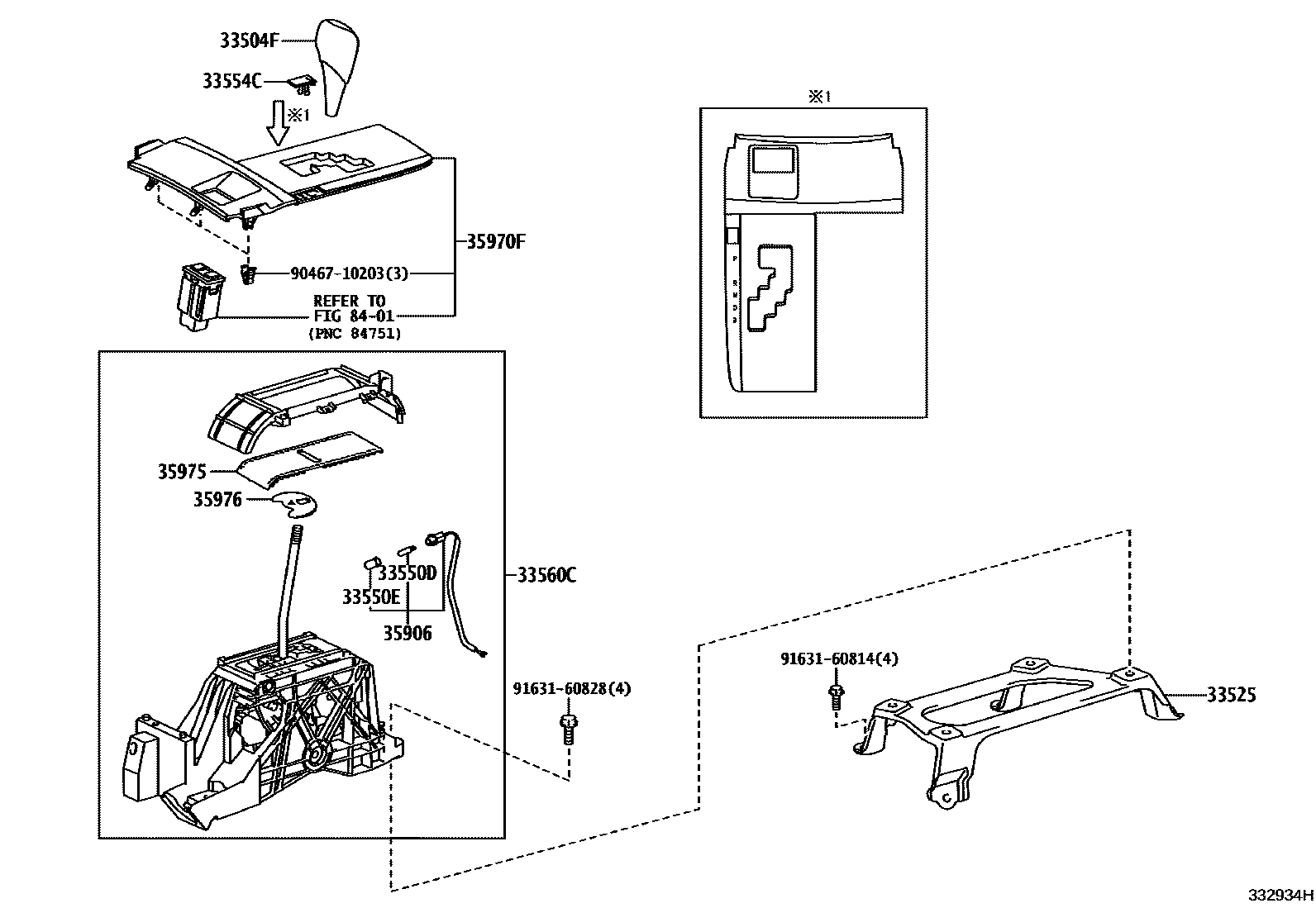

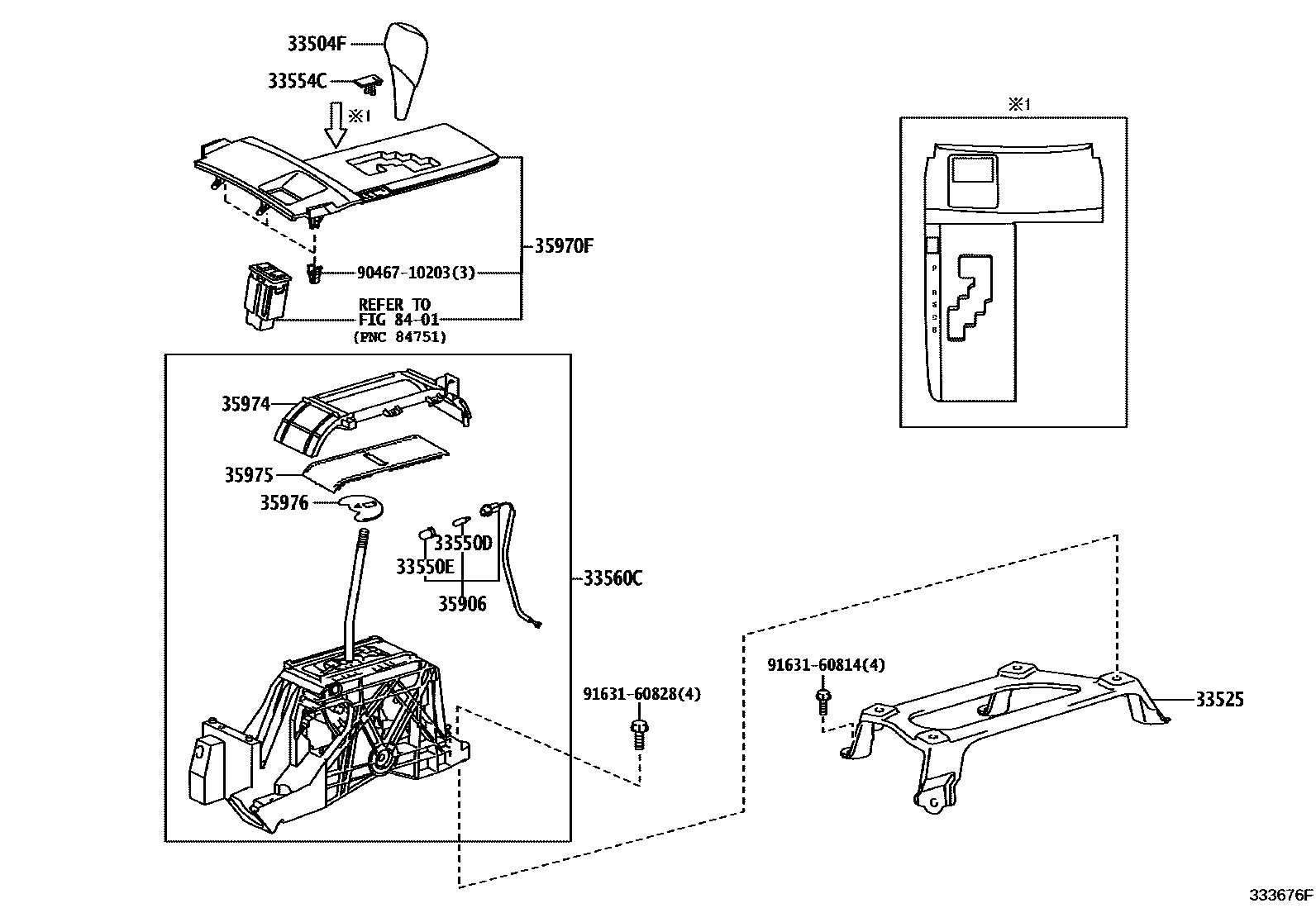

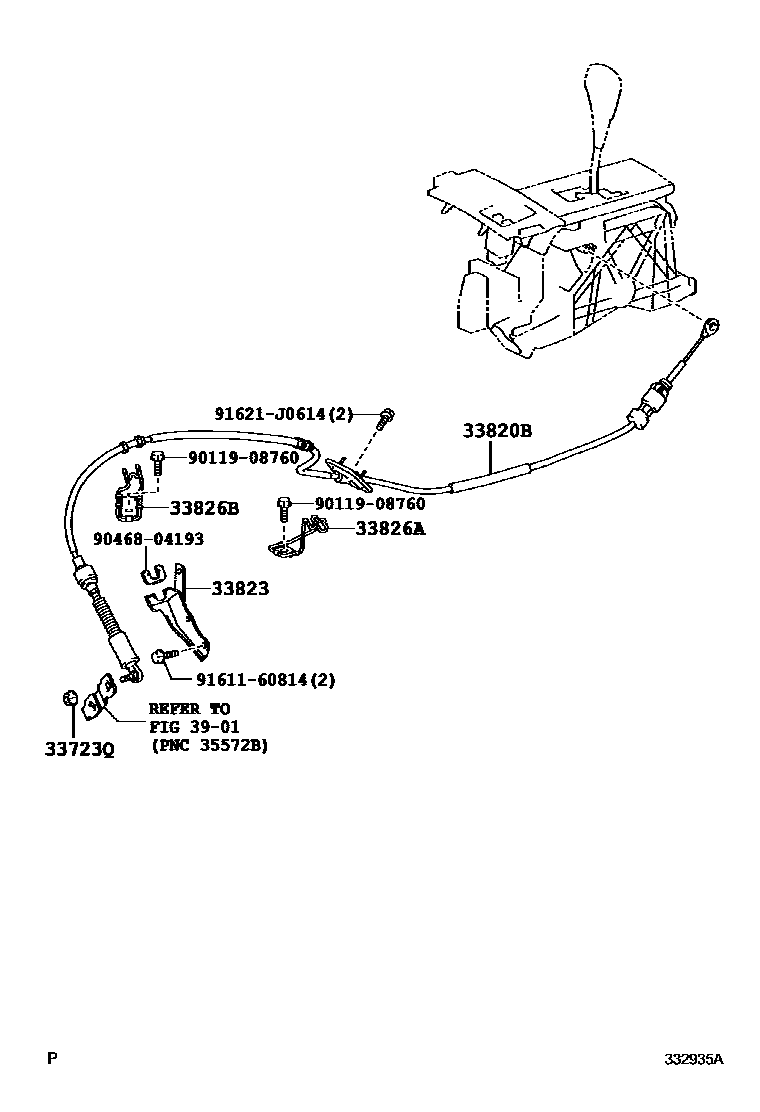

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33525 | shift lever bracket | 58123-33020 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04049 |
| 33554C | Shift lock release button cover | 33554-33090 |
| 33560C | Lower shift lever assembly | 33560-33130 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-33290 |
| 33823 | No. 1 transmission control cable bracket | 33823-33060 |
| 33826A | No. 2 transmission control cable bracket | 33826-33060 |
| 33826B | No. 3 transmission control cable bracket | 33827-33040 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-33130 · 35906-33131 |
| 35974 | Position indicator light lower shell | 35974-33130 |
| 35975 | Slide cover (for position indicator light) | 35975-33110 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-33130 |
