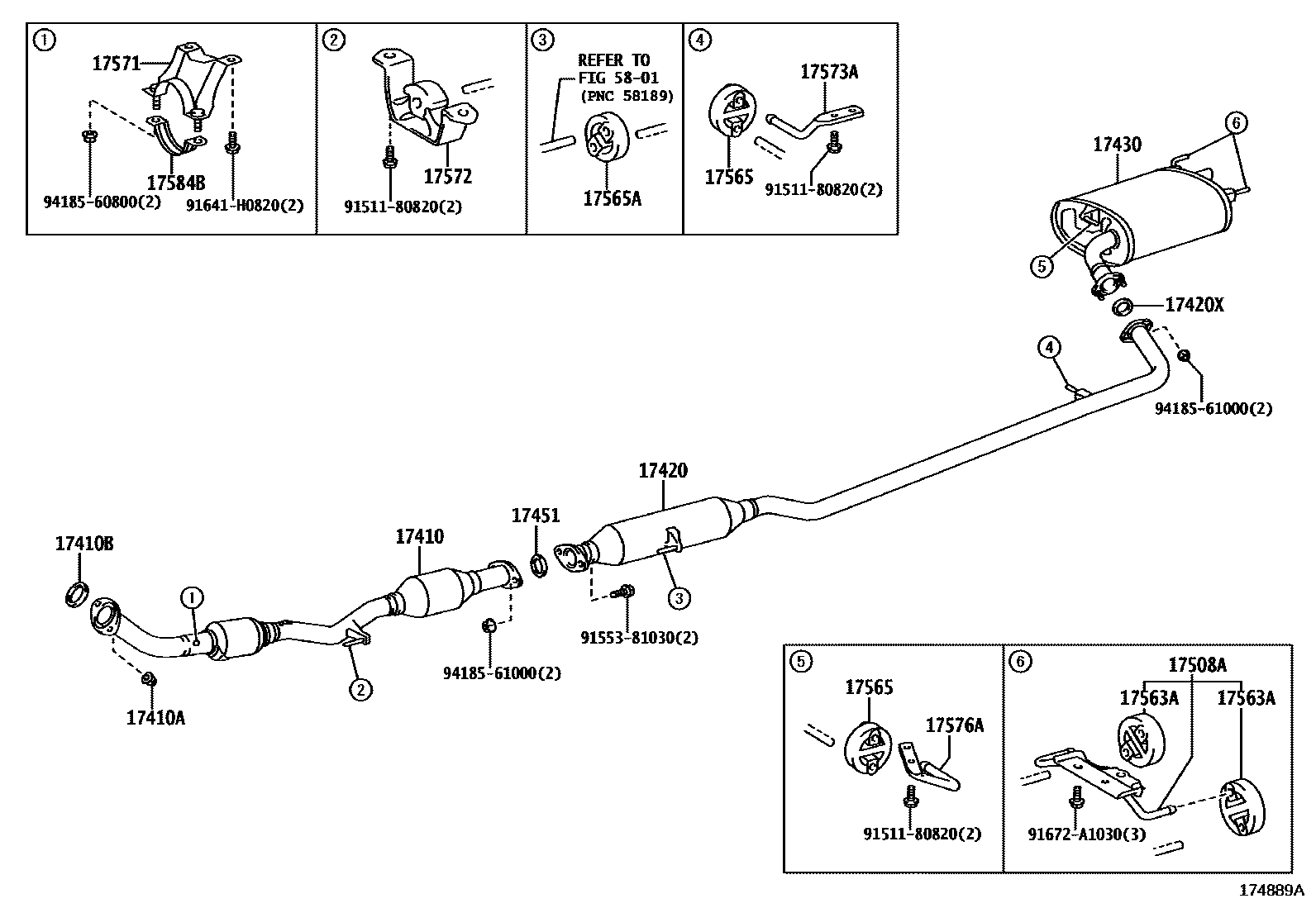

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-28570 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06090 |
| 17420 | Central exhaust pipe assembly | 17420-28470 |
| 17420X | Center exhaust pipe liner | 90917-06045 |
| 17430 | Exhaust tailpipe assembly | 17430-28720 |
| 17451 | Exhaust pipe gasket | 90917-06076 |
| 17508A | No. 3 exhaust pipe bracket sub-assembly | 17508-31050 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-31040 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-22040 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-22030 |
| 17571 | No. 1 exhaust pipe bracket | 17571-28080 |
| 17572 | No. 1 exhaust pipe bracket | 17572-28020 |
| 17573A | No. 3 exhaust pipe bracket | 17573-31020 |
| 17576A | No. 6 exhaust pipe bracket | 17576-31070 |
| 17584B | No. 1 exhaust pipe bracket | 17584-28020 |
