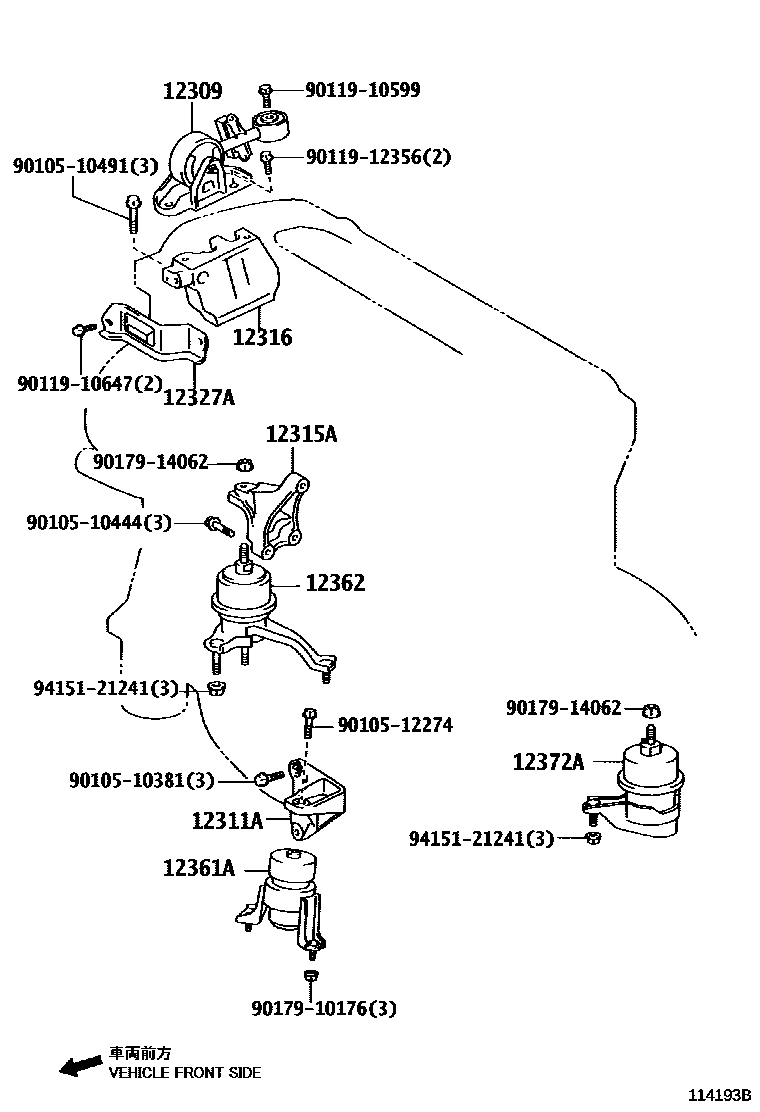

Toyota CAMRY Engine Mounting — Figure 1107
Toyota CAMRY EPC diagram 1107, Engine Mounting, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12309 | Engine motion control lever sub-assembly | 12309-28160 · 12309-28161 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-28210 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-28070 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-28061 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-28030 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-28220 · 12361-28221 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-28190 · 12362-36030 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-28250 |
