Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106

Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 7 PNC and OE references.

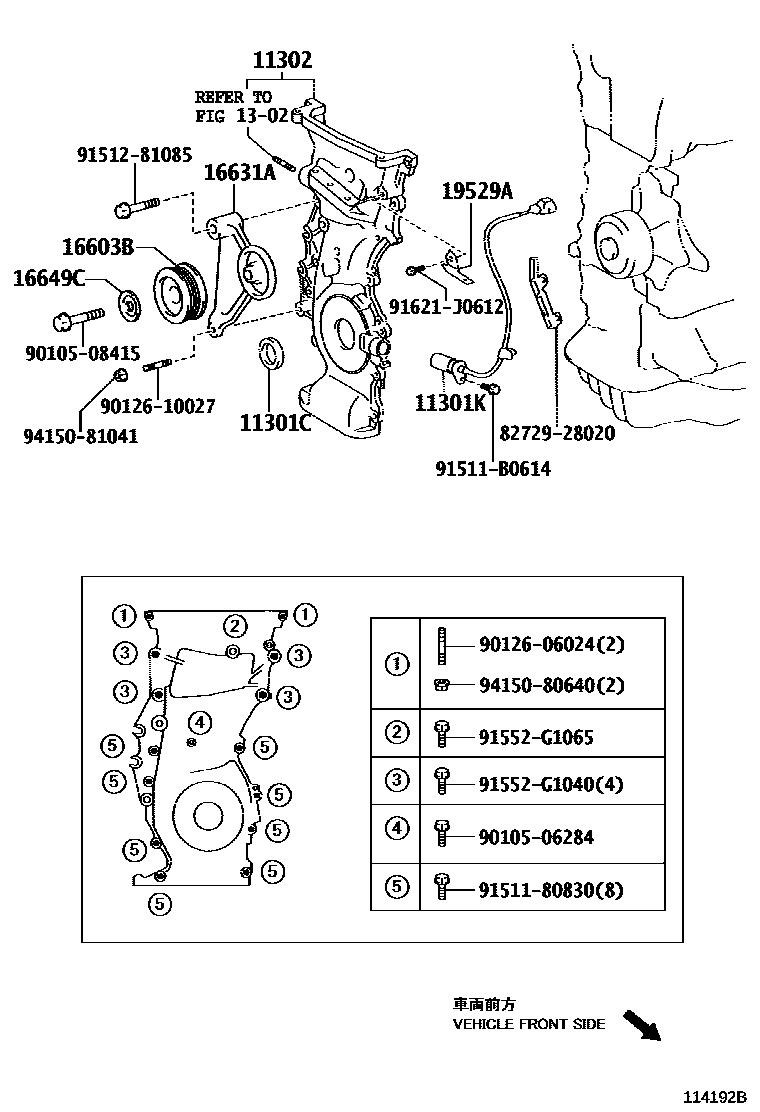

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — 114192B
Timing Gear Cover & Rear End Plate — 114192B (200603 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-38089
11301Kcrankshaft position sensor90919-05047
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-28071
16603BIdler gear sub-assembly16603-28030
16631AIdler gear bracket16631-28020
16649CIdler cover16649-28010
19529Acard holder19529-28010
