Toyota CAMRY Cylinder Head — Figure 1104

Toyota CAMRY EPC diagram 1104, Cylinder Head, with 1 images and 23 PNC and OE references.

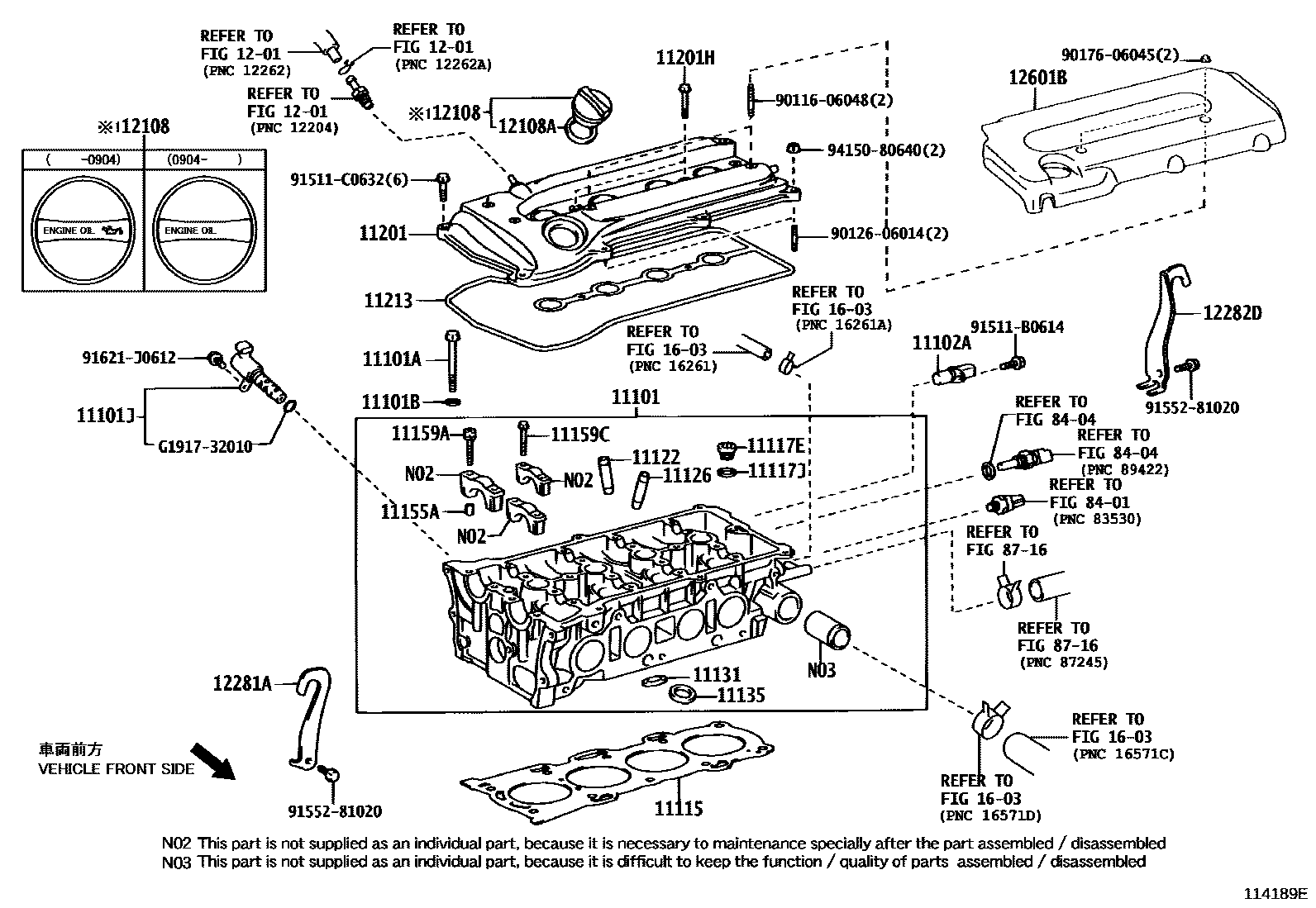

Toyota CAMRY Cylinder Head EPC diagram — 114189E
Cylinder Head — 114189E (200603 – 999999)

PNC and OE references

PNCPart nameOE numbers
11101CYLINDER HEAD SUB-ASSY11101-0H011 · 11101-28012
11101ABOLT (FOR CYLINDER HEAD)90910-02162
11101BFlat Washer (for cylinder head assembly)90201-11034
11101JCamshaft timing oil control valve assembly15330-28020
11102ACamshaft position sensor90919-05026
11115GASKET, CYLINDER HEAD11115-28040
11117EPLUG, STRAIGHT SCREW W/HEAD, NO.190341-27006
11117JGasket (for cylinder head thread plug)90430-27005
11122BUSH, INTAKE VALVE GUIDE11122-28010 · 11123-28010
11126BUSH, EXHAUST VALVE GUIDE11126-20020 · 11127-20020
11131intake valve seat11131-0H020 · 11131-28021 · 11132-0H020 · 11132-28021
11135Exhaust valve seat11135-0H020 · 11135-28040 · 11136-0H020 · 11136-28040
11155APIN, RING W/HEAD90253-11021 · 90253-A0007
11159ABOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90080-10210 · 90105-08353
11159CBOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90080-11292 · 90119-06902
11201CYLINDER HEAD COVER SUB-ASSY11201-28031 · 11201-28032
11201HBolts (for cylinder head cover)90119-06903
11213GASKET, CYLINDER HEAD COVER11213-28021
12108OIL FILLER CAP SUB-ASSY12180-28031 · 12180-38010 · 12180-38020
12108AGASKET (FOR OIL FILLER CAP)90430-35001 · 90430-37004
12281AEngine No. 1 hanger12281-0H010 · 12281-28010
12282DENGINE HANGER, NO.212282-0H010 · 12282-28010
12601BNo. 1 engine hood sub-assembly12601-28160
