Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

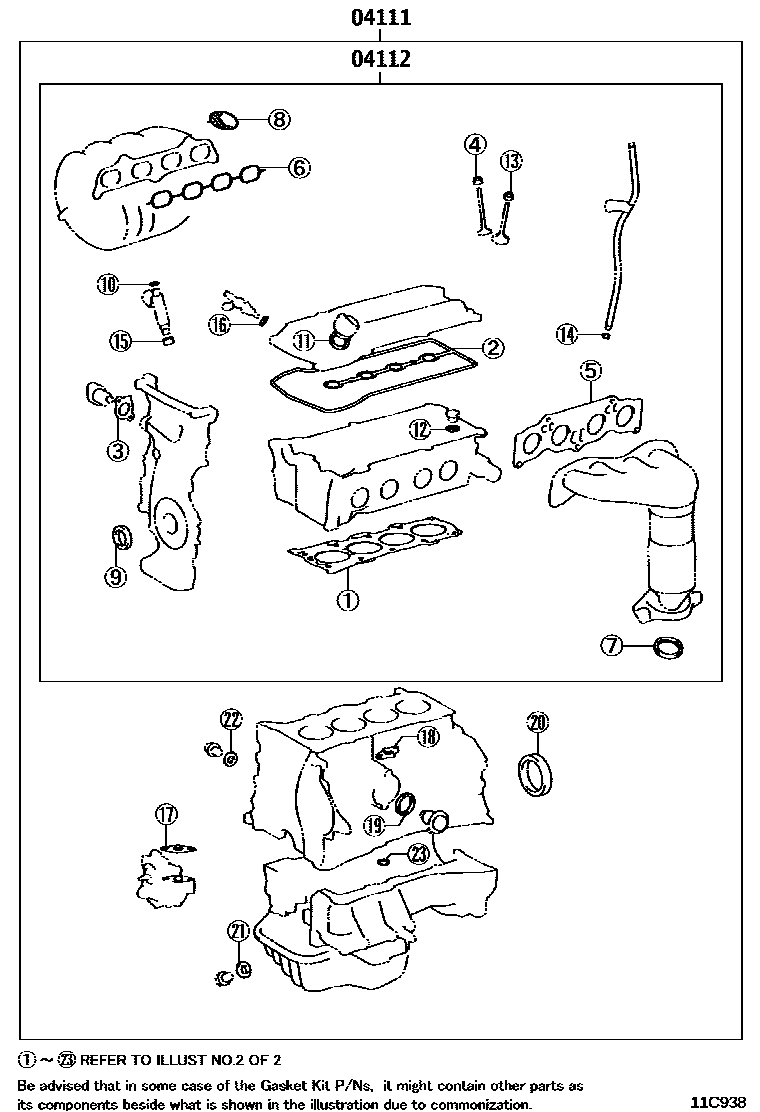

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C938
Engine Overhaul Gasket Kit — 11C938 (200603 – 200710)

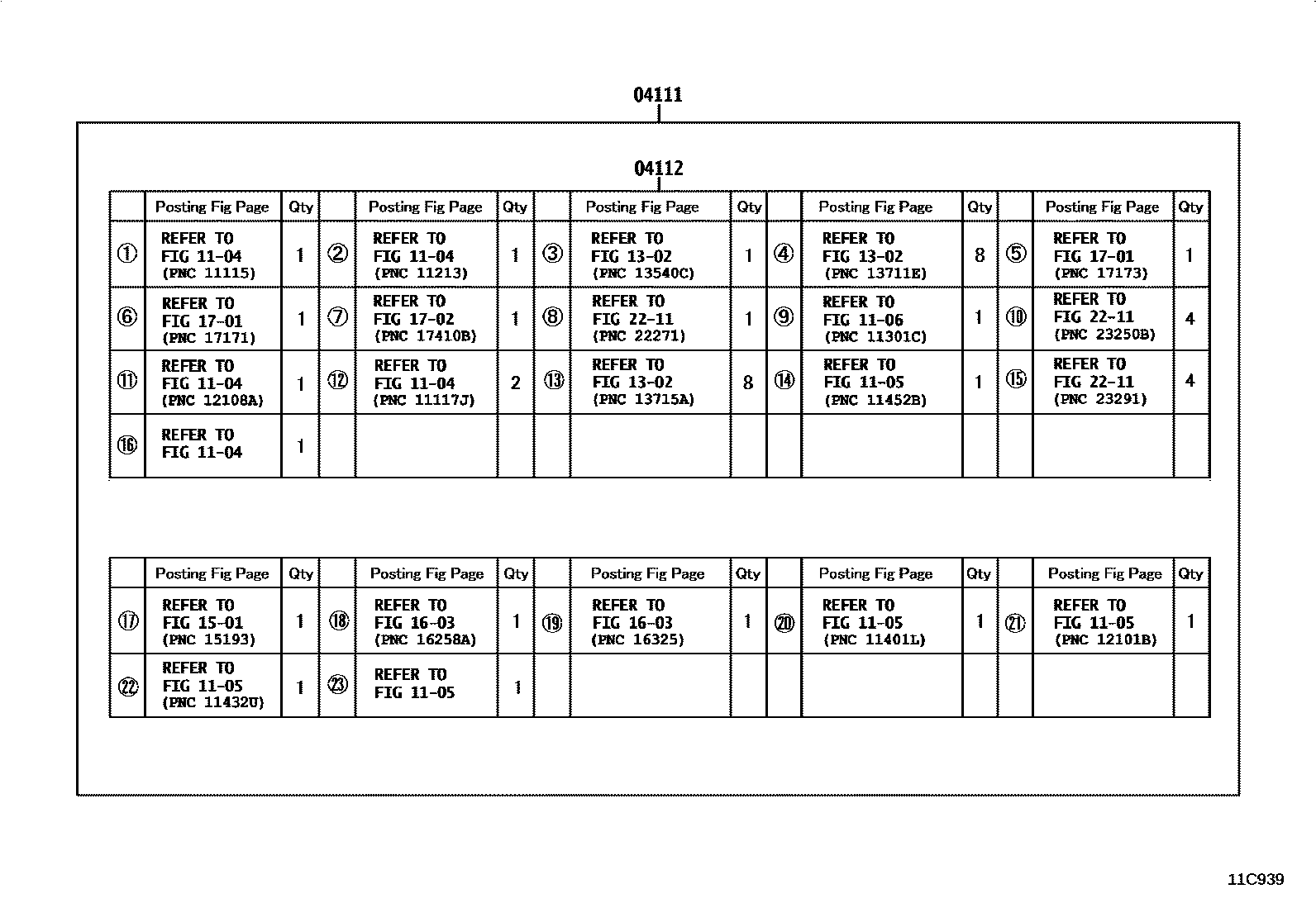

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C939
Engine Overhaul Gasket Kit — 11C939 (200603 – 200710)

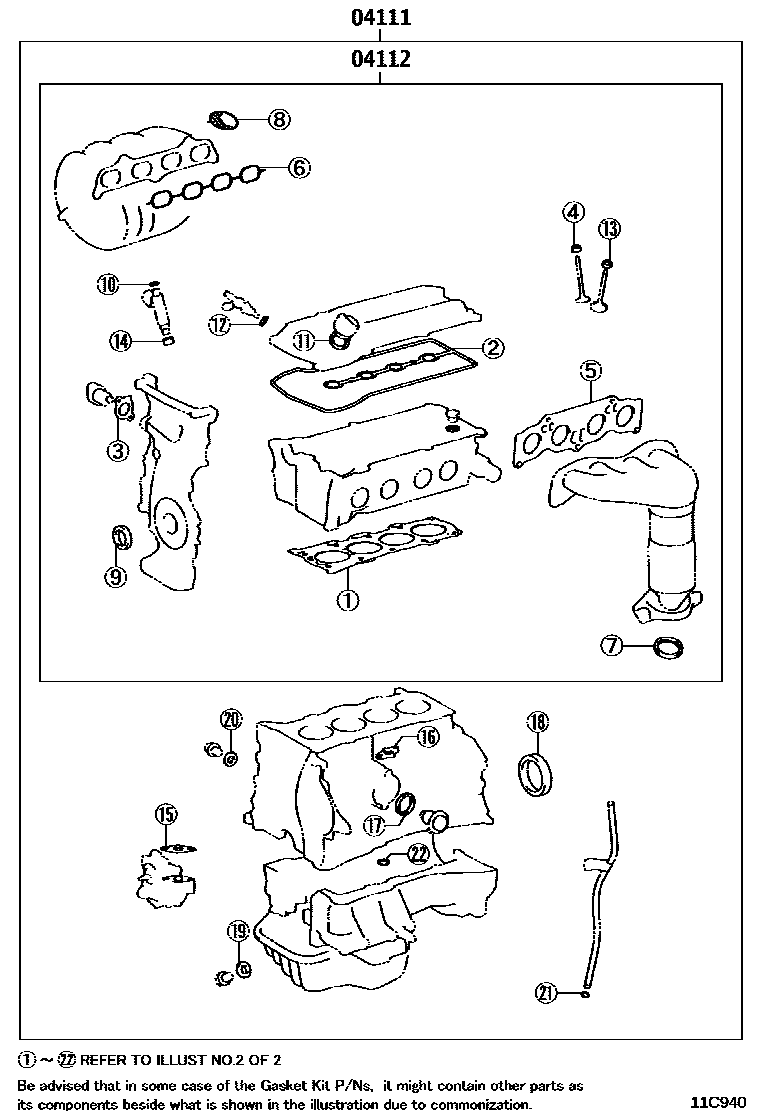

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C940
Engine Overhaul Gasket Kit — 11C940 (200710 – 201108)

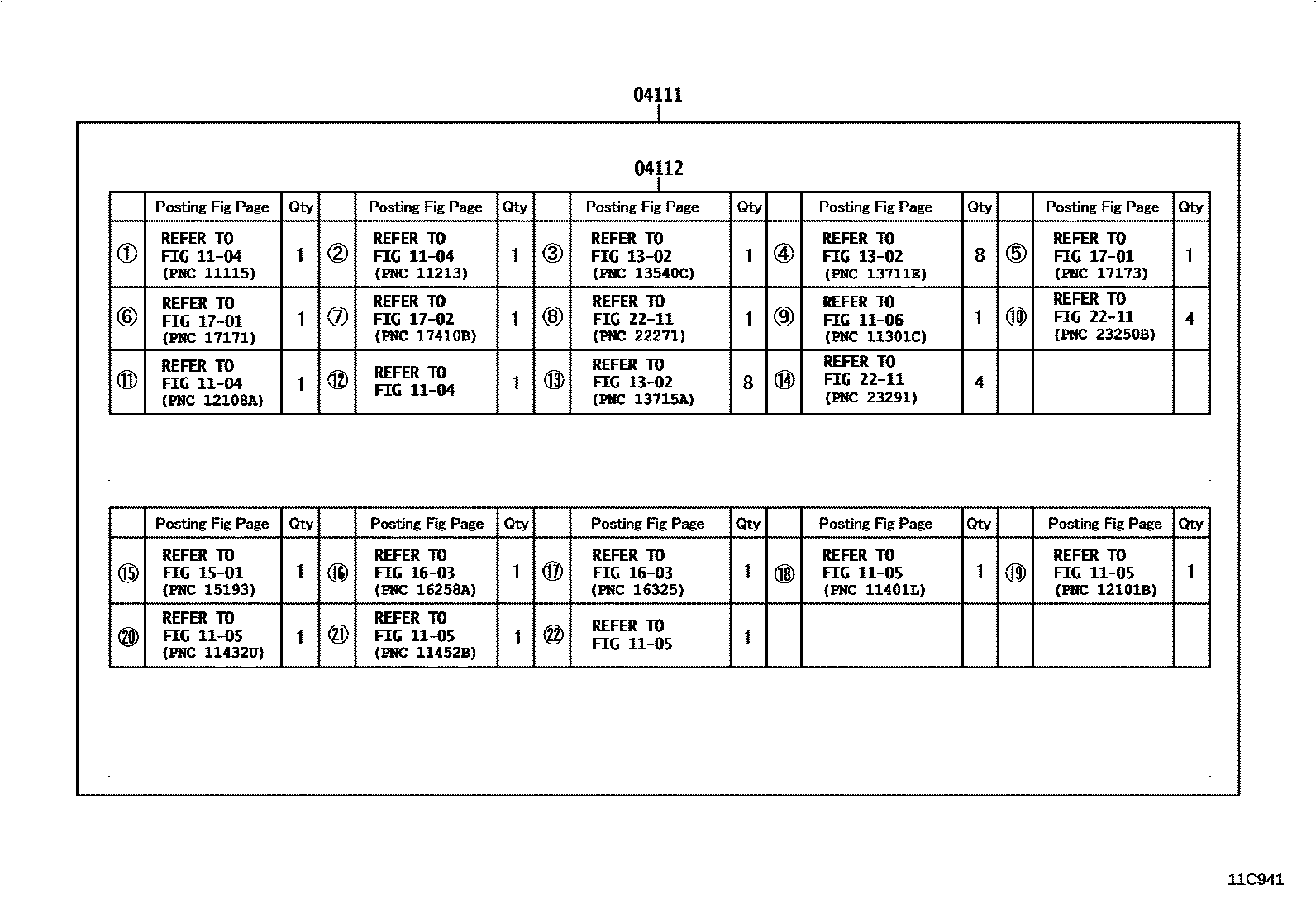

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C941
Engine Overhaul Gasket Kit — 11C941 (200710 – 201108)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-28830 · 04111-28831 · 04111-28832
04112Engine valve grinding pad assembly04112-28680 · 04112-28681 · 04112-28682
