Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

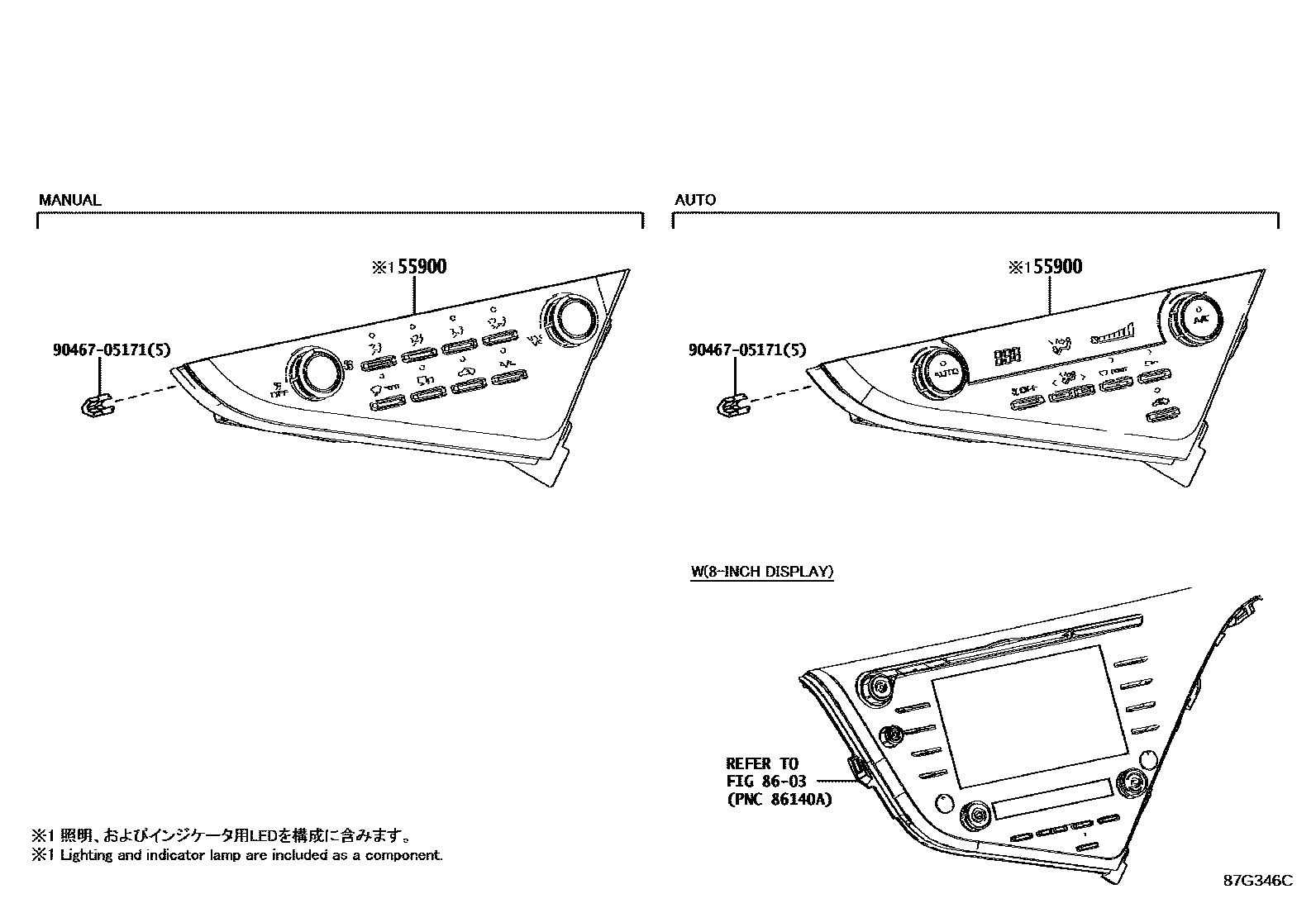

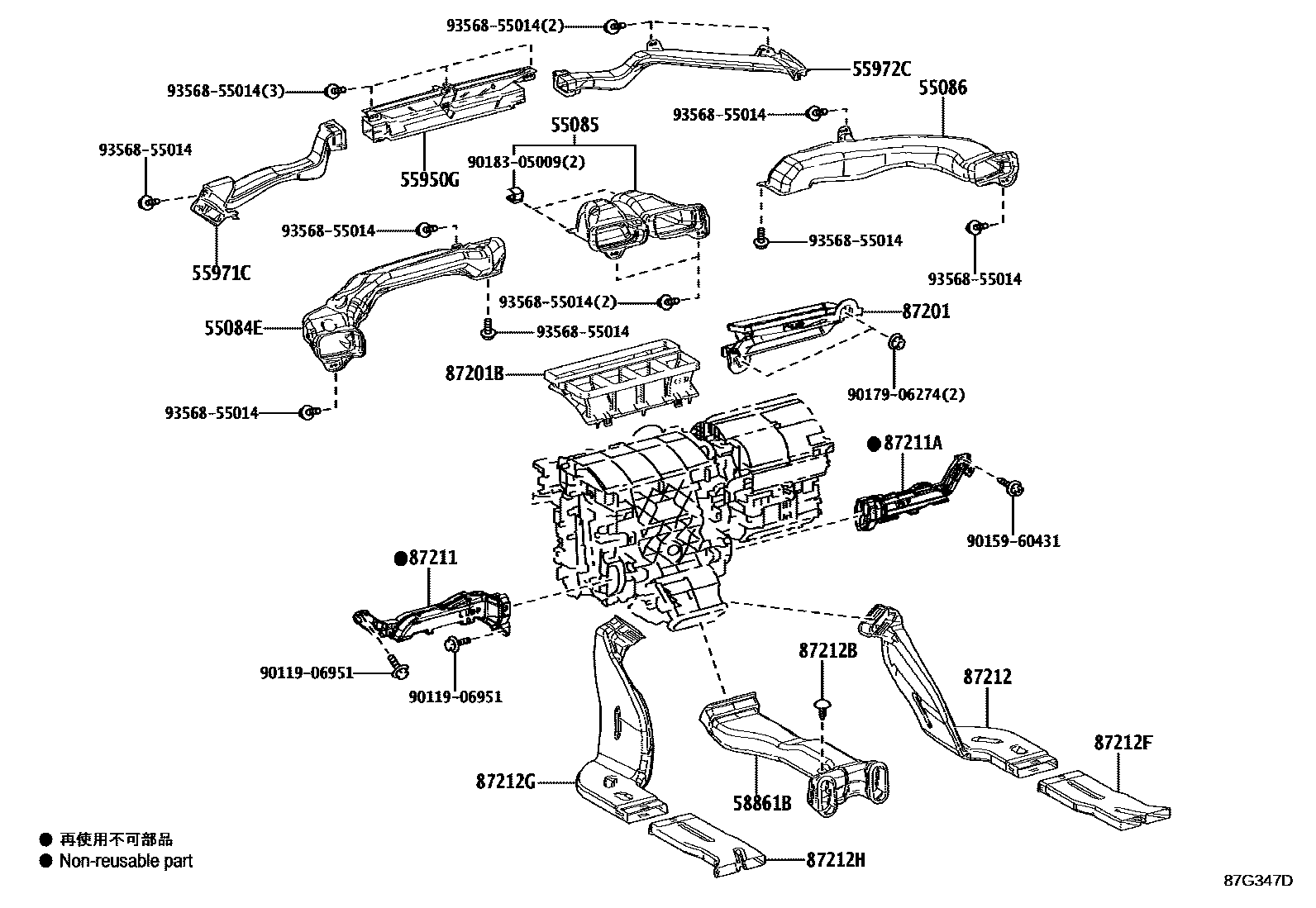

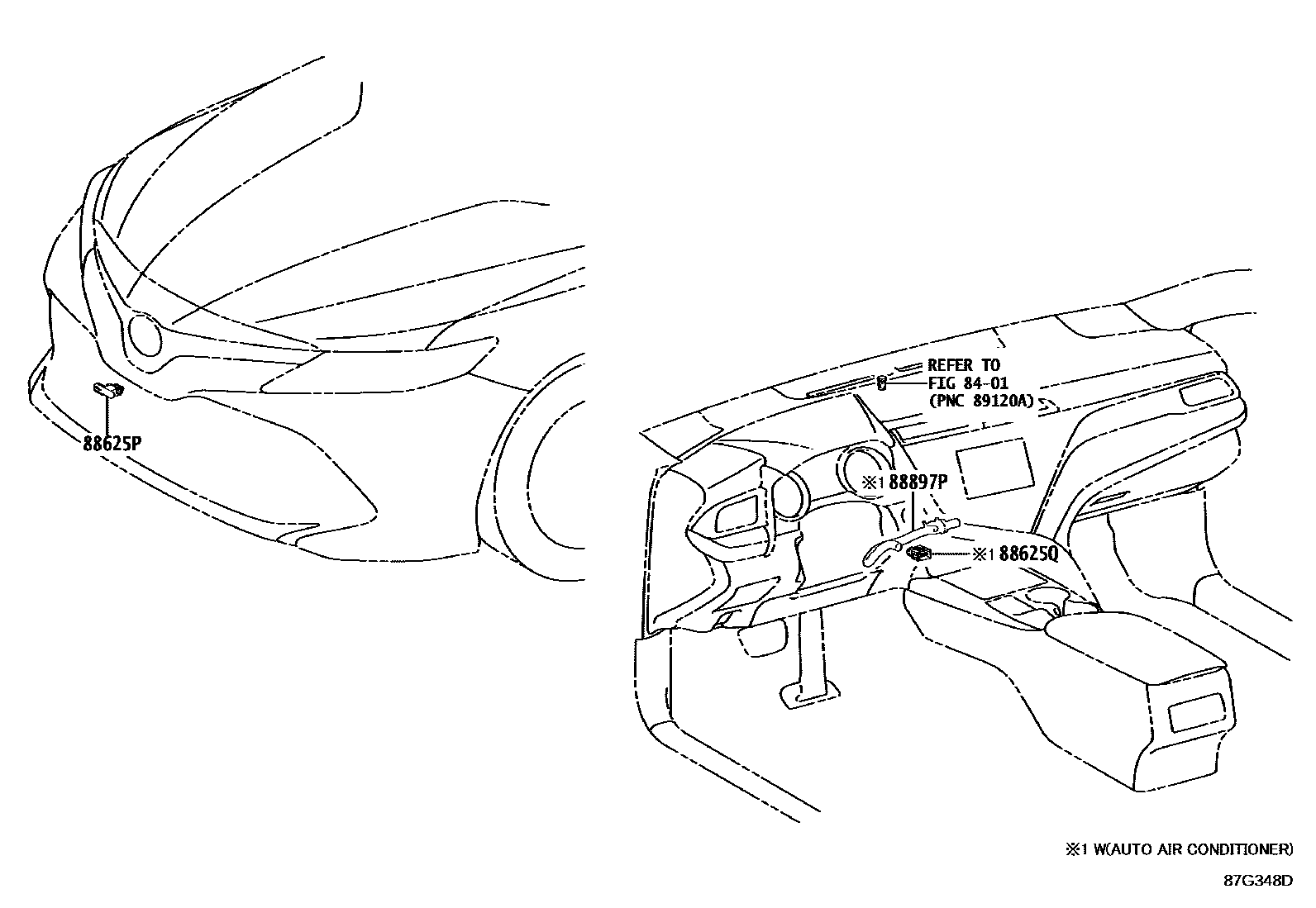

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55843-33230 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55844-33190 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55845-33180 |
| 55900 | Air conditioning control assembly | 55900-33K90 · 55900-33L00 · 55900-33L40 · 55900-33L50 |
| 55950G | Defroster nozzle assembly | 55950-33140 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-33150 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-33160 |
| 58861B | Air duct No. 1 for armrest box | 58861-33110 |
| 87201 | No. 1 air duct sub-assembly | 87201-33470 |
| 87201B | No. 2 air duct sub-assembly | 87201-33530 |
| 87211 | No. 1 air duct | 87201-33410 |
| 87211A | Duct No. 2 | 87201-33460 |
| 87212 | No. 1 rear air duct | 87212-33050 |
| 87212F | No. 2 rear air duct | 87215-33020 |
| 87212G | No. 3 rear air duct | 87213-33070 |
| 87212H | No. 4 rear air duct | 87216-33020 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-28100 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88897P | aspirator | 87201-33480 |
