Toyota CAMRY 后视镜 — Figure 8701

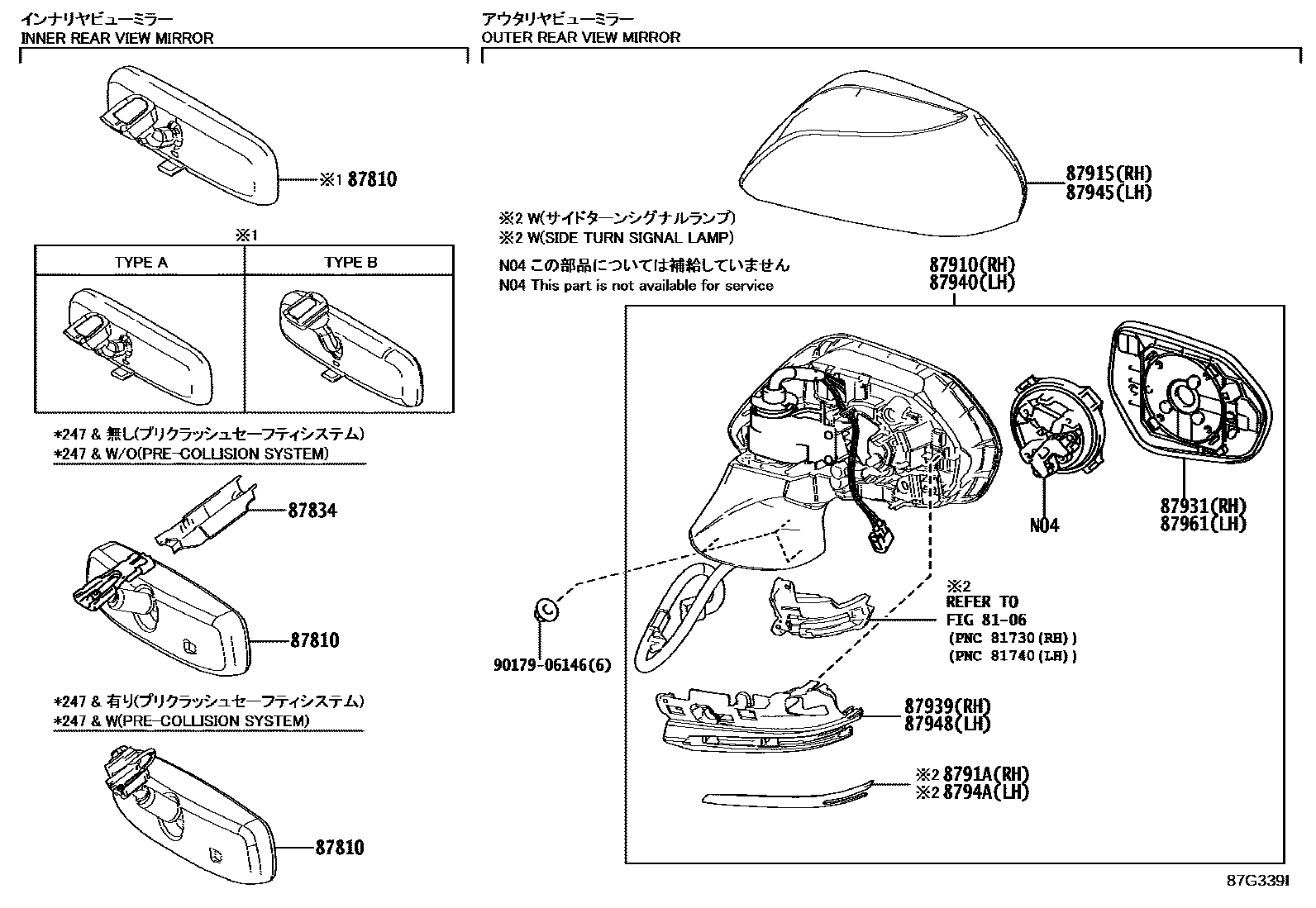

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06200 · 87810-06201 · 87810-06250 · 87810-06251 · 87810-53200 · 87810-53210 · 87810-60191 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-76010 |
| 87910 | Right exterior rearview mirror assembly | 87910-33C20 · 87910-33C30 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791B-47360 |
| 87931 | Right exterior rearview mirror | 87902-33100 · 87902-33110 |
| 87939 | Right exterior rearview mirror hole cover | 87939-33C20 · 87939-47360 |
| 87940 | Left exterior rearview mirror assembly | 87940-33C20 · 87940-33C30 |
| 87948 | Left exterior rearview mirror hole cover | 87948-33C20 · 87948-47250 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794B-47250 |
| 87961 | Left exterior rearview mirror | 87907-33080 · 87907-33090 |
