Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 1 images and 8 PNC and OE references.

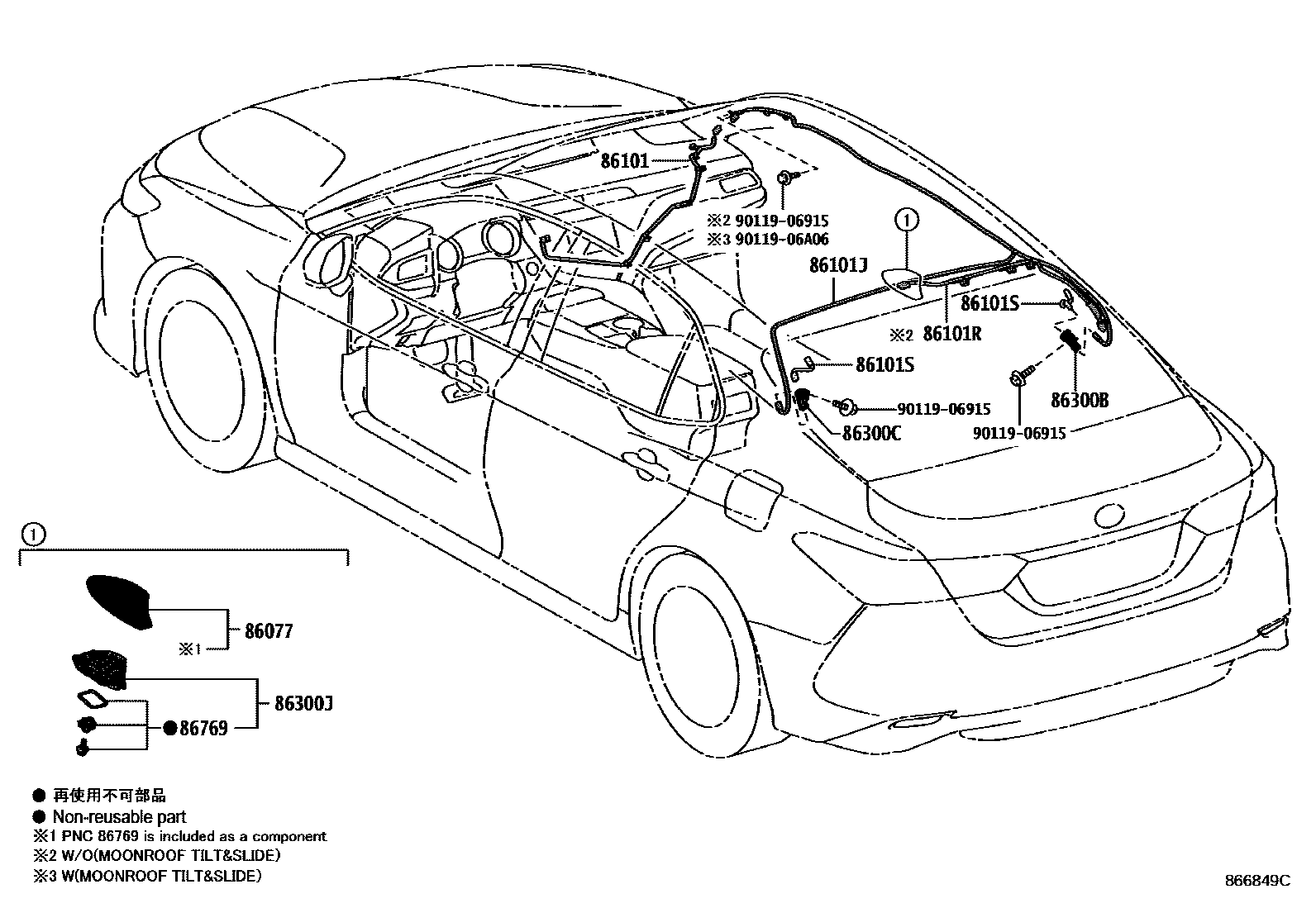

Toyota CAMRY antenna EPC diagram — 866849C
antenna — 866849C (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-33K40 · 86101-33M30 · 86101-33N10
86101JNo. 2 antenna wire sub-assembly86101-33J20 · 86101-33M50 · 86101-33M70 · 86101-33M80 · 86101-33U20
86101RNo. 5 antenna wire sub-assembly86101-33L80 · 86101-33U50
86101SAntenna wire sub-assembly86101-33J00
86300BAmplifier antenna assembly86300-33370
86300CAmplifier antenna assembly86300-33380
86300JRoof antenna assembly86760-12020 · 86760-33190
86769LOGEMENT, ANTENNE DE TOIT86769-53010
