Toyota CAMRY 导航和前监视器显示屏 — Figure 8603

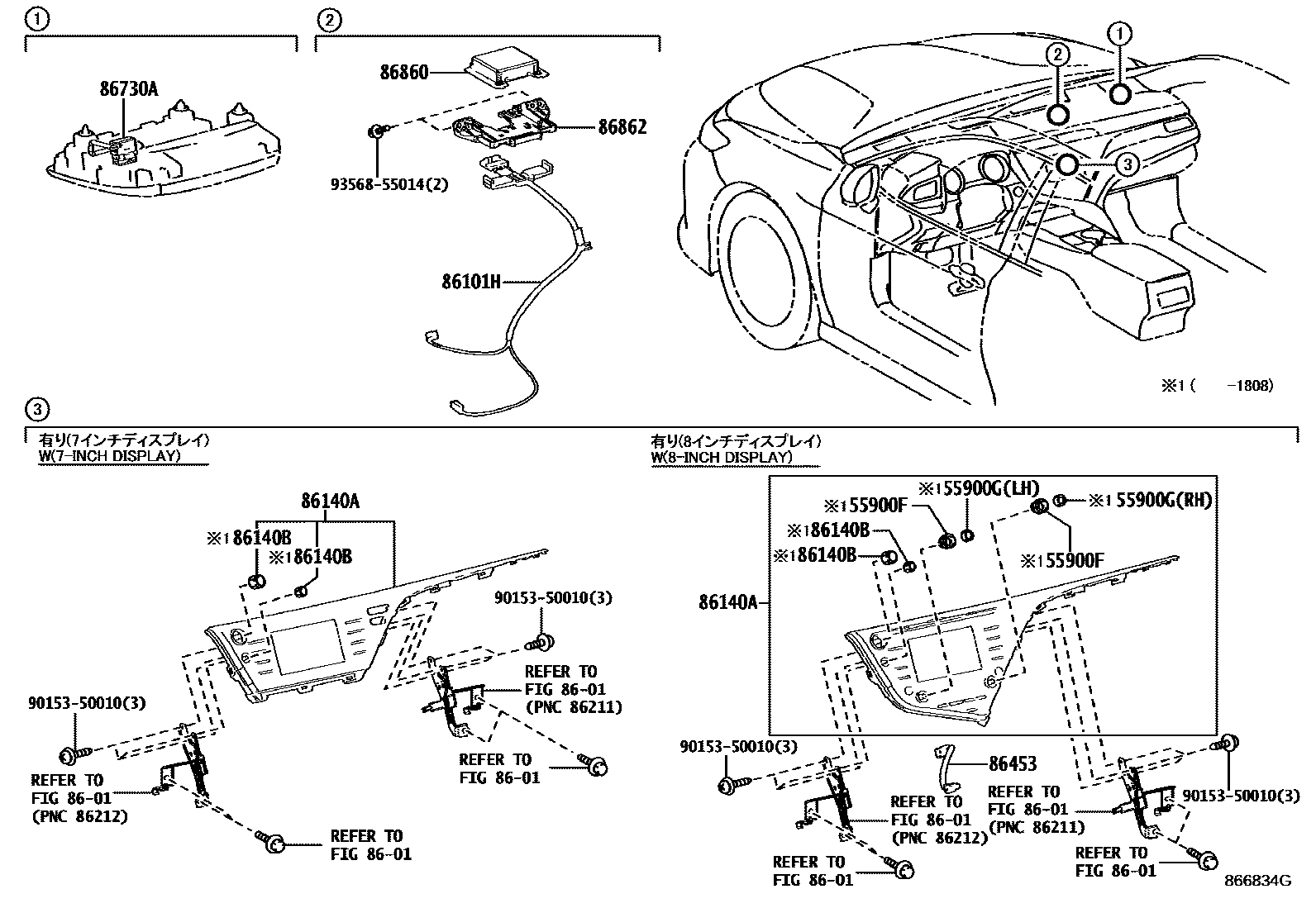

Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55900F | CADRAN, COMMANDE DE CLIMATISATION | 90010-24188 |
| 55900G | BOUTON, COMMANDE DE CLIMATISATION | 90010-24184 · 90010-24185 |
| 86101H | Antenna wire sub-assembly | 86101-33M20 |
| 86140A | Radio and display receiver assembly | 86140-33380 · 86140-33390 · 86140-33D10 |
| 86140B | Radio and display receiver switch button | 90010-22121 · 90010-22122 · 90010-24180 · 90010-24181 |
| 86453 | Multimedia module wiring harness | 86203-33280 |
| 86730A | Telephone amplifier assembly | 86730-48040 |
| 86860 | Navigation antenna assembly | 86880-47090 |
| 86862 | Navigation antenna bracket | 86862-58020 |
