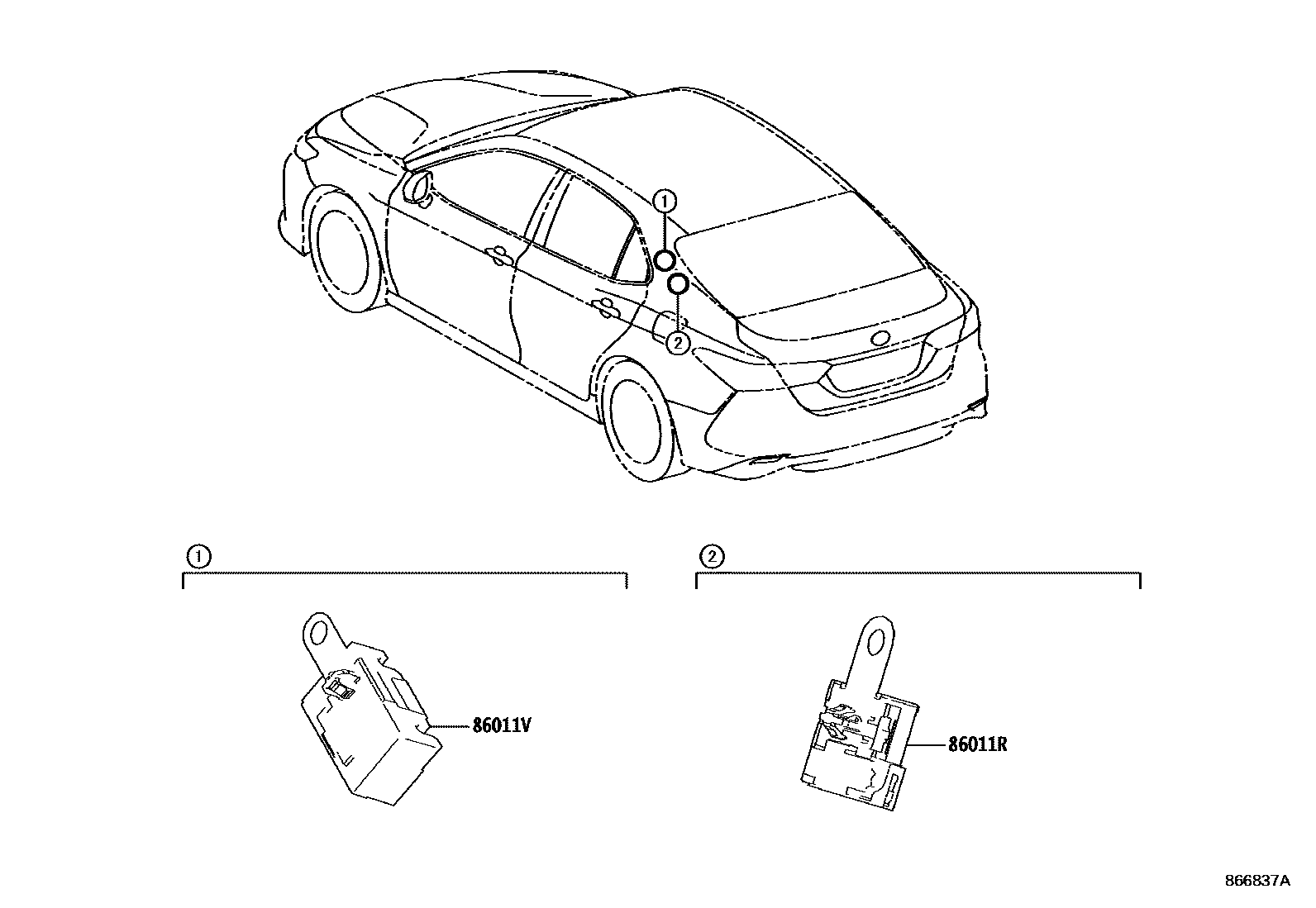

Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011R | radio settings phase modulator | 90980-04189 |
| 86011V | radio settings phase modulator | 90980-04204 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-33060 |
| 86211 | No. 1 radio bracket | 86211-33320 |
| 86212 | No. 2 radio bracket | 86212-33320 |
