Toyota CAMRY 空气囊 — Figure 8421

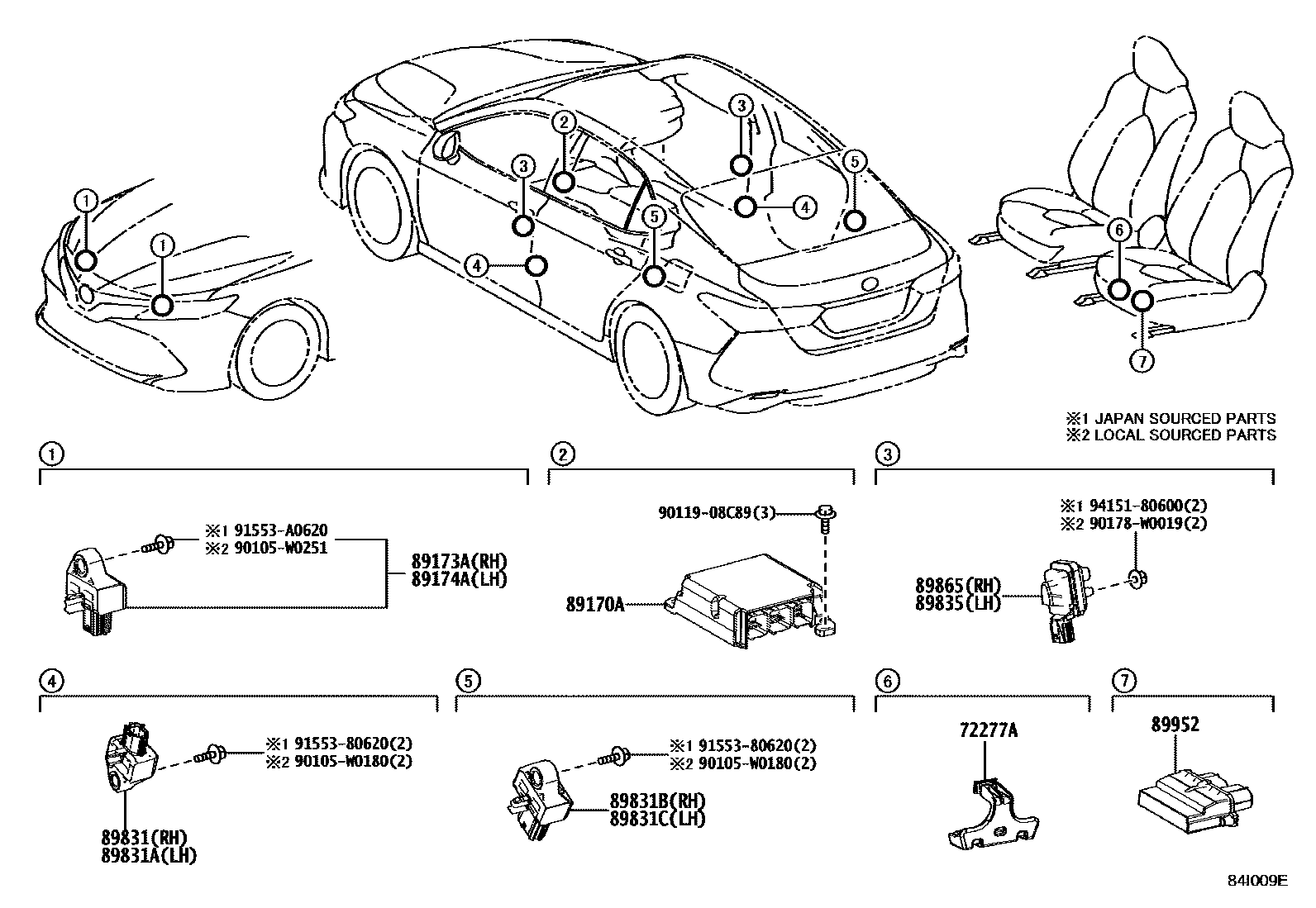

Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-47050 |
| 89170A | Air bag ECU assembly | 89170-33A80 · 89170-33A81 |
| 89173A | Right front air bag sensor | 89173-39525 |
| 89174A | Left front air bag sensor | 89173-39525 |
| 89831 | CAPTEUR, AIRBAG LAT, MD, NO.1 | 89831-33090 |
| 89831A | CAPTEUR, AIRBAG LAT, MG, NO.1 | 89831-33090 |
| 89831B | CAPTEUR, AIRBAG LAT, MD, NO.2 | 89831-33080 |
| 89831C | CAPTEUR, AIRBAG LAT, MG, NO.2 | 89831-33080 |
| 89835 | Left door side air bag sensor | 8983A-33010 |
| 89865 | Right door side air bag sensor | 8983A-33010 |
| 89952 | Occupant detection ECU | 89952-12030 · 89952-47010 |
