Toyota CAMRY ABS 和 VSC — Figure 8414

Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 1 images and 4 PNC and OE references.

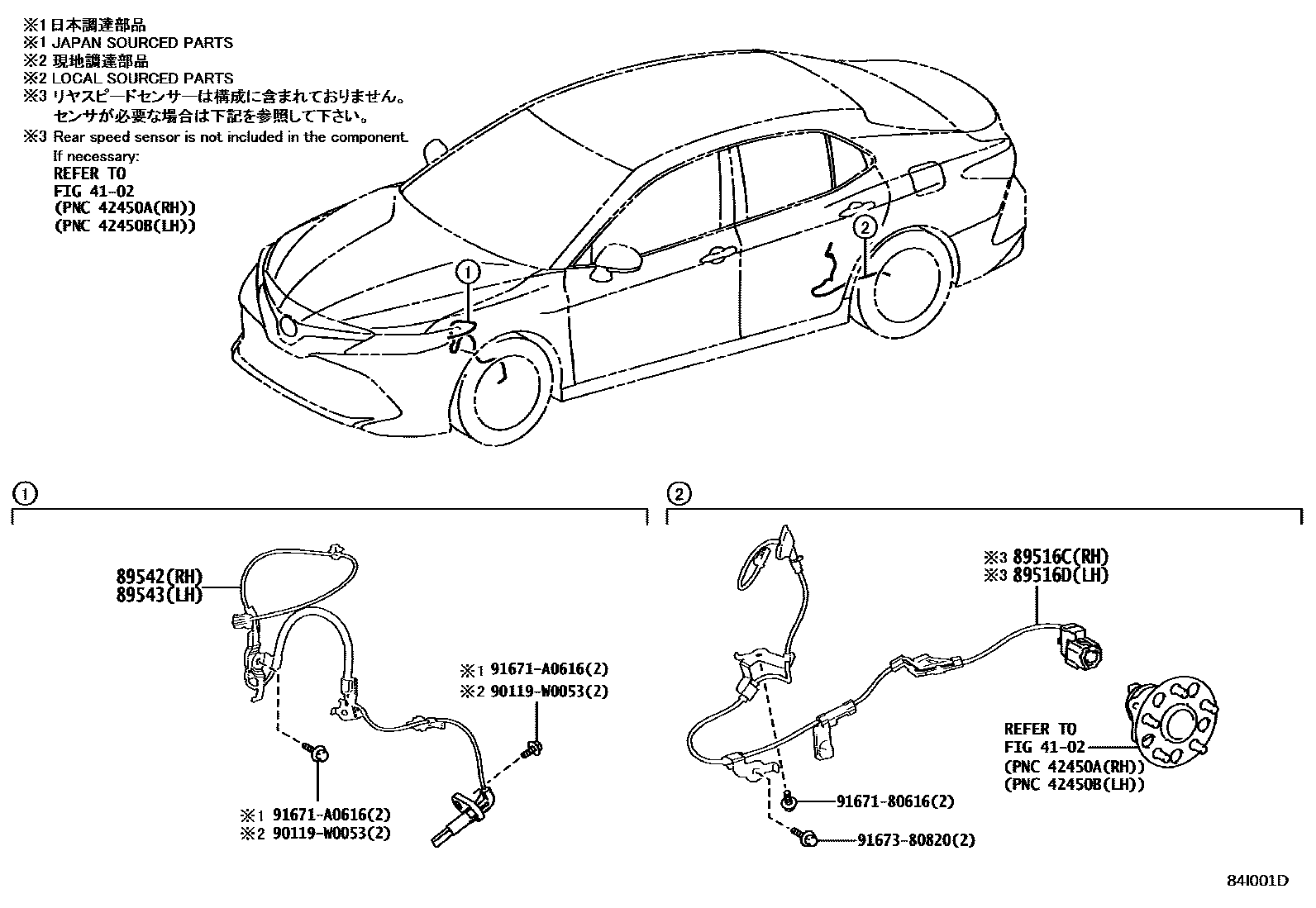

Toyota CAMRY ABS 和 VSC EPC diagram — 84I001D
ABS 和 VSC — 84I001D (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
89516CRight anti-skid control sensor harness89516-47110
89516DLeft anti-skid control sensor wiring harness89516-47120
89542Right front wheel speed sensor89542-33141
89543Left front wheel speed sensor89543-33131
