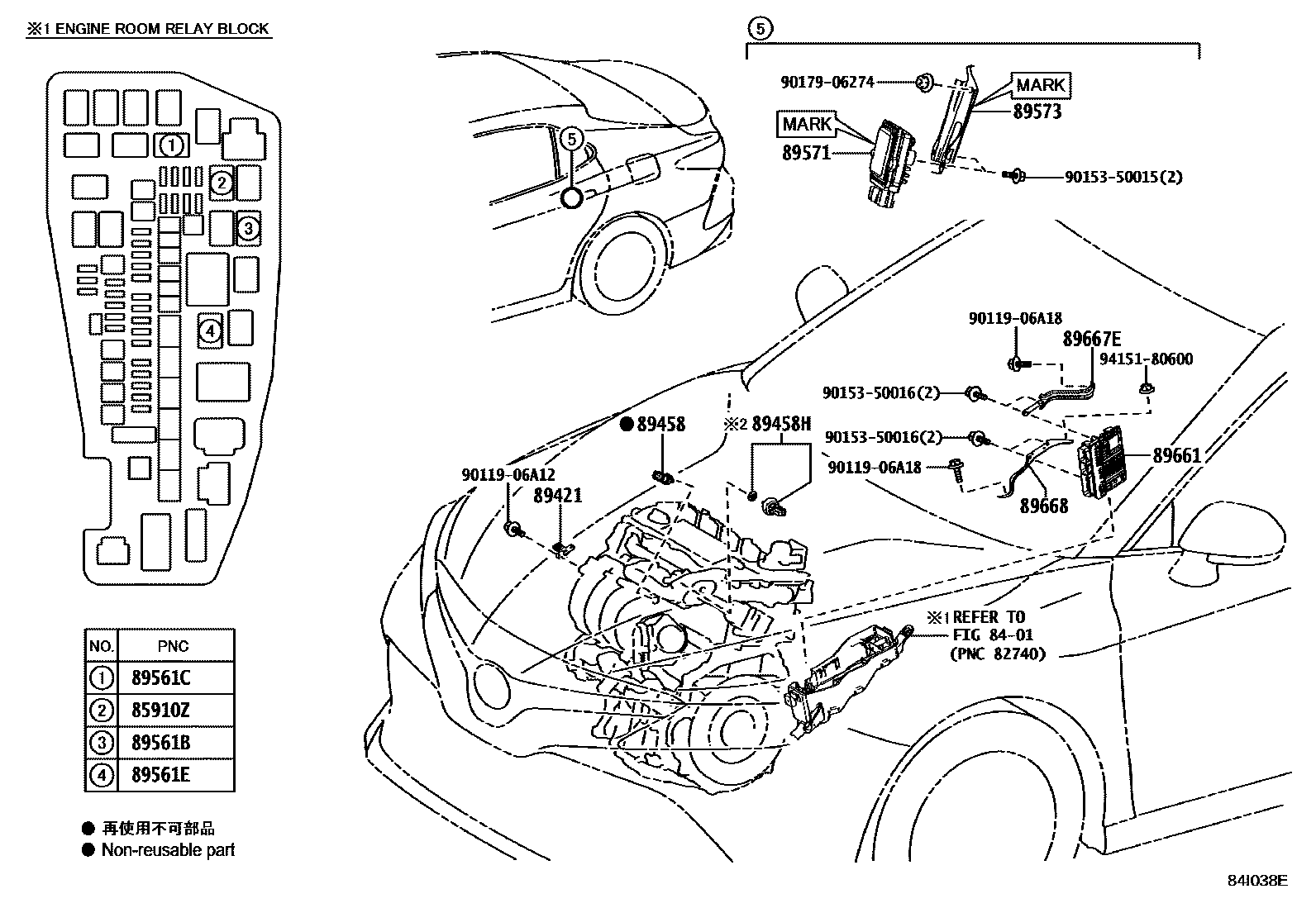

Toyota CAMRY 电子燃油喷射系统 — Figure 8404
Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910Z | Injection relay (for EFI) | 90987-02027 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-33010 |
| 89458 | fuel pressure sensor | 89458-33030 |
| 89458H | CAPTEUR, PRESSION ESSENCE, NO.2 | 89458-33041 |
| 89561B | RELAIS, PRINCIPAL INJECTION CARB ELEC, NO.1 | 90987-02027 |
| 89561C | RELAIS, PRINCIPAL INJECTION CARB ELEC, NO.2 | 90987-02027 |
| 89561E | RELAIS, PRINCIPAL INJECTION CARB ELEC, NO.3 | 90987-02027 |
| 89571 | Fuel pump control ECU | 89571-33030 |
| 89573 | Fuel pump control ECU bracket | 89573-33040 |
| 89661 | Engine control ECU | 89661-33T40 · 89661-33T41 · 89661-33T42 · 89661-33T43 · 89661-33T44 · 89661-33T45 · 89661-33T46 · 89661-33Y40 · 89661-33Y41 |
| 89667E | No. 1 engine control ECU bracket | 89667-33190 |
| 89668 | No. 2 engine control ECU bracket | 89668-33240 |
