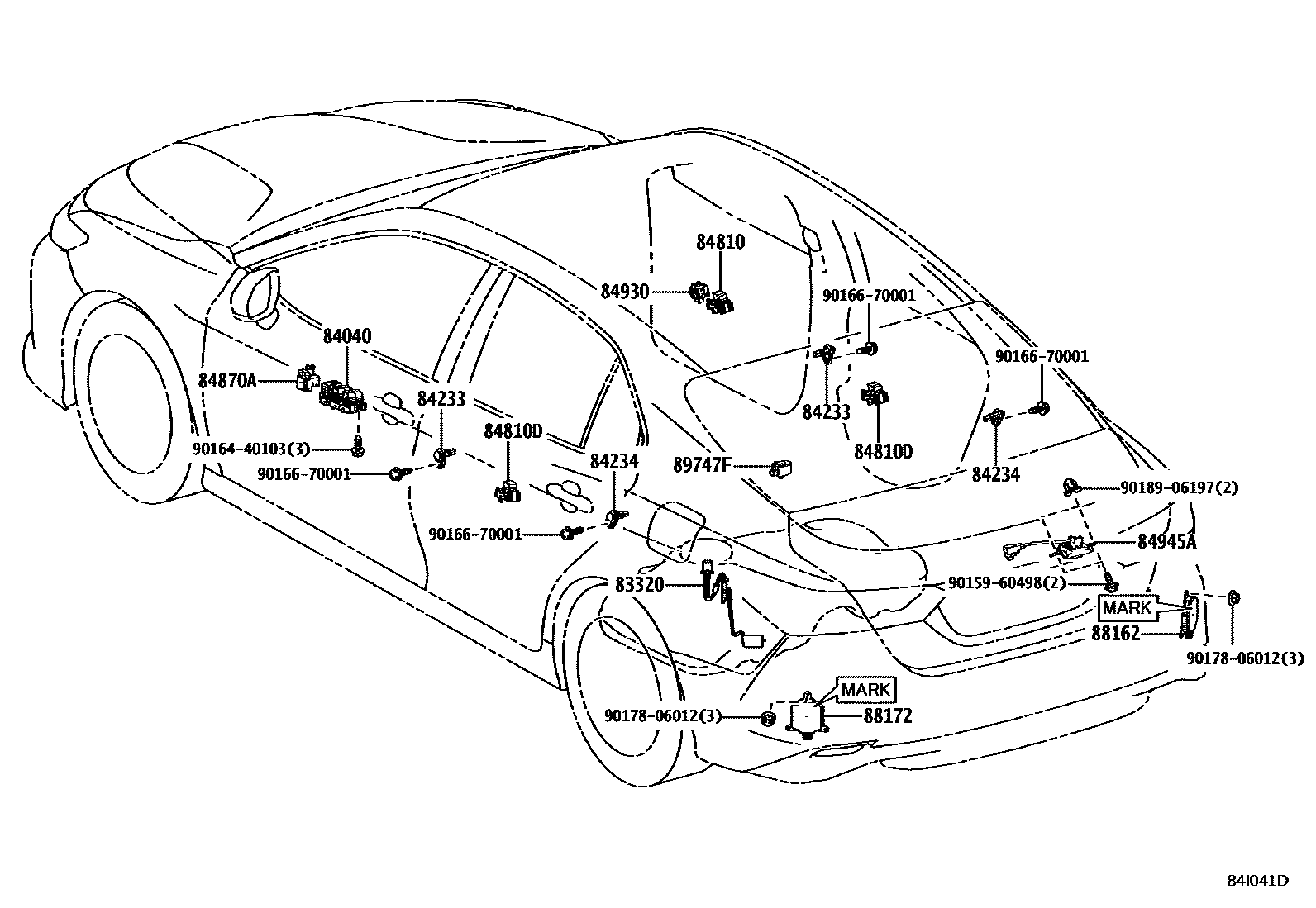

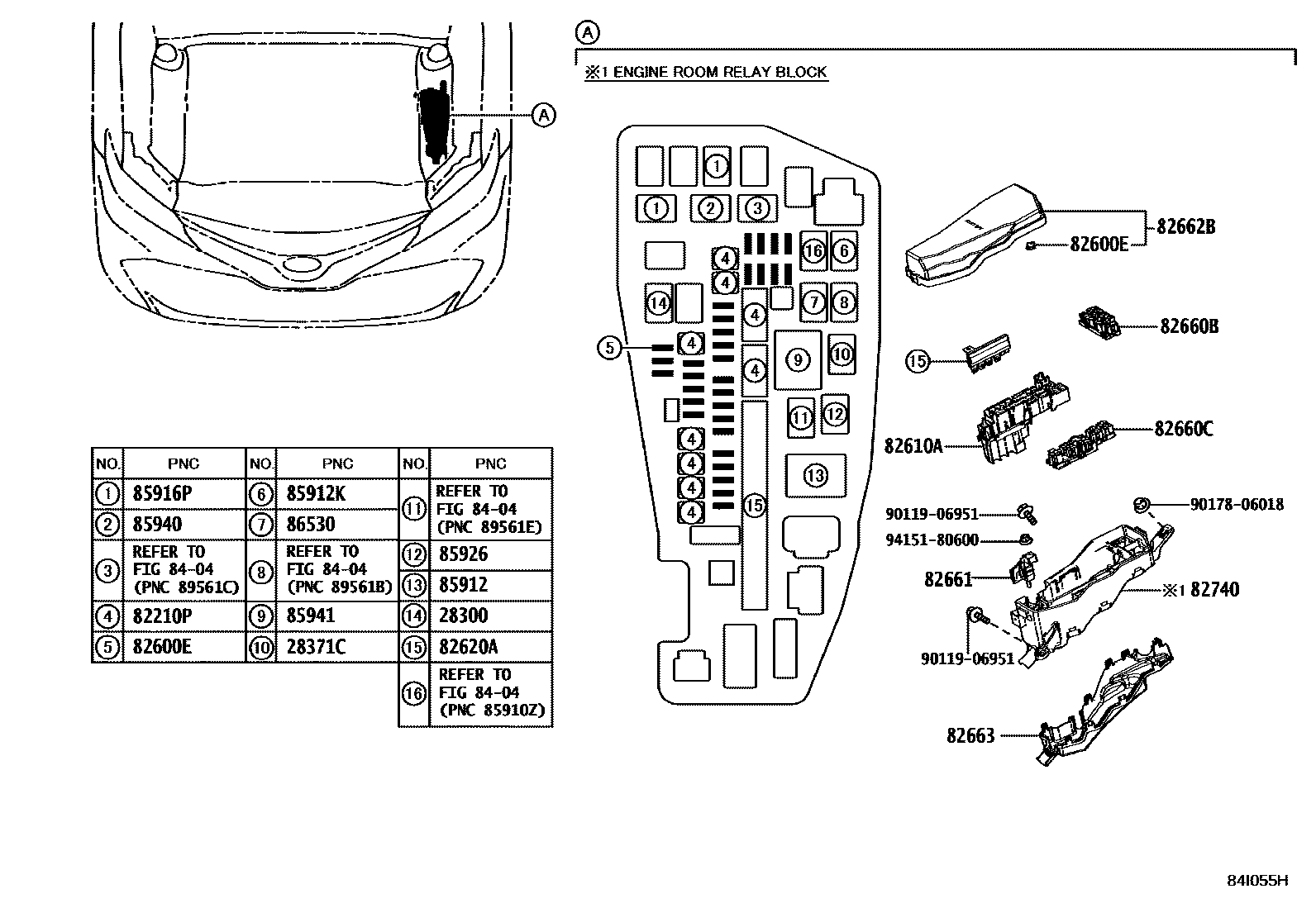

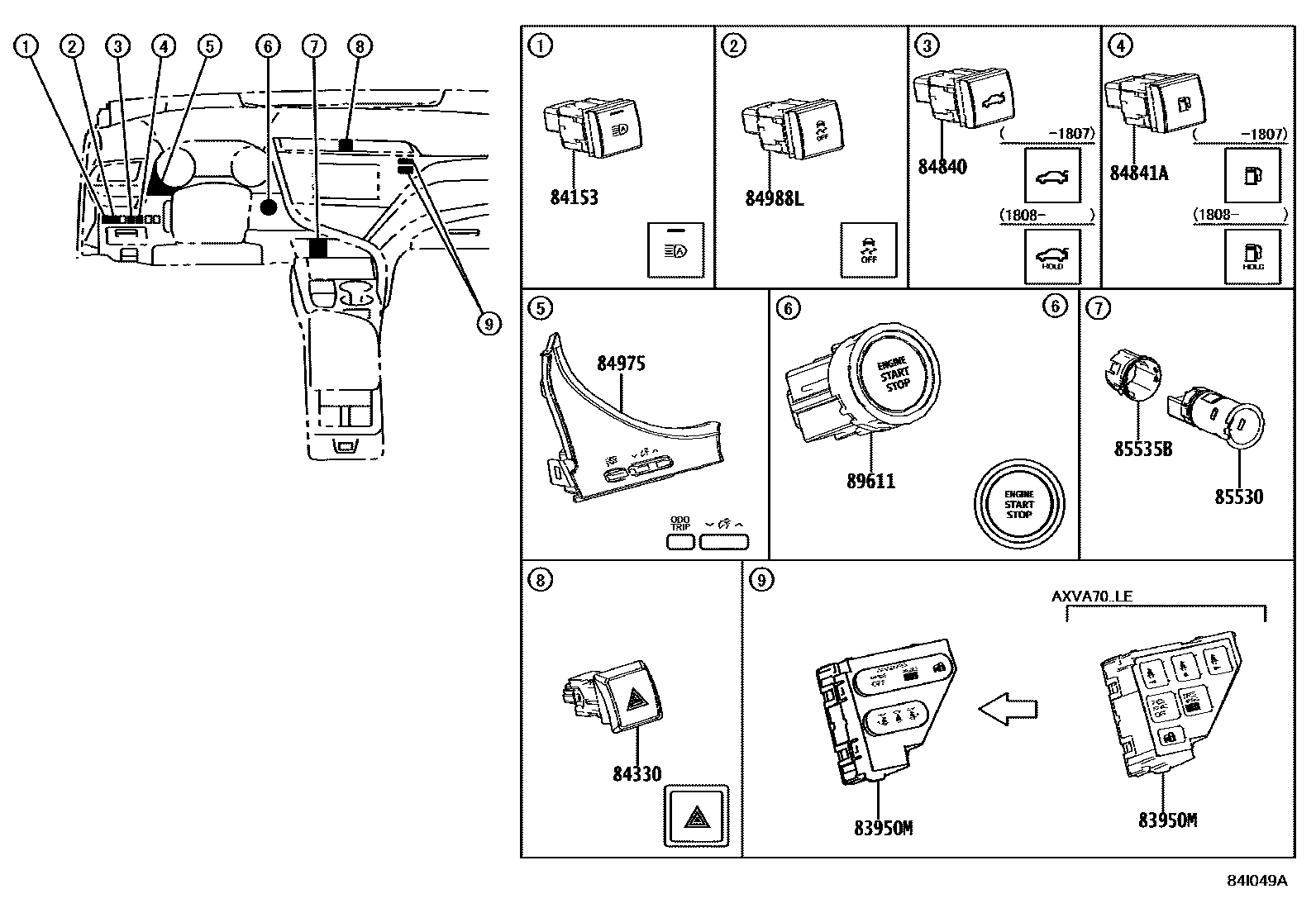

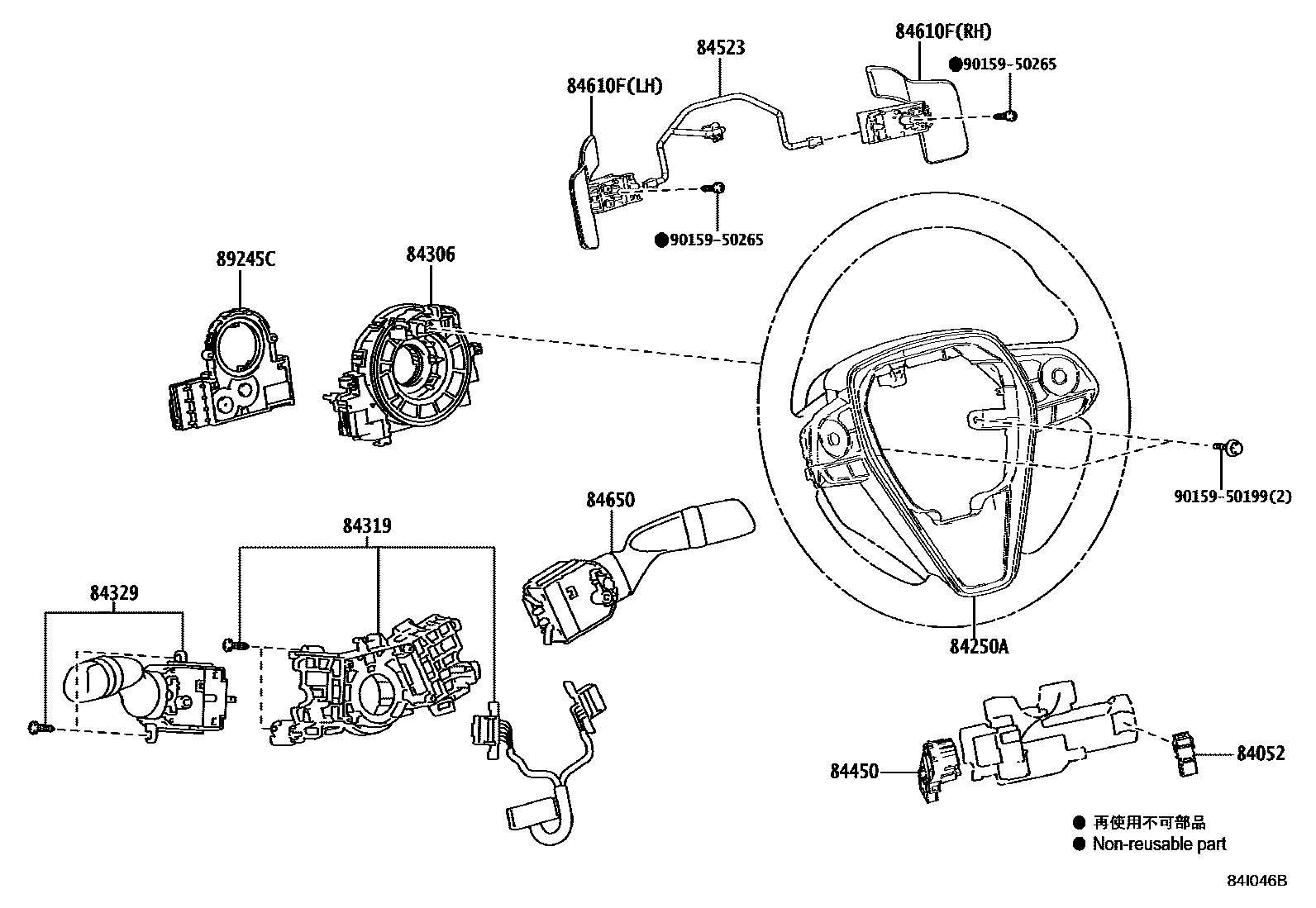

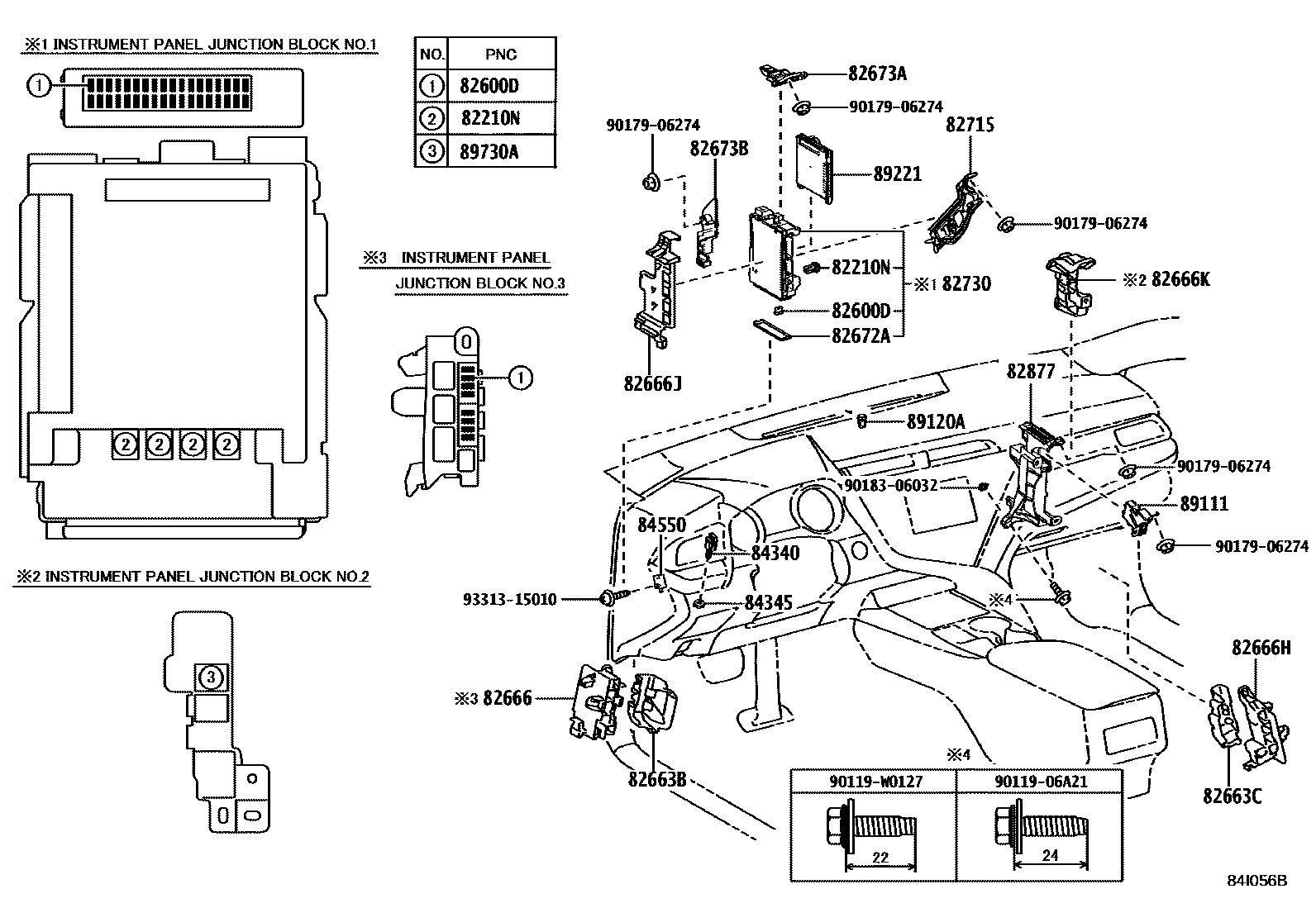

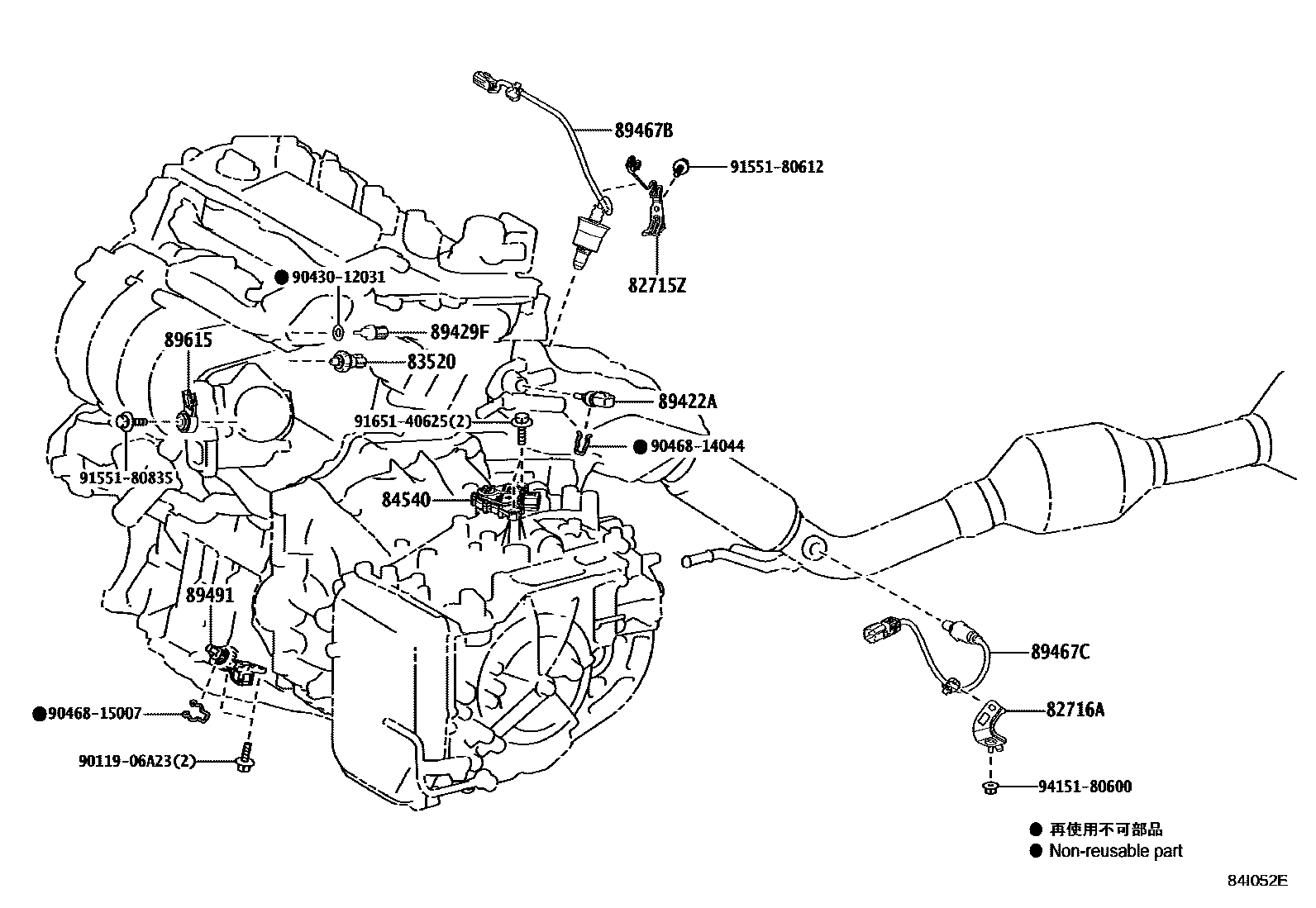

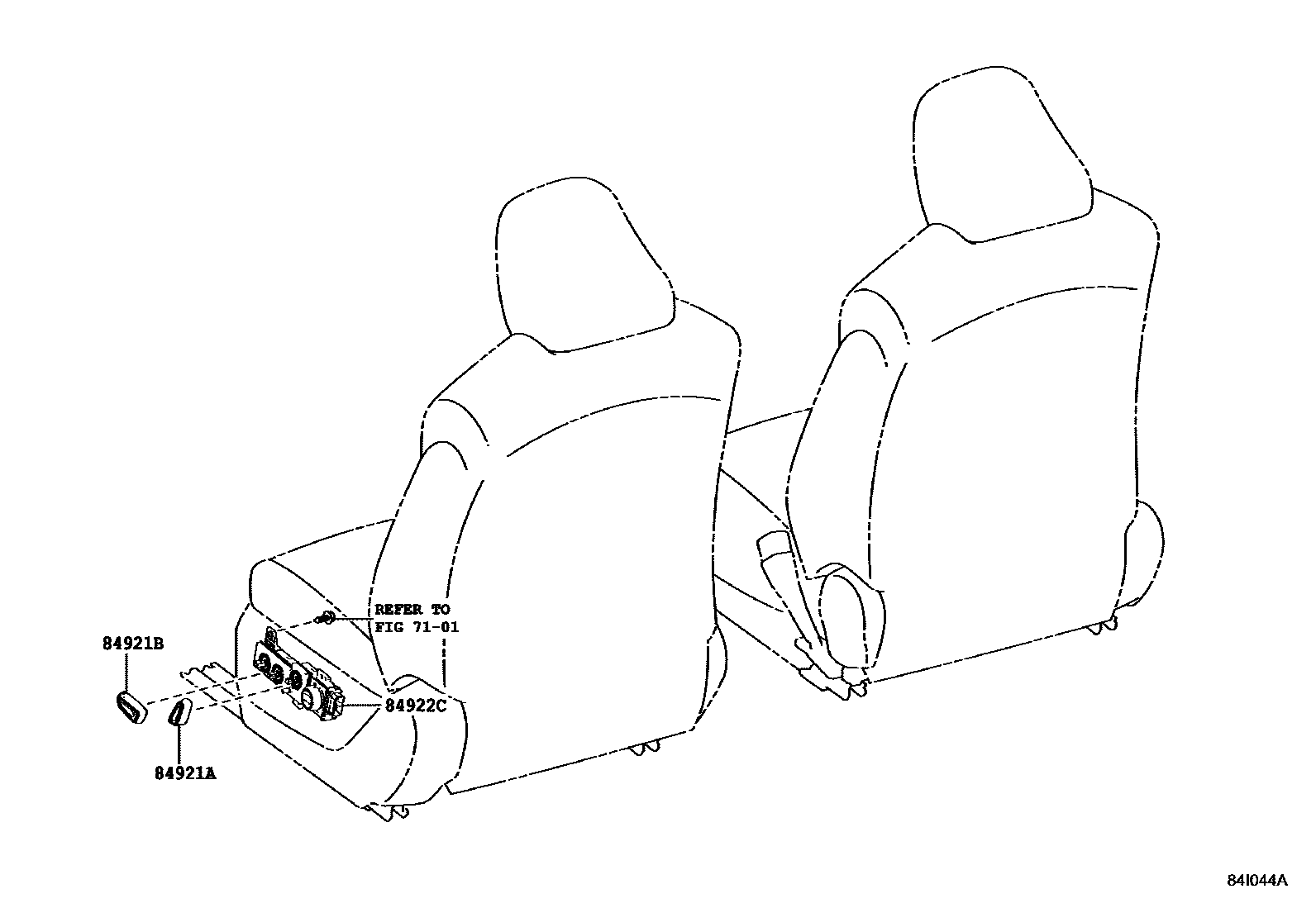

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 7 images and 81 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 |
| 28371C | No. 2 ignition relay | 90987-02027 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08296 · 90982-08298 · 90982-08300 · 90982-08302 · 90982-08303 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-33130 |
| 82620A | Fuse box assembly | 82620-33130 |
| 82660B | Relay assembly | 82660-33100 |
| 82660C | Relay assembly | 82660-33110 |
| 82661 | No. 1 relay box cover | 82661-33050 |
| 82662B | No. 2 relay box upper cover | 82662-33B20 · 82662-33B21 |
| 82663 | Relay box lower cover | 82663-33210 |
| 82663B | No. 3 relay box lower cover | 82663-33240 |
| 82663C | No. 4 relay box lower cover | 82663-33250 |
| 82666 | Connector holder | 82666-33570 |
| 82666H | Connector holder No. 2 | 82666-33580 |
| 82666J | No. 3 connector holder | 82666-33630 |
| 82666K | No. 4 connector holder | 82666-33640 |
| 82672A | Junction box cover | 82672-33390 · 82672-33400 |
| 82673A | Junction box bracket | 82673-33120 |
| 82673B | Junction box bracket | 82673-33150 |
| 82715 | Wire harness clamp bracket | 82715-33Q20 |
| 82715Z | SUPPORT, COLLIER DE FAISCEAU DE CABLAGE | 82715-33K10 · 82715-33K11 |
| 82716A | SUPPORT, COLLIER DE FAISCEAU DE CABLAGE | 82715-33K30 |
| 82730 | Instrument panel junction box assembly | 82730-33G20 · 82730-33Q10 |
| 82740 | Engine room relay box assembly | 82740-33080 |
| 82877 | Right ECU integrated box | 82877-33030 |
| 83320 | Fuel gauge sensor assembly | 83320-33150 |
| 83520 | Oil pressure gauge sensor assembly | 83520-33010 |
| 83950M | Warning light assembly | 83950-33080 · 83950-33090 |
| 84040 | Multi-channel network main switch assembly | 84040-33170 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84153 | Automatic high beam switch | 84153-33040 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84306 | Spiral cable sub-assembly | 84308-11010 |
| 84319 | Steering wheel switch housing | 84319-11010 |
| 84329 | turn signal switch | 84329-33080 |
| 84330 | Hazard warning signal switch assembly | 84332-33100 |
| 84340 | brake light switch assembly | 84340-49075 · 84340-49085 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-33040 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-33020 |
| 84550 | Parking brake switch assembly | 84550-30080 |
| 84610F | Transmission shift switch assembly | 84610-33010 · 84610-33011 · 84610-33020 · 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-33620 |
| 84810 | Electric window lift switch assembly | 84810-47010 |
| 84810D | Rear electric window lift switch assembly | 84810-47010 |
| 84840 | Trunk door opening switch assembly | 84840-33120 · 84840-33121 |
| 84841A | Fuel filler cap opener switch | 84841-33040 · 84841-33041 |
| 84870A | Exterior rearview mirror switch assembly | 84872-47030 |
| 84930 | Door control switch assembly | 84930-47030 |
| 84945A | COMMANDE, CLE ELECTRIQUE COMP BAGAGES | 84945-33040 |
| 84975 | trip odometer switch | 84975-33040 |
| 84988L | VSC off switch | 84988-33100 |
| 85530 | No. 1 power socket assembly | 85530-52010 |
| 85535B | No. 1 power outlet cover | 85535-33100 |
| 85912 | defogger relay | 90987-04010 |
| 85912K | RELAIS, VVT | 90987-02027 |
| 85916P | headlight relay | 90987-02027 |
| 85926 | Headlight dimmer relay | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 90987-02027 |
| 85941 | windshield washer relay | 90987-02025 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 88162 | Blind spot monitor right sensor | 88162-33030 · 88162-33120 |
| 88172 | Blind spot monitor left sensor | 88162-33030 · 88162-33120 |
| 89111 | Network gateway ECU | 89100-33020 · 89100-33021 · 89111-12030 · 89111-33180 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221 | Multi-channel network body ECU | 89220-33P90 · 89220-33Q00 |
| 89245C | steering sensor | 8924B-33040 |
| 89422A | water temperature sensor | 89422-33040 |
| 89429F | temperature sensor | 89429-12010 |
| 89467B | air fuel ratio sensor | 89467-33290 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-33210 |
| 89491 | Engine oil level sensor | 89491-33050 · 89491-33051 |
| 89611 | push button start switch | 89611-42012 |
| 89615 | knock control sensor | 89615-20090 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
