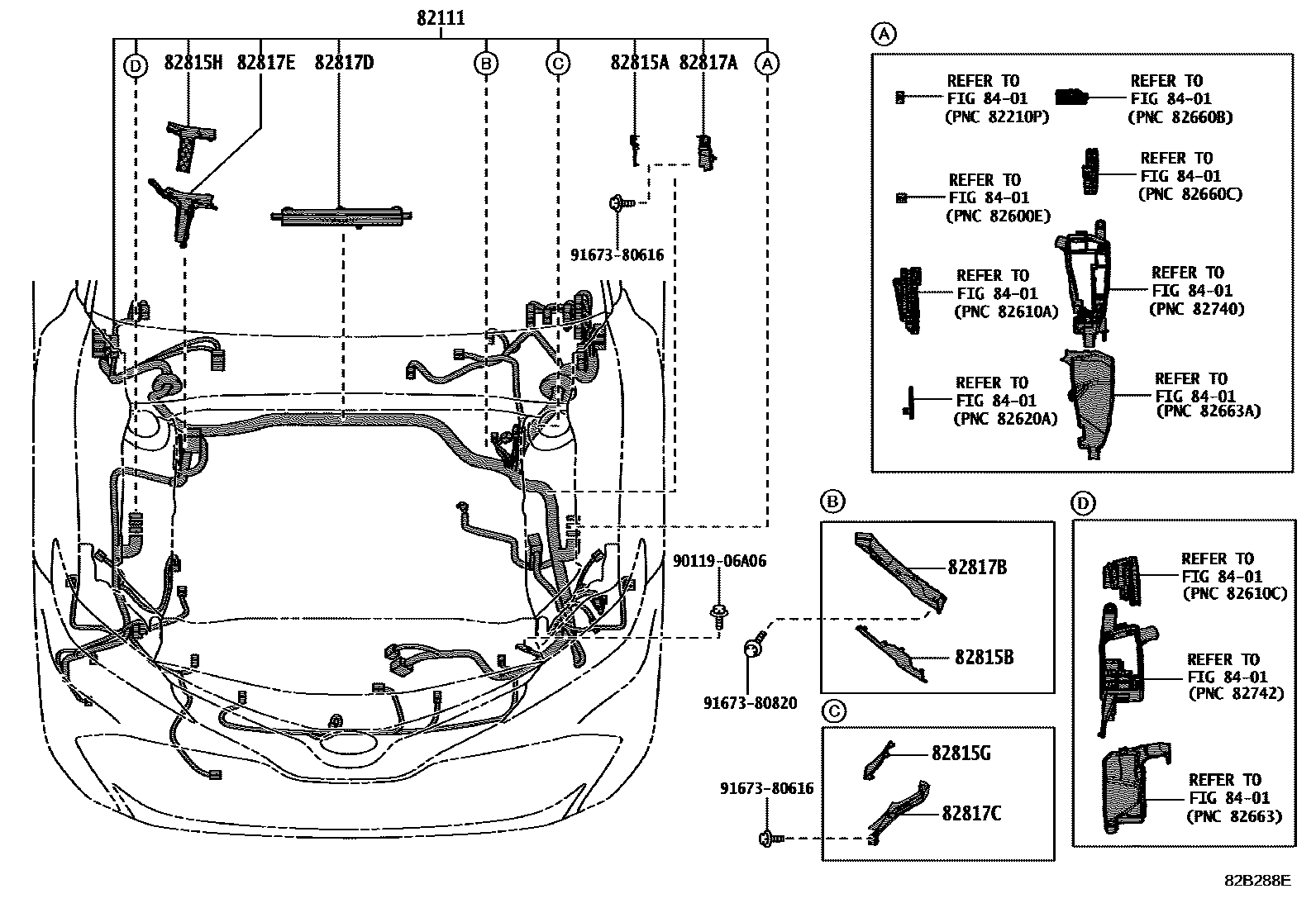

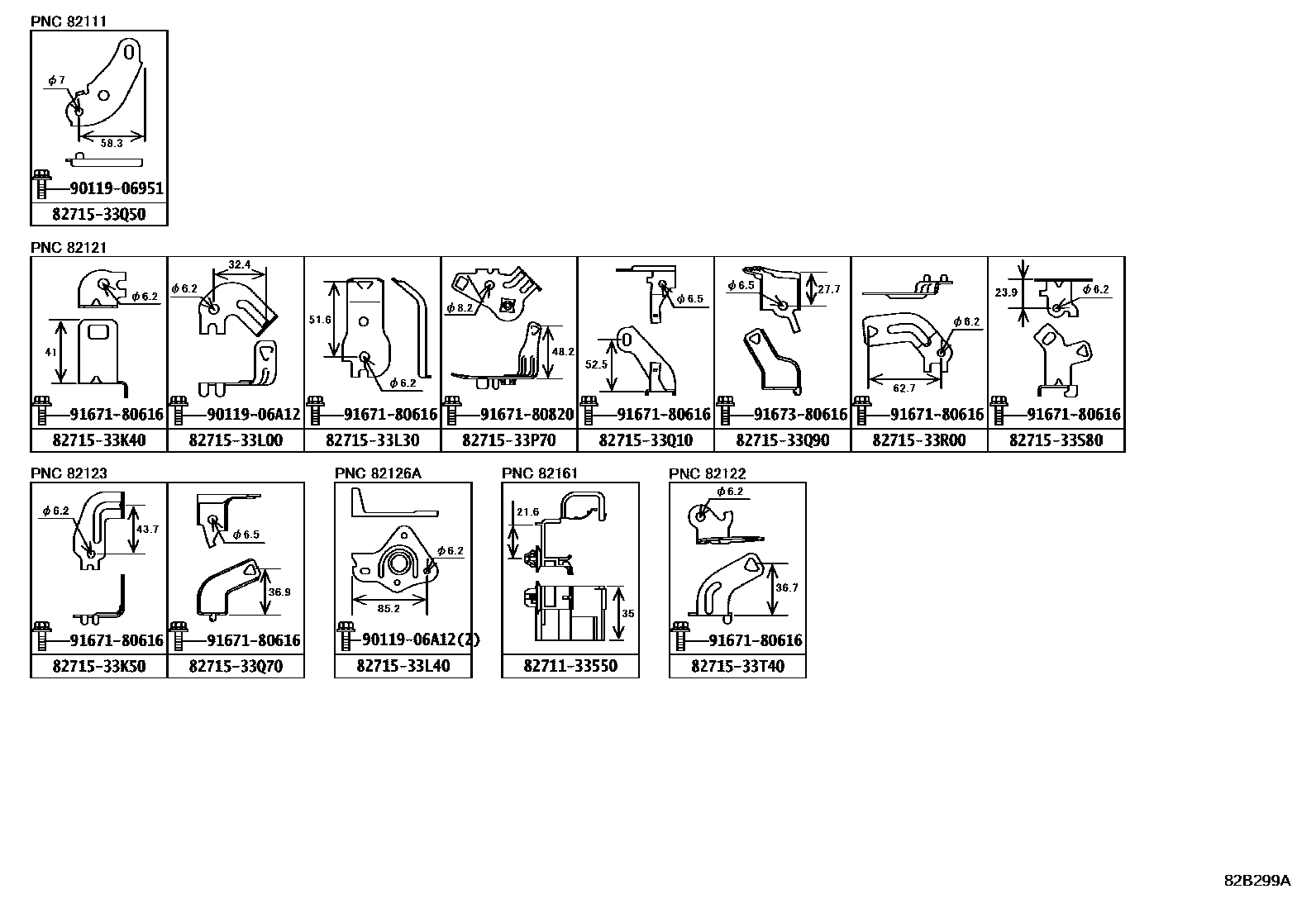

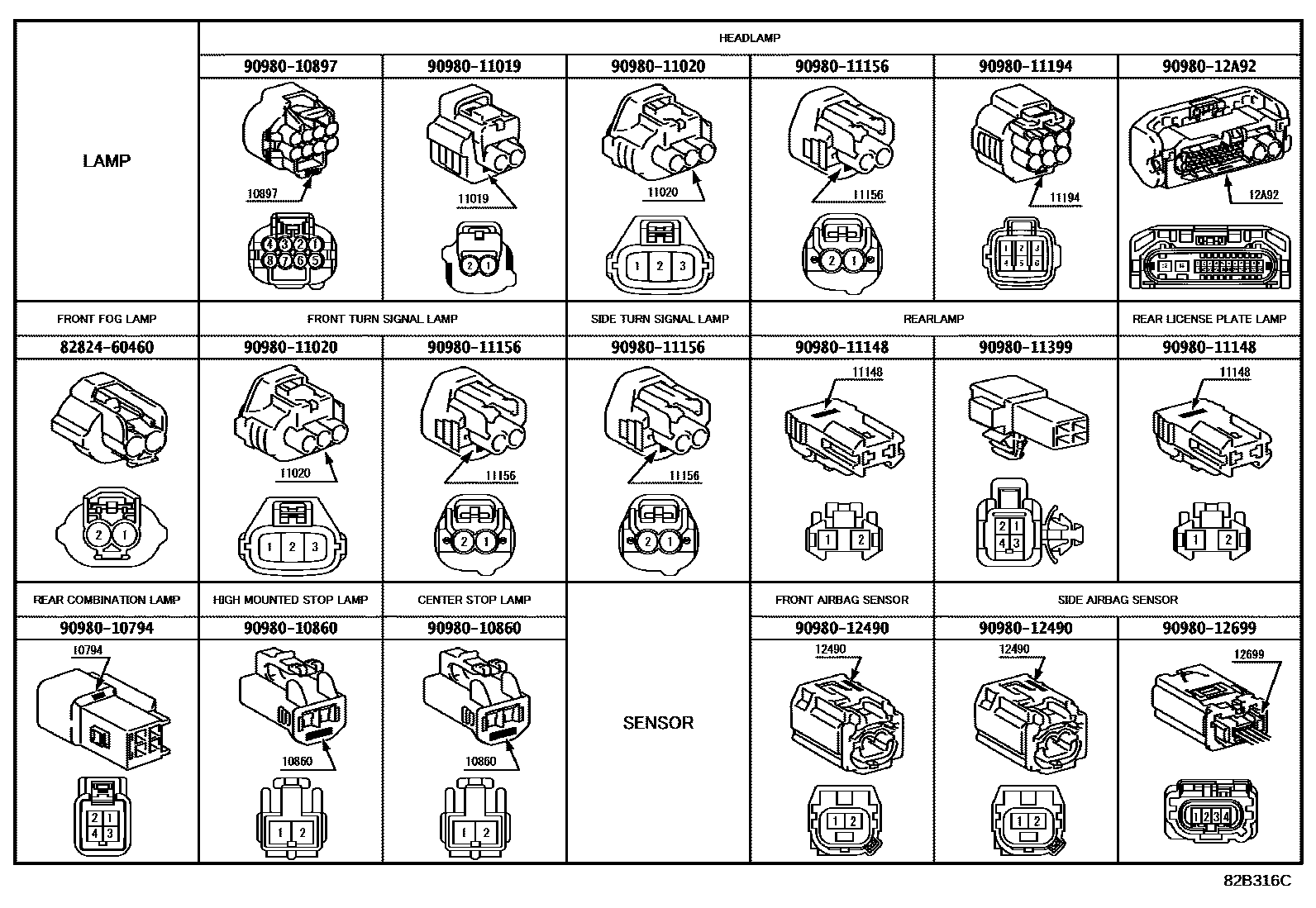

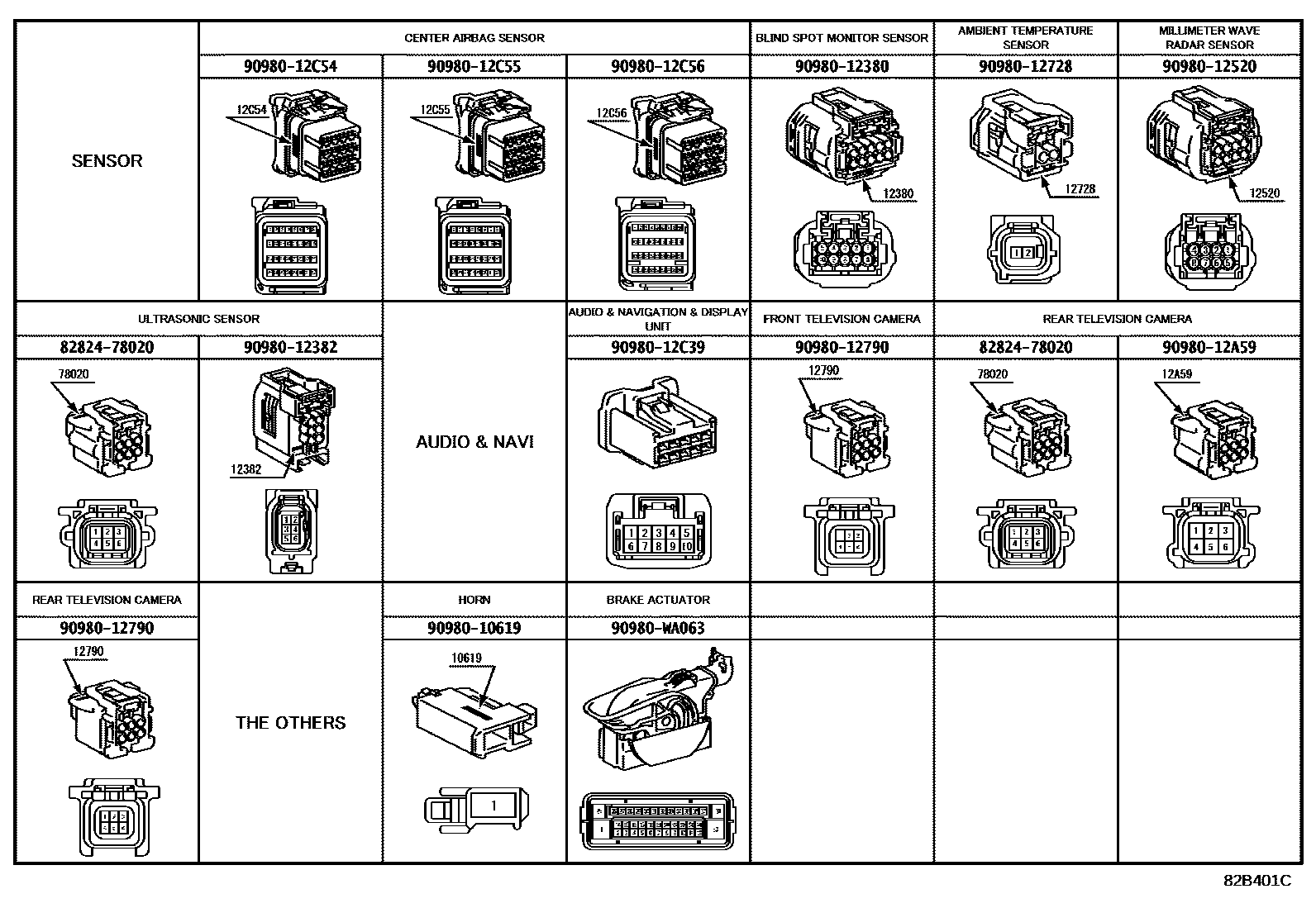

Toyota CAMRY 线束和卡夹 — Figure 8202
Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 10 images and 75 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

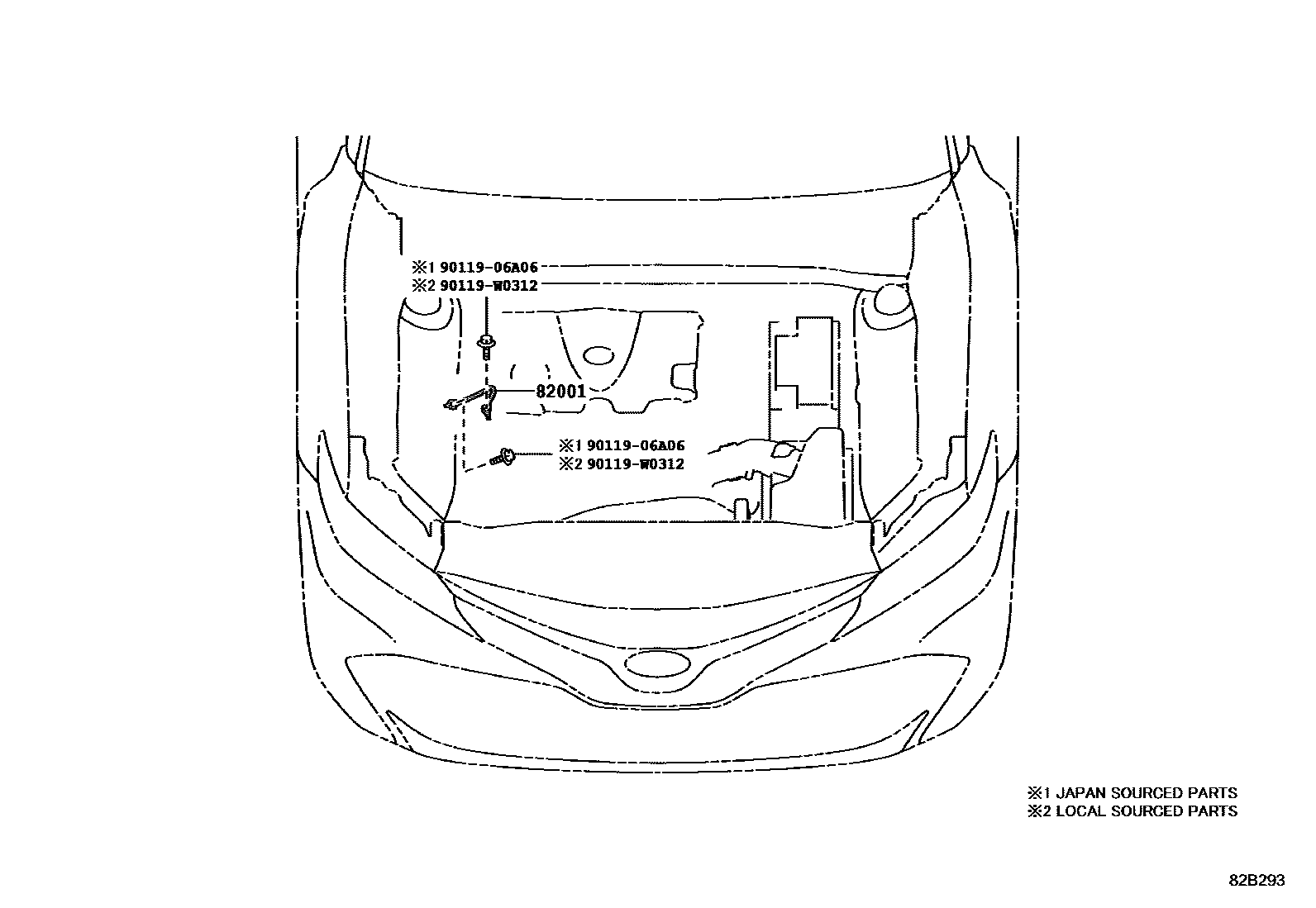

| 82001 | Connection cable No. 1 | 82286-33020 |
| 82111 | Engine room main wiring harness | 82111-3TE40 · 82111-3TE41 · 82111-3TE50 · 82111-3TE51 · 82111-3TE60 · 82111-3TE61 · 82111-3TE80 · 82111-3TE81 |

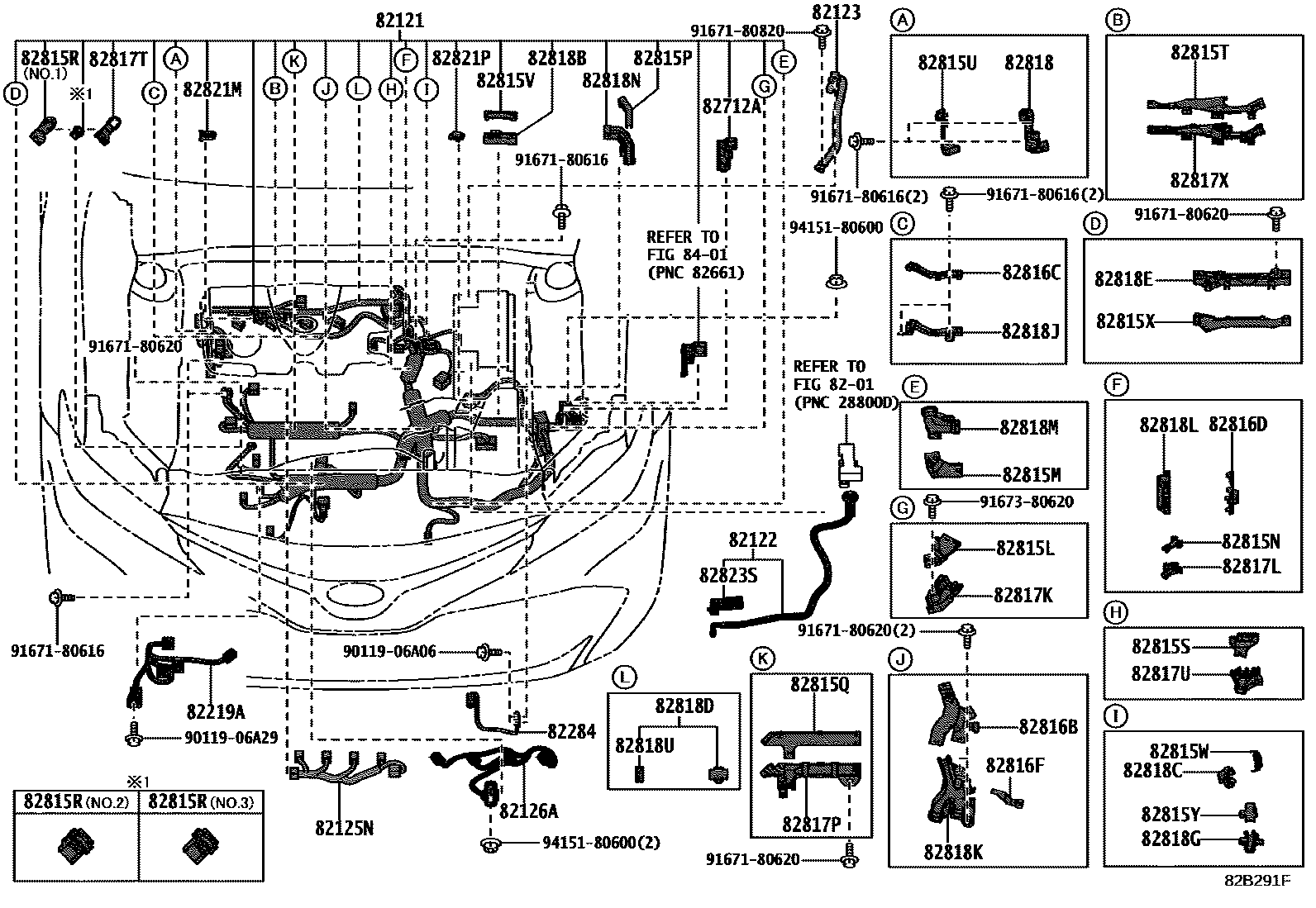

| 82121 | Engine wiring harness | 82121-33G60 |
| 82122 | Engine No. 2 wiring harness | 82122-33160 |
| 82123 | Engine No. 3 wiring harness | 82123-33080 |
| 82125N | Engine No. 5 wiring harness | 82125-33220 |
| 82126A | CABLE, MOTEUR, NO.6 | 82126-33050 |

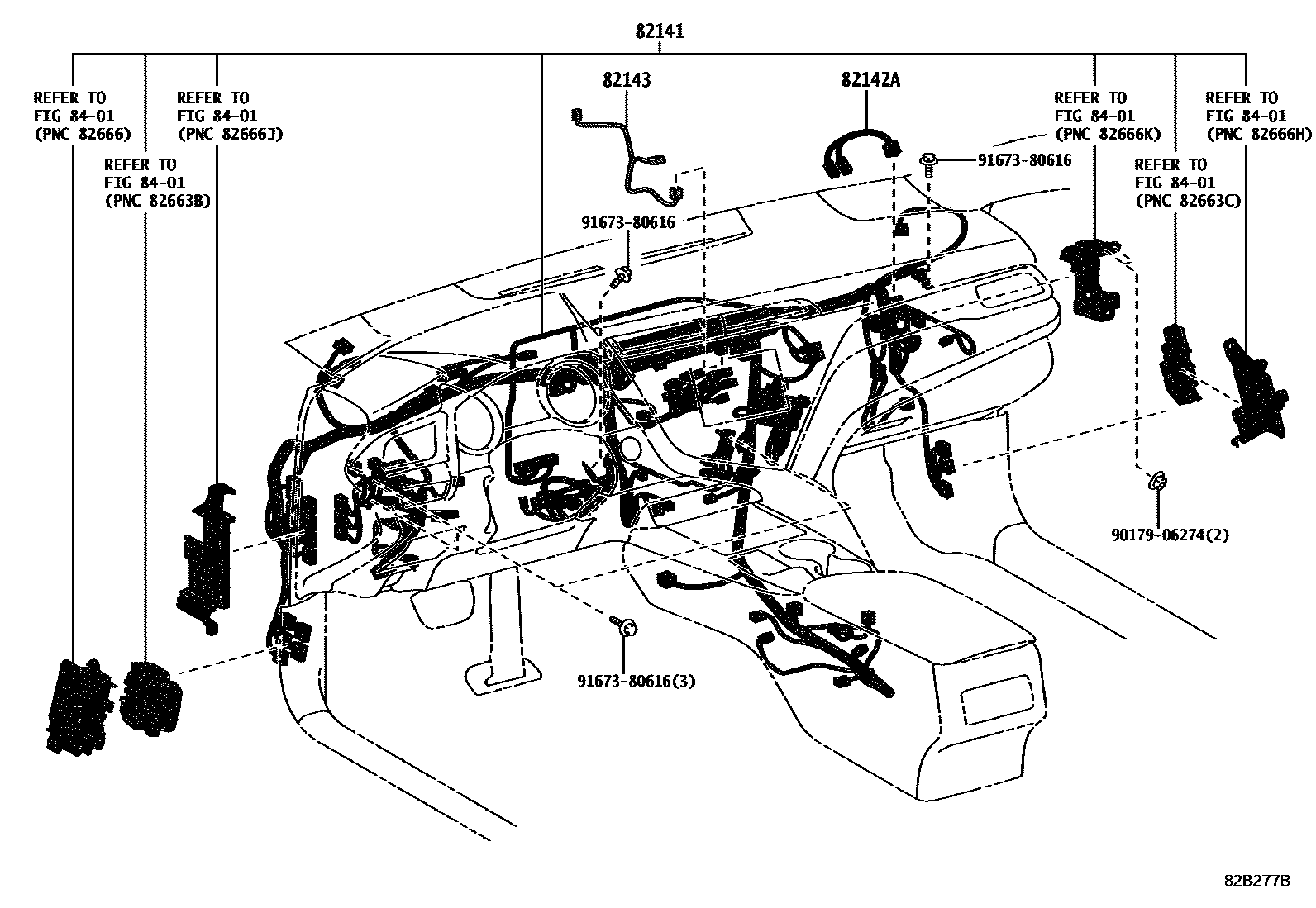

| 82141 | Dashboard wiring harness | 82141-3YE10 · 82141-3YE11 · 82141-3YE30 · 82141-3YE31 · 82141-3YE40 · 82141-3YE41 · 82141-3YF10 · 82141-3YF11 · 82141-3YF20 · 82141-3YF21 · 82141-3YF30 · 82141-3YF31 · 82141-3YF40 · 82141-3YF41 · 82141-3YF60 · 82141-3YF61 · 82141-3YF80 · 82141-3YF81 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-47031 · 82140-47032 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-33090 |
| 82151 | Right front door wiring harness | 82151-33G80 · 82151-33G81 · 82151-33J20 · 82151-33J30 · 82151-33J31 |
| 82152 | Left front door wiring harness | 82152-33J30 · 82152-33J31 · 82152-33J70 · 82152-33J80 · 82152-33J81 |
| 82153A | Right rear door wiring harness | 82153-33420 · 82153-33421 |
| 82154A | Left rear door wiring harness | 82154-33350 · 82154-33351 |

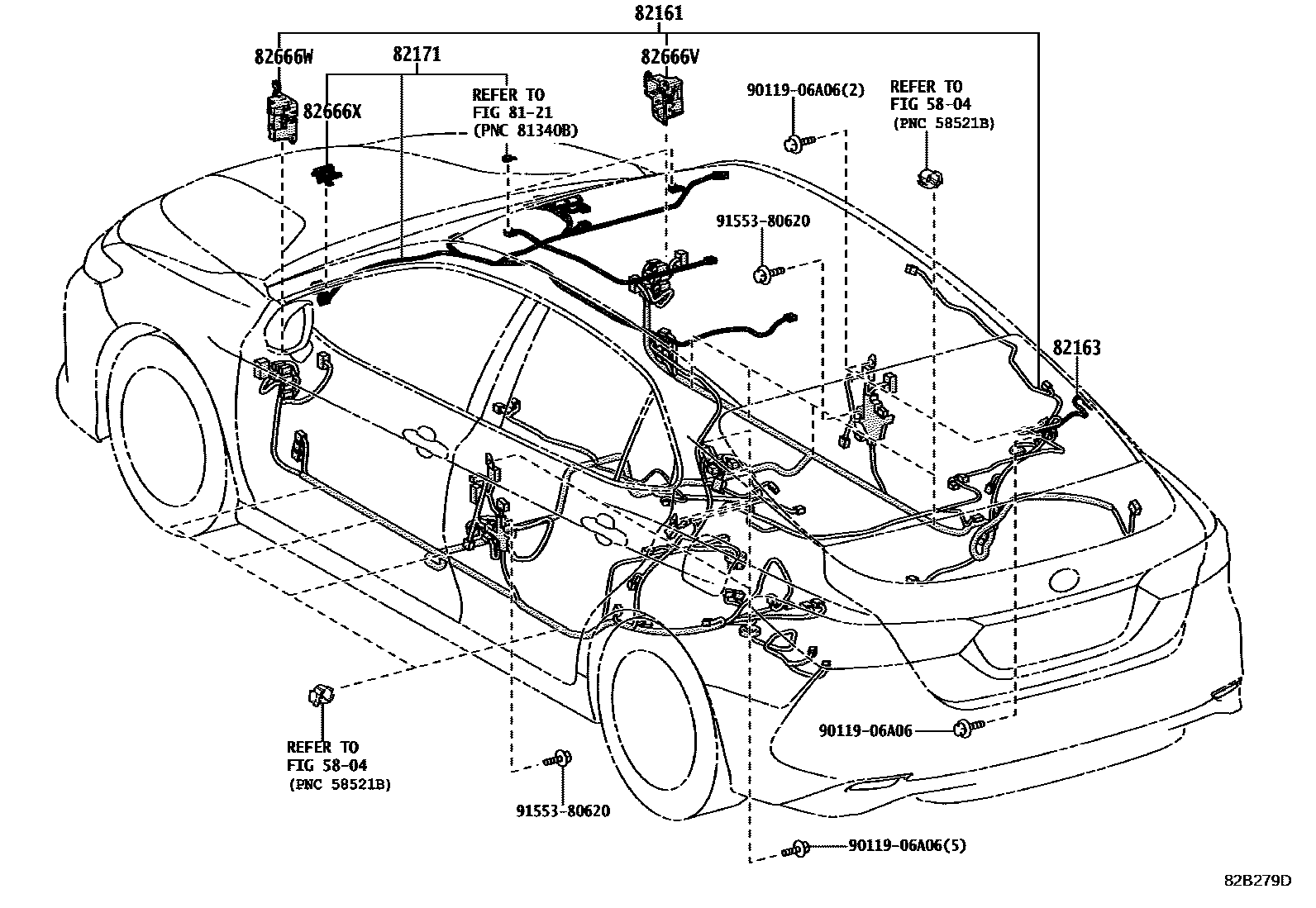

| 82161 | floor wiring harness | 82161-3TE80 · 82161-3TE81 · 82161-3TF50 · 82161-3TF51 · 82161-3TF60 · 82161-3TF61 · 82161-3TJ00 · 82161-3TJ01 · 82161-3TJ10 · 82161-3TJ11 · 82161-3TJ20 · 82161-3TJ21 · 82161-3TJ30 · 82161-3TJ31 |
| 82163 | Floor wiring harness No. 3 | 82163-33140 |
| 82171 | Roof No. 1 wiring harness | 82171-33N50 · 82171-33N51 · 82171-33N80 · 82171-33N81 · 82171-33P00 · 82171-33P01 · 82171-33P10 · 82171-33P11 · 82171-33P80 · 82171-33P81 · 82171-33Q00 · 82171-33Q01 · 82171-33Q10 · 82171-33Q11 · 82171-33Q30 · 82171-33Q31 |
| 82181 | Luggage No. 1 wiring harness | 82181-33E60 · 82181-33E61 · 82181-33F10 · 82181-33F11 · 82181-33F90 · 82181-33F91 |

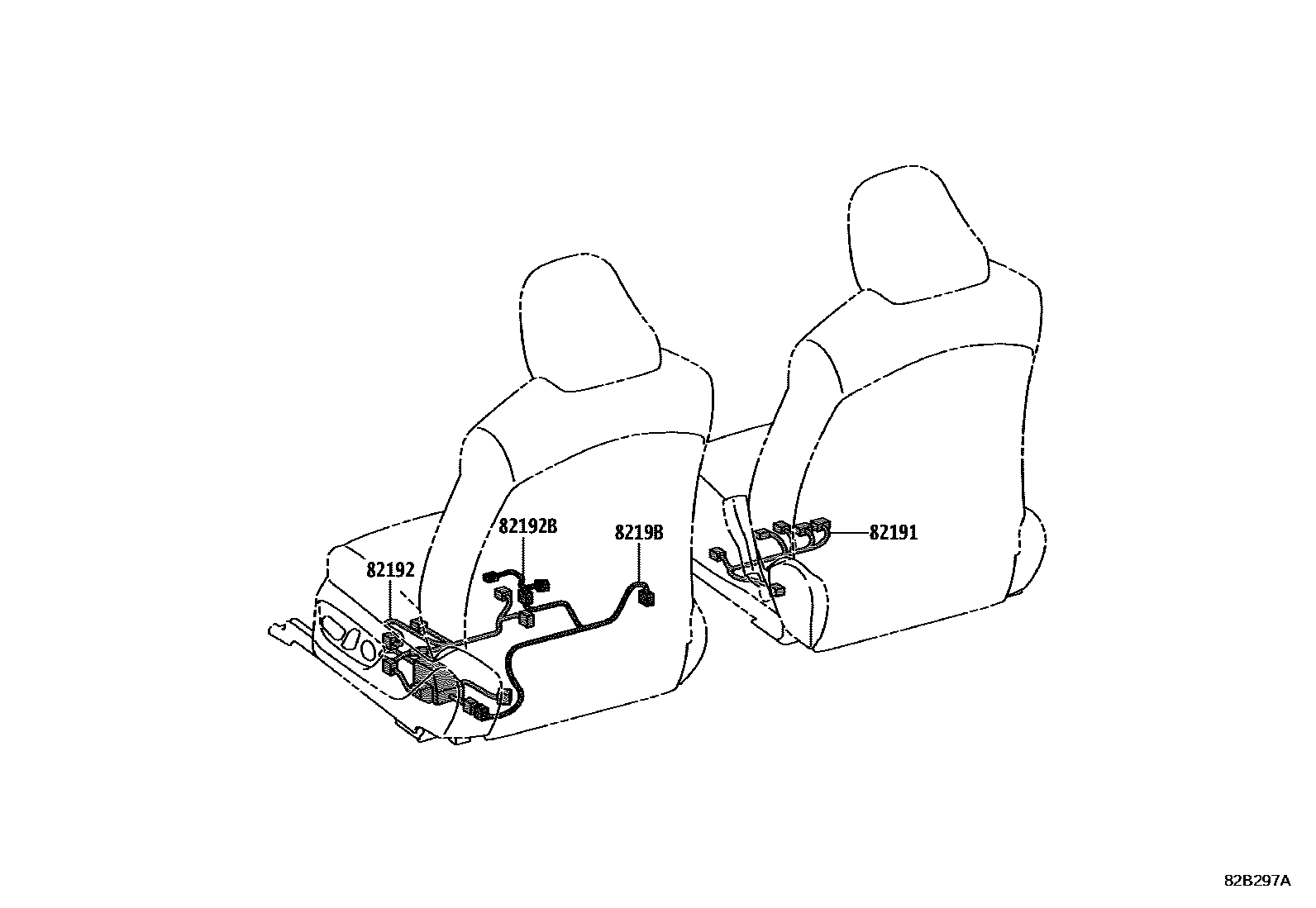

| 82191 | Front right seat wiring harness | 82191-33D20 |
| 82192 | Front left seat wiring harness | 82192-33A80 |
| 82192B | Wire harness No. 2, left side of front seat | 82192-11080 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-47060 |
| 82219A | sensor harness | 82219-33140 |
| 82284 | Ground wire | 82284-33140 |
| 82666V | No. 15 connector holder | 82666-33650 |
| 82666W | No. 16 connector socket | 82666-33660 |
| 82666X | No. 17 connector holder | 82666-33500 |
| 82712A | Wire harness bracket | 82712-33160 |
| 82815A | Wiring harness protector cover | 82815-33E00 |
| 82815B | Wiring harness protector cover | 82815-33E10 |
| 82815G | Wiring harness protector cover | 82815-33E20 |
| 82815H | Wiring harness protector cover | 82815-33K50 |
| 82815L | No. 9 wire harness protector cover | 82815-33C60 |
| 82815M | No. 10 wire harness protector cover | 82815-33F20 |
| 82815N | No. 11 wire harness protector cover | 82815-33J60 |
| 82815P | No. 12 wire harness protector cover | 82815-33N00 |
| 82815Q | No. 13 wire harness protector cover | 82815-33J50 |
| 82815R | No. 14 wire harness protector cover | 82815-33J10 · 82815-33K90 · 82815-33L00 |
| 82815S | No. 15 wire harness protector cover | 82815-33F30 |
| 82815T | No. 16 wire harness protector cover | 82815-33G90 |
| 82815U | No. 17 wire harness protector cover | 82815-33J00 |
| 82815V | No. 1 wire harness protector cover | 82815-33K60 |
| 82815W | No. 2 wire harness protector cover | 82815-33J90 |
| 82815X | No. 3 wire harness protector cover | 82815-33G80 |
| 82815Y | COUV., PROTECTEUR FAIS. FILS ELEC., NO.4 | 82815-33J80 |
| 82816B | COUV., PROTECTEUR FAIS. FILS ELEC., NO.1 | 82815-33F10 |
| 82816C | COUV., PROTECTEUR FAIS. FILS ELEC., NO.2 | 82815-33E80 |
| 82816D | COUV., PROTECTEUR FAIS. FILS ELEC., NO.3 | 82815-33F40 |
| 82816F | CACHE, PROTECTEUR FAISCEAU CABLAGE, NO.4 | 82815-33L60 |
| 82817A | No. 2 wire harness protection device | 82817-33N30 |
| 82817B | No. 3 wire harness protection device | 82817-33N40 |
| 82817C | No. 4 wire harness protection device | 82817-33N60 |
| 82817D | No. 5 wire harness protection device | 82817-33Y20 |
| 82817E | No. 6 wire harness protection device | 82817-33Y30 |
| 82817K | No. 10 wire harness protection device | 82817-33V40 |
| 82817L | No. 11 wire harness protection device | 82817-33X30 |
| 82817P | No. 14 wire harness protection device | 82817-33T20 |
| 82817T | No. 15 wire harness protection device | 82817-33S70 |
| 82817U | No. 16 wire harness protection device | 82817-33Q90 |
| 82817X | No. 17 wire harness protection device | 82817-33S50 |
| 82818 | No. 2 wire harness protection device | 82817-33S60 |
| 82818B | No. 3 wire harness protection device | 82817-33Y60 |
| 82818C | No. 4 wire harness protection device | 82817-33X70 |
| 82818D | No. 5 wire harness protection device | 82817-33Y50 |
| 82818E | No. 6 wire harness protection device | 82817-33S40 |
| 82818G | No. 8 wire harness protection device | 82817-33X60 |
| 82818J | PROTECTEUR, FAISCEAU DE FILS, NO.10 | 82817-33X40 |
| 82818K | PROTECTEUR, FAISCEAU DE FILS, NO.11 | 82817-33Q70 |
| 82818L | PROTECTEUR, FAISCEAU DE FILS, NO.12 | 82817-33R00 |
| 82818M | PROTECTEUR, FAISCEAU DE FILS, NO.13 | 82817-33Q80 |
| 82818N | PROTECTEUR, FAISCEAU DE FILS, NO.14 | 82817-3T250 |
| 82818U | PROTECTEUR, FAISCEAU DE FILS, NO.17 | 82817-33Z40 |
| 82821M | Connector cover | 82821-33460 |
| 82821P | COUVERCLE, CONNECTEUR | 82821-33690 |
| 82823S | BOUCHON, BORNE DEMARREUR | 82823-33070 |
