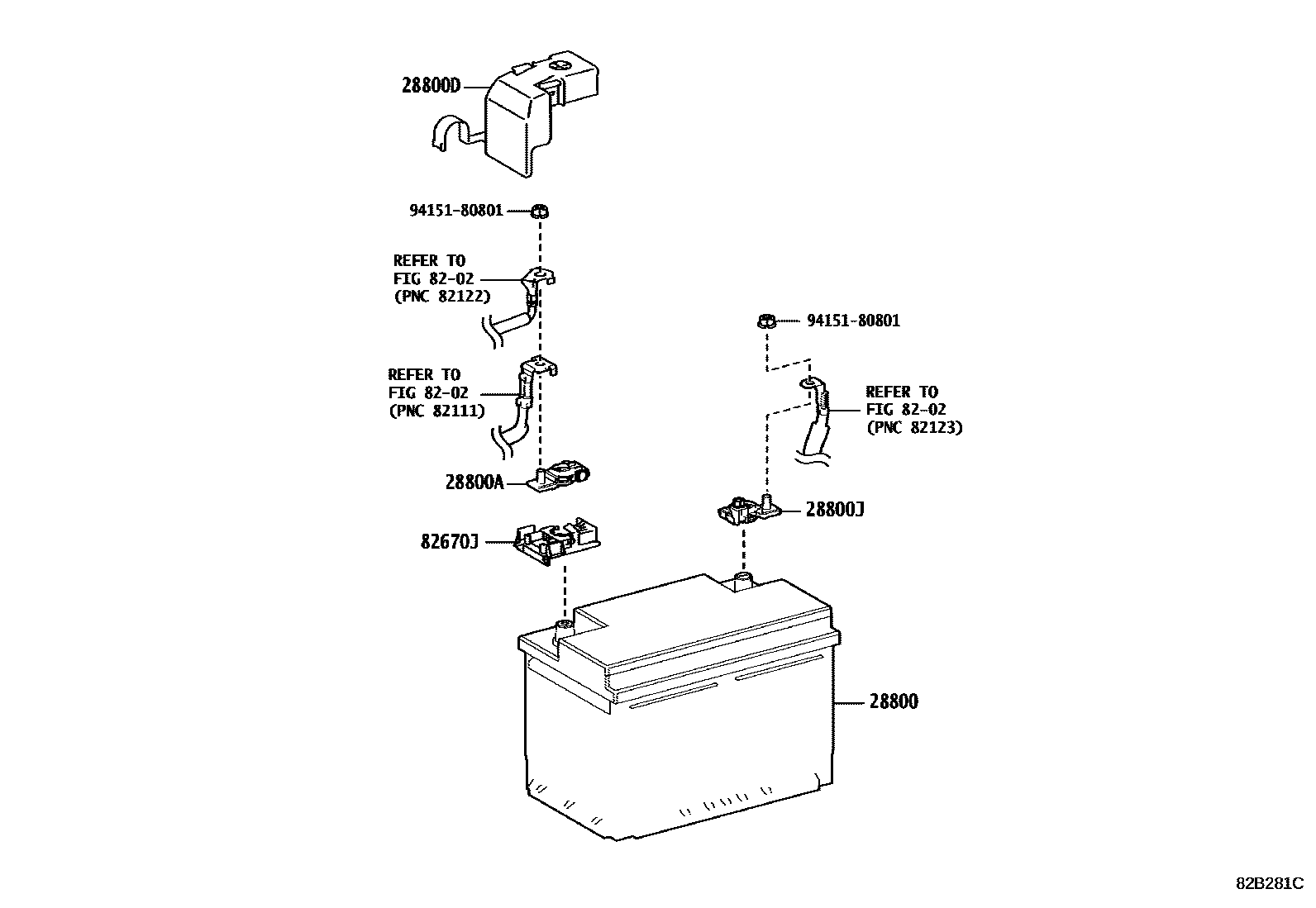

Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201
Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-25010 · 28800-25020 |
| 28800A | battery positive terminal | 90982-05072 |
| 28800D | Connector cover (for battery terminals) | 82821-33440 |
| 28800J | battery negative terminal | 90982-06061 |
| 82670J | Junction box assembly | 82671-33100 |
