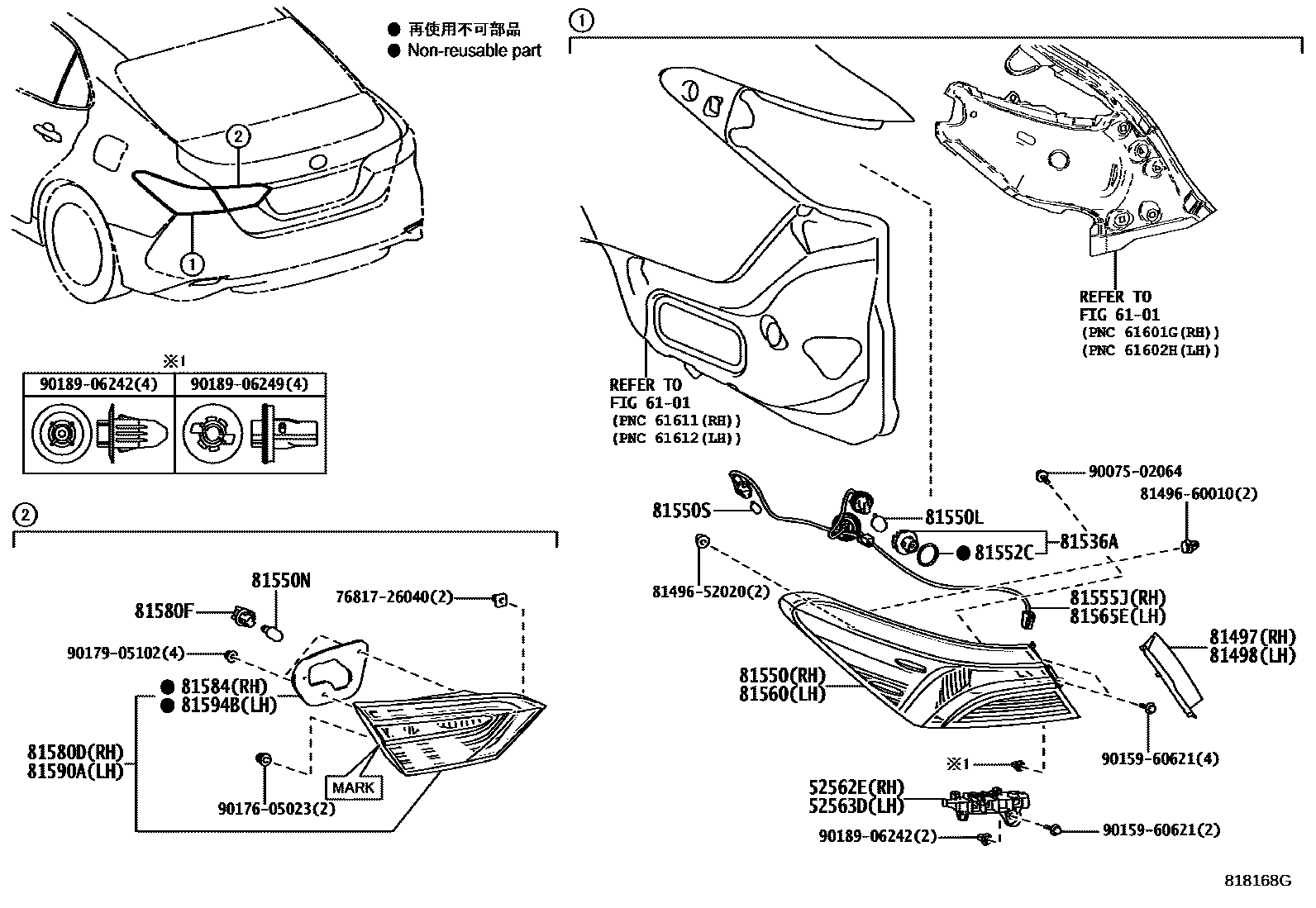

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562E | Rear bumper upper right fixing bracket | 52562-33060 |
| 52563D | Rear bumper upper left fixing bracket | 52563-33060 |
| 81497 | Right rear combination lamp cover | 81497-33020 |
| 81498 | Left rear combination lamp cover | 81498-33020 |
| 81536A | Rear LED combination light | 81536-52C80 |
| 81550 | Right rear combination light assembly | 81551-33670 · 81551-33710 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550S | Rear width light bulb | 90981-11069 |
| 81552C | Rear combination light gasket | 90075-68010 |
| 81555J | PRISE & CABLE, BLOC OPTIQUE ARRIERE, MD | 81555-33670 |
| 81560 | Left rear combination light assembly | 81561-33670 · 81561-33710 |
| 81565E | PRISE & CABLE, BLOC OPTIQUE ARRIERE, MG | 81555-33670 |
| 81580D | Right rear light assembly | 81581-33210 · 81581-33370 |
| 81580F | Rear light lamp holder plug | 90075-99005 |
| 81584 | Right rear light seal | 81582-33330 |
| 81590A | Left rear light assembly | 81591-33210 · 81591-33370 |
| 81594B | Left rear light seal | 81592-33330 |
