Toyota CAMRY Headlamp — Figure 8101

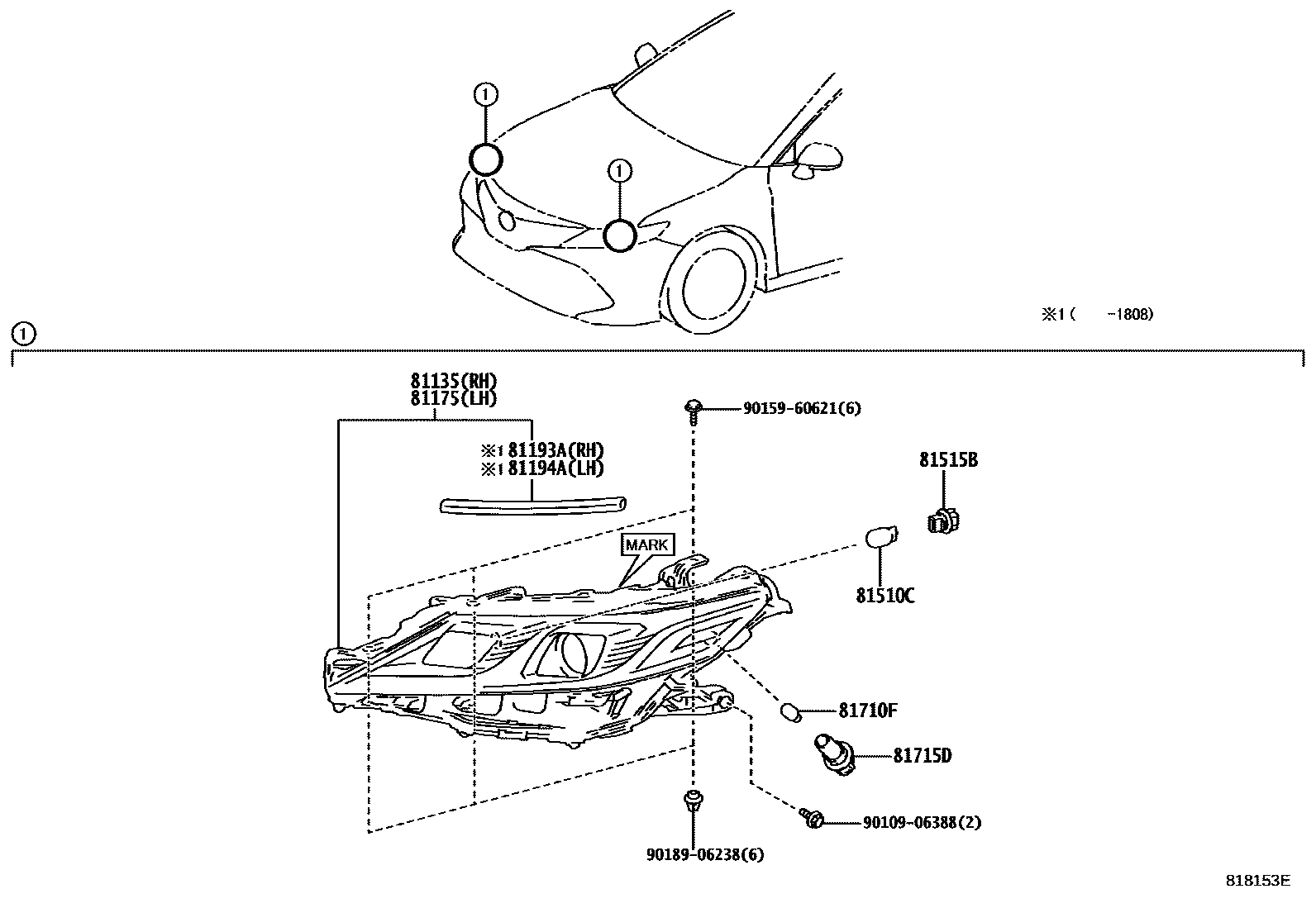

Toyota CAMRY EPC diagram 8101, Headlamp, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81135 | Right headlight assembly | 81130-33D40 · 81130-33D41 |
| 81175 | Left headlight assembly | 81170-33D00 · 81170-33D01 |
| 81193A | Right headlight protective cover | 81117-33D50 |
| 81194A | Left headlight protective cover | 81157-33D10 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15031 |
| 81515B | Front turn signal lamp holder | 81128-06470 |
| 81710F | Front width light bulb | 90981-11067 |
| 81715D | PRISE, FEUX GABARIT AVANT | 90075-60077 |
