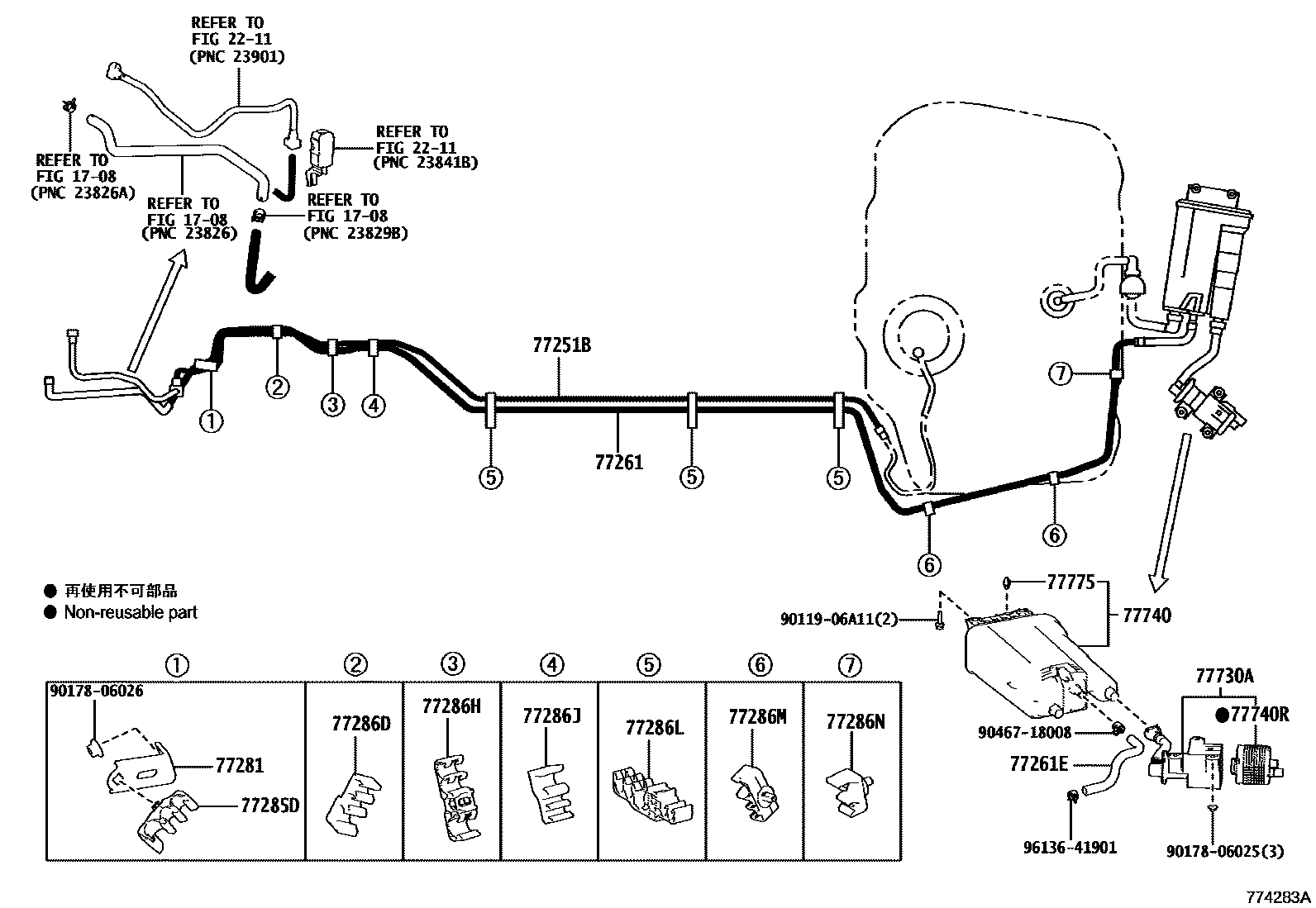

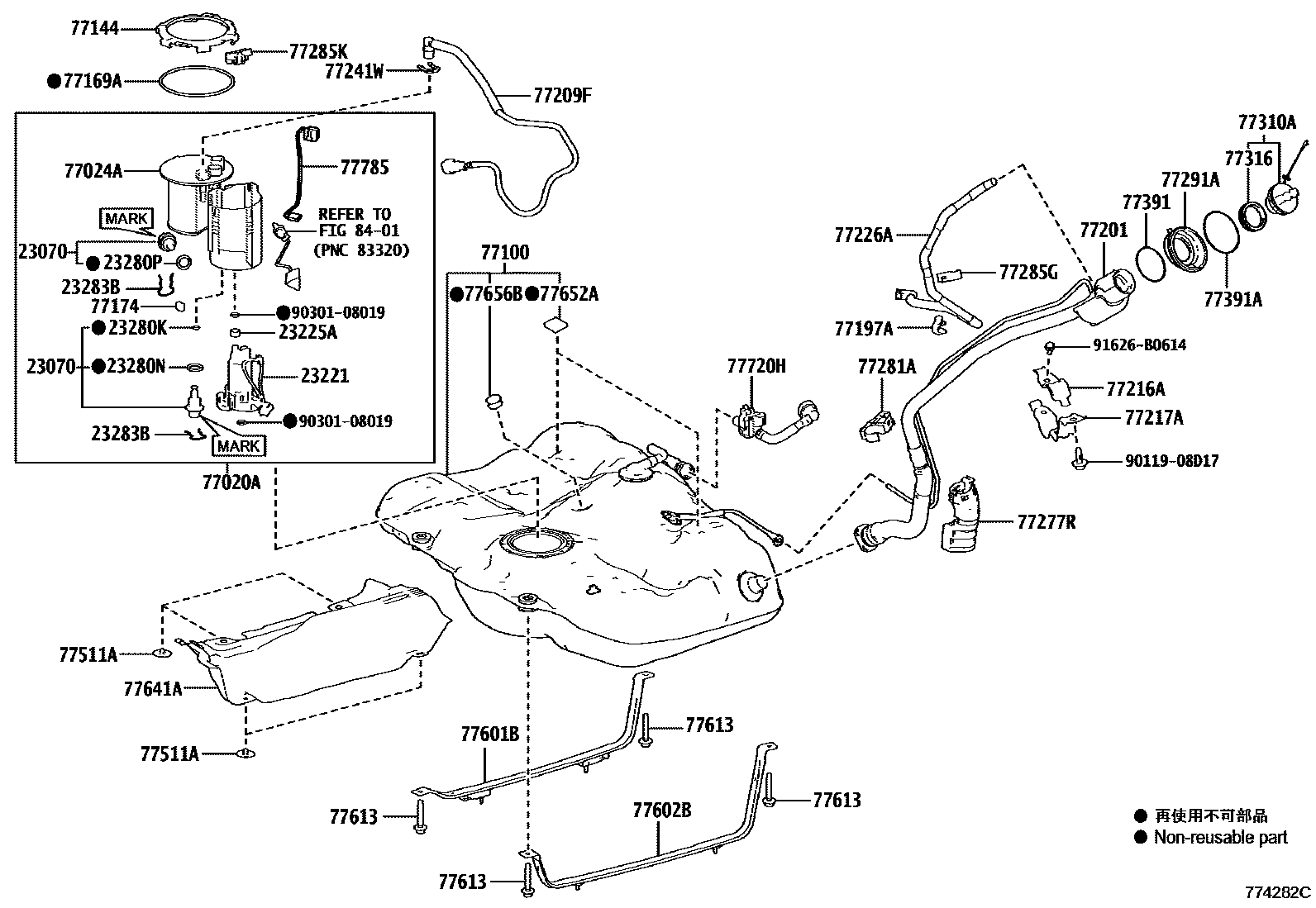

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 3 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 · 23070-31030 |
| 23221 | fuel pump | 23220-25020 |
| 23225A | fuel pump septum | 23225-31020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 |
| 23280N | JOINT TORIQUE (DE REGULATEUR PRESSION ESSENCE), NO.2 | 90301-15024 |
| 23280P | JOINT TORIQUE (DE REGULATEUR PRESSION ESSENCE), NO.3 | 90301-15024 |
| 23283B | SUPPORT REGULATEUR PRESSION ESSENCE | 23283-36010 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-33530 |
| 77024A | Fuel absorber sub-assembly | 77024-33240 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-33080 |
| 77100 | fuel tank assembly | 77001-33290 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47040 |
| 77174 | No. 1 oil suction pipe bracket | 77174-33060 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-47010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-33410 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-33150 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-33160 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-33100 |
| 77226A | No. 6 fuel tank breather pipe | 77226-33140 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77251B | main fuel pipe | 77251-33240 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-33230 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77249-33120 |
| 77277R | Fuel tank filler pipe protection device | 77277-33110 |
| 77281 | No. 1 main fuel pipe bracket | 77281-33080 |
| 77281A | Fuel filler pipe clamp | 77281-33070 |
| 77285D | No. 1 fuel pipe clamp | 77285-33090 |
| 77285G | No. 1 fuel pipe clamp | 77285-47120 |
| 77285K | No. 1 fuel pipe clamp | 77285-30350 |
| 77286D | No. 2 fuel pipe clamp | 77286-48120 |
| 77286H | No. 3 fuel pipe clamp | 77298-33110 |
| 77286J | No. 4 fuel pipe clamp | 77298-48190 |
| 77286L | No. 5 fuel pipe clamp | 77298-33040 |
| 77286M | No. 6 fuel pipe clamp | 77286-47050 |
| 77286N | No. 7 fuel pipe clamp | 77286-33110 |
| 77291A | Fuel tank filler pipe cover | 77291-33110 |
| 77310A | Fuel tank cap assembly | 77300-53030 |
| 77316 | fuel tank cap gasket | 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-33230 |
| 77360A | ENS. RESSORT, COUVERCLE OUVERTURE DU REMPLISSAGE RESERVOIR | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-33040 · 77377-78010 |
| 77379 | No. 2 fuel inlet cap gasket | 77379-33010 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-20040 · 77391-33060 |
| 77511A | fuel tank bracket | 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-33170 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-33180 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 |
| 77641A | No. 1 fuel tank protective shell | 77641-33030 |
| 77652A | No. 2 fuel tank liner | 77652-33060 |
| 77656B | No. 6 fuel tank liner | 77656-33010 |
| 77720H | Fuel delivery valve assembly | 77720-33010 |
| 77730A | Capture carbon canister assembly with oil outlet valve | 77730-33110 |
| 77740 | Carbon canister assembly | 77740-33220 |
| 77740R | Leak detection pump sub-assembly | 90910-14008 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-33140 |
