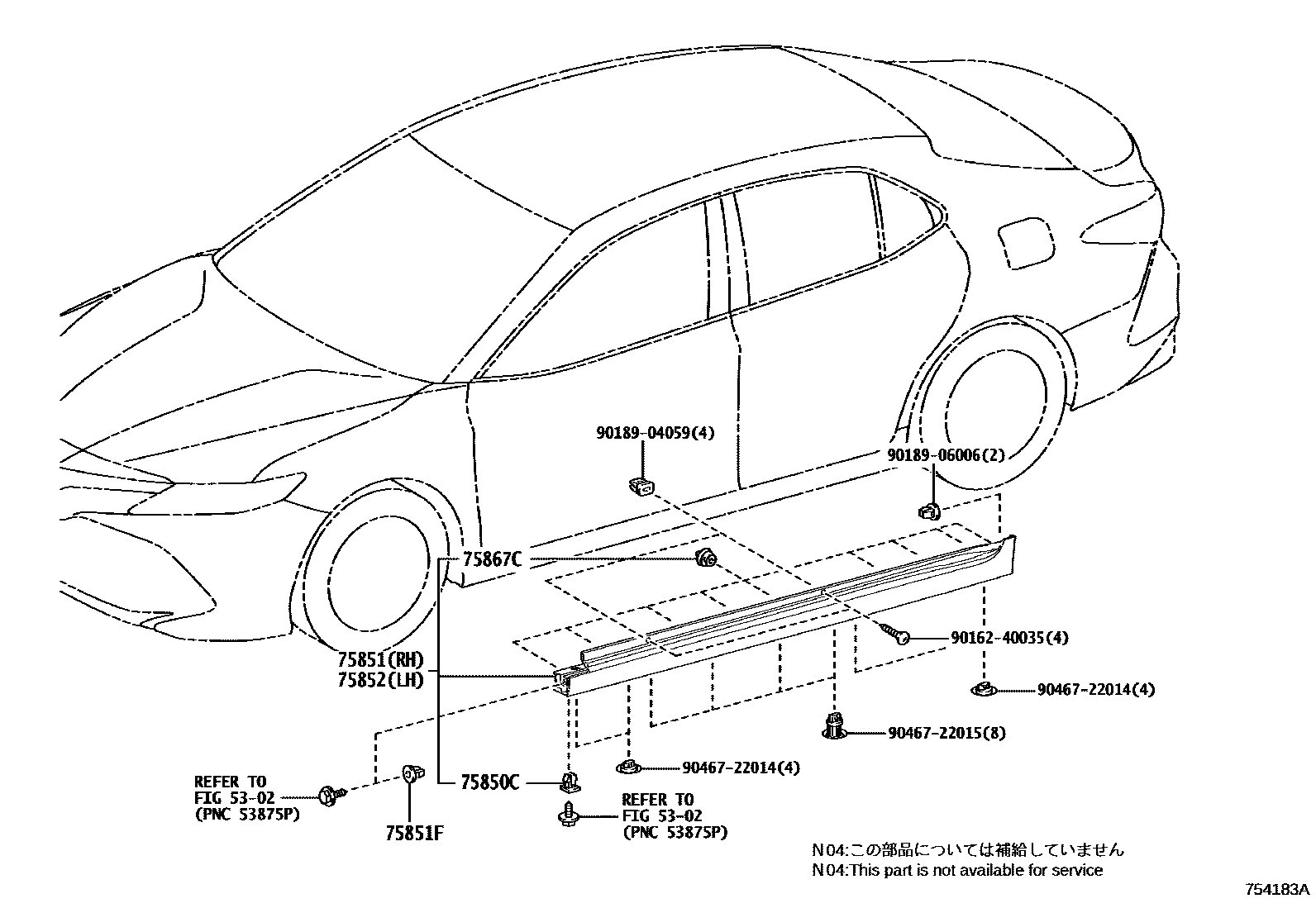

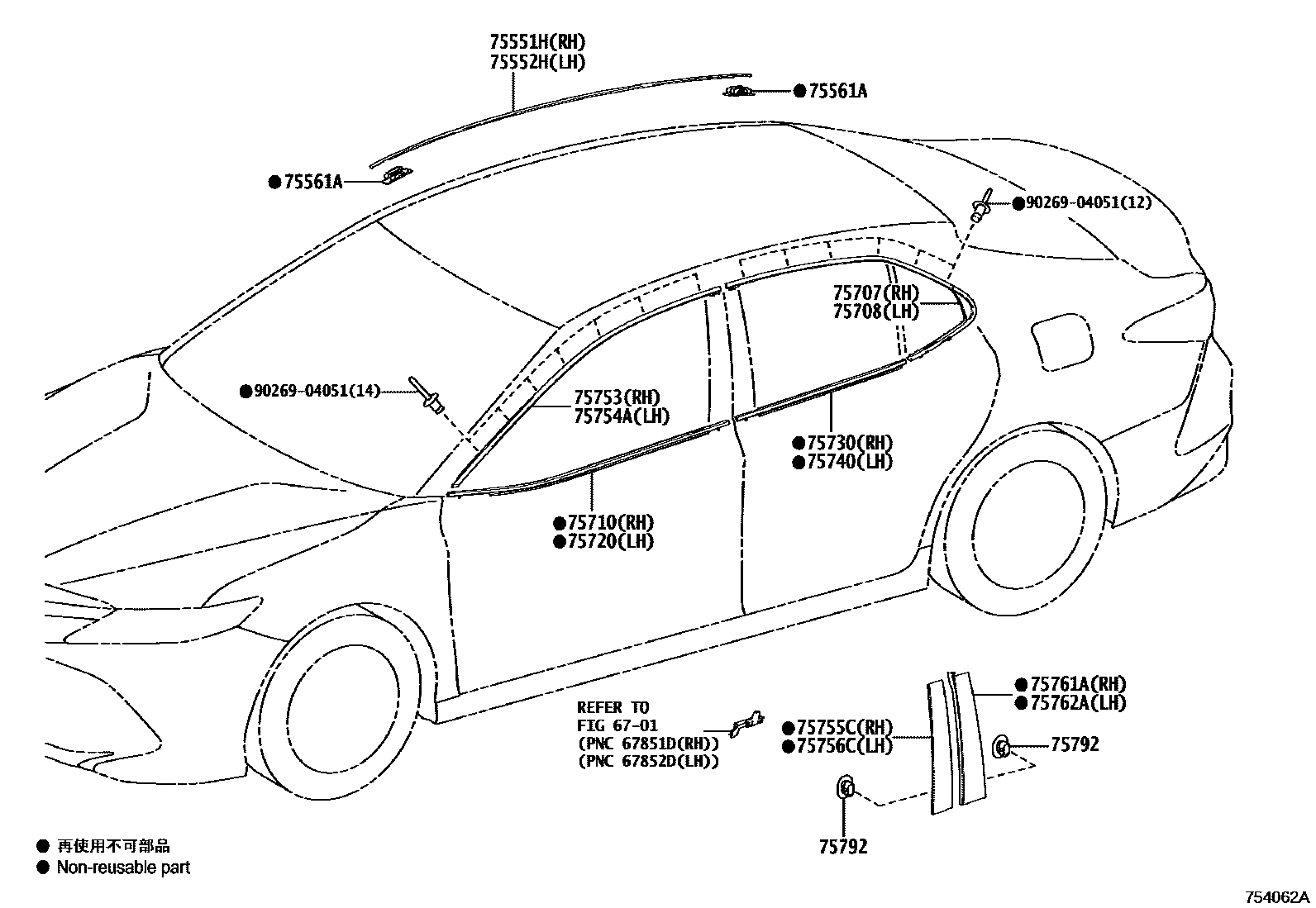

Toyota CAMRY 侧防护条 — Figure 7503
Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75551H | Drainage groove side on the right side of the roof | 75555-33080 |
| 75552H | Drainage channel side protection strip on the left side of the roof | 75556-33080 |
| 75561A | Roof drain channel side decorative strip clip | 75561-52040 |
| 75707 | Right rear door window frame protective strip sub-assembly | 75707-33060 |
| 75708 | Left rear door window frame protective strip sub-assembly | 75708-33060 |
| 75710 | Right front door waistline protection strip assembly | 75710-33170 |
| 75720 | Left front door waistline protection strip assembly | 75720-33170 |
| 75730 | Right rear door waistline protection strip assembly | 75730-33170 |
| 75740 | Left rear door waistline protection strip assembly | 75740-33170 |
| 75753 | Protective strip on right front door window frame | 75753-33100 |
| 75754A | Protective strip on left front door window frame | 75754-33100 |
| 75755C | Right front door window frame rear protective strip | 75755-33090 |
| 75756C | Left front door window frame rear protective strip | 75756-33090 |
| 75761A | Right rear door window frame front protective strip | 75761-33090 |
| 75762A | Left rear door window frame front protective strip | 75762-33090 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75850C | OEILLET, NO.1 | 90189-06193 |
| 75851 | Right side door sill panel protective strip | 75850-33904 · 75850-33905 |
| 75851F | OEILLET(MOULURE BAS DE CAISSE CARROSSERIE) | 90189-06006 |
| 75852 | Left side door sill panel protective strip | 75860-33905 · 75860-33906 |
| 75867C | Door sill panel protective strip clip | 75867-68010 |
