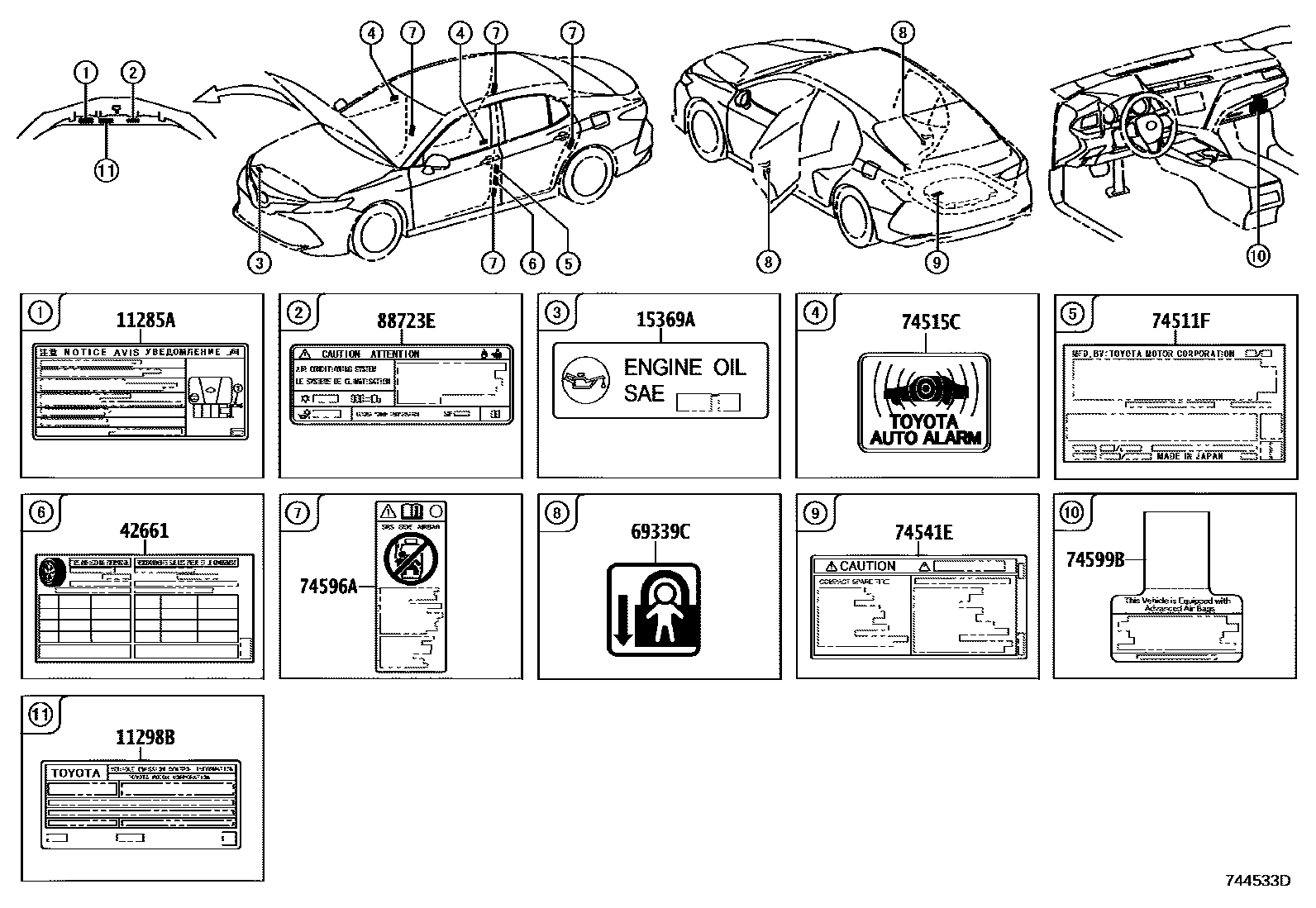

Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403
Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-25020 |
| 11298B | Emission Control Information Label | 11298-25010 · 11298-25011 |
| 15369A | Engine oil information label | 15369-25010 |
| 42661 | ETIQUETTE, INFORMATIONS PRESSION PNEUS | 42661-33E50 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74514-33010 |
| 74515C | Anti-theft warning information label | 74515-33020 |
| 74541E | Small spare tire warning plate | 42668-28090 |
| 74596A | Side air bag warning label | 74596-78010 |
| 74599B | Driver and passenger air bag information labels | 74599-48020 |
| 88723E | Cooler maintenance warning label | 88723-33150 |
