Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102

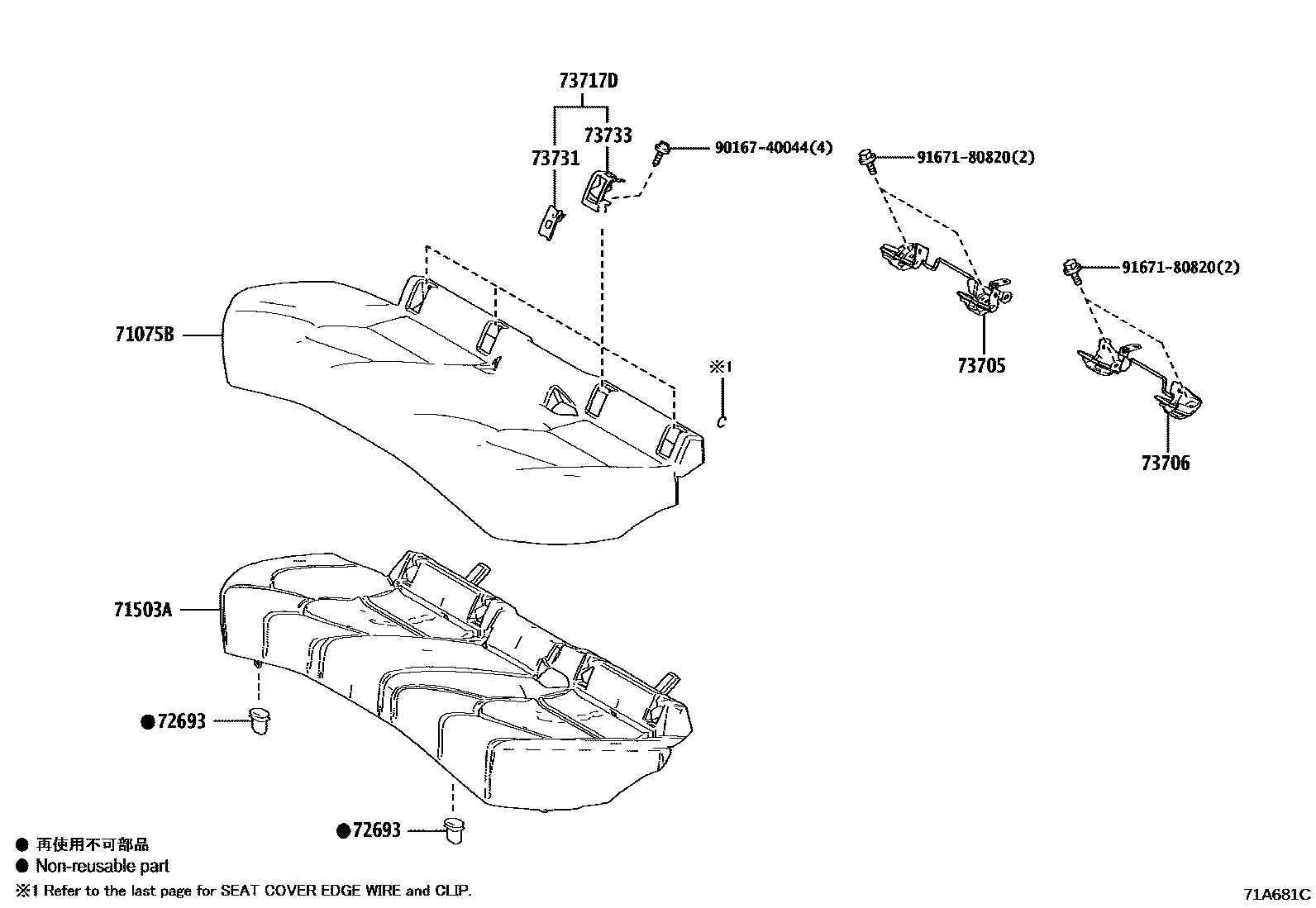

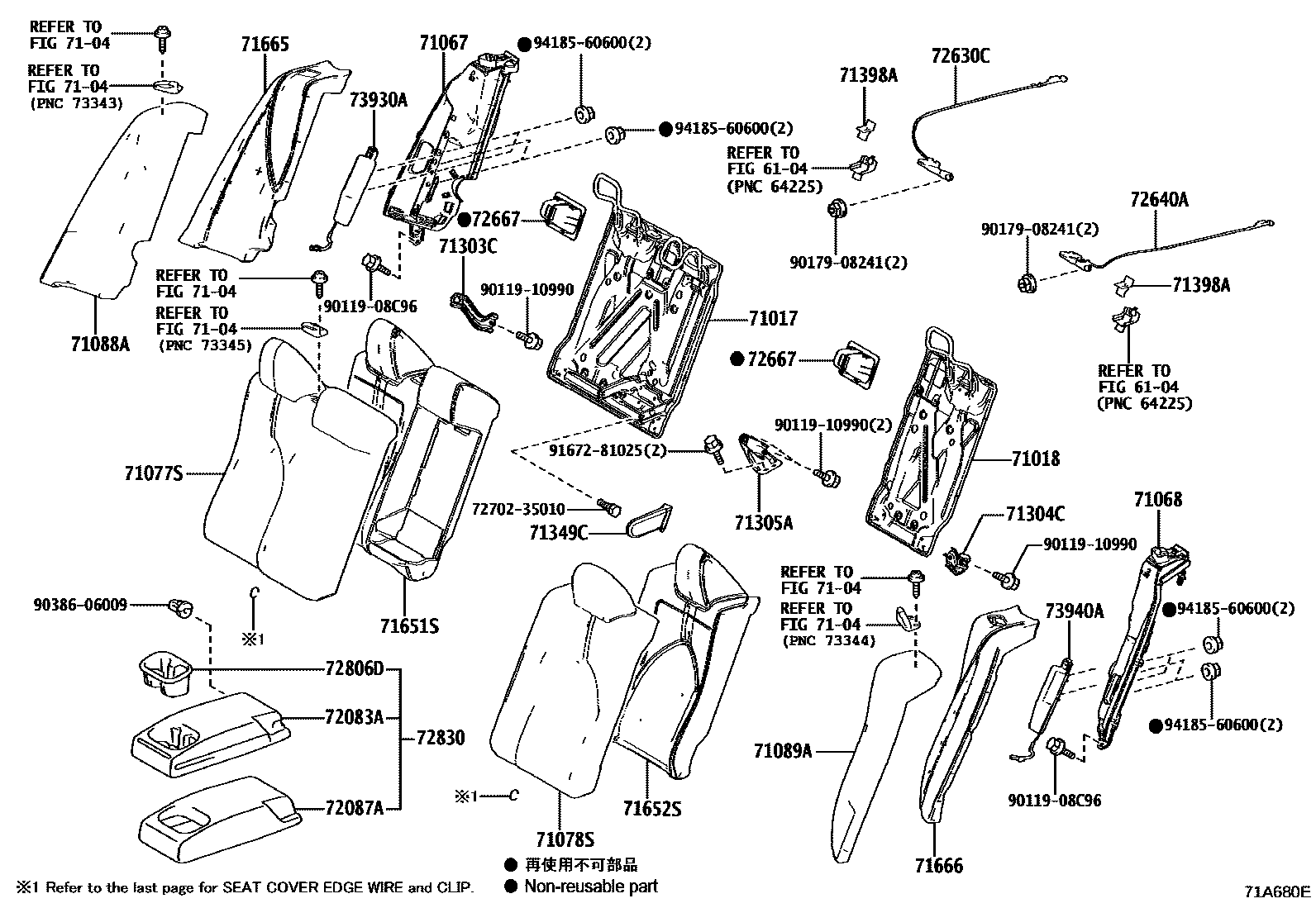

Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-33230 |
| 71018 | Rear left seat back frame sub-assembly | 71018-33160 |
| 71067 | Rear right side seat back frame sub-assembly | 71067-33010 |
| 71068 | Rear left side seat back frame sub-assembly | 71068-33010 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-33080 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-33020 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-33110 |
| 71503A | SS-ENS. REMBOURRAGE, COUSSIN SIEGE ARRIERE | 71503-33130 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-33230 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-33140 |
| 71665 | Rear right seat backrest side cushion | 71665-33070 |
| 71666 | Rear left seat backrest side cushion | 71666-33080 |
| 72083A | SOUS-ENS. COUSSIN, ACCOUDOIR CENTRAL SIEGE ARRIERE | 72083-33160 |
| 72630C | Rear right seat back lock assembly | 72630-33080 |
| 72640A | Rear left seat back lock assembly | 72640-33090 |
| 72667 | Rear seat back locking frame | 72667-33010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-33130 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-33130 |
| 73930A | Rear right seat airbag assembly | 73930-33070 |
| 73940A | Rear left seat air bag assembly | 73940-33070 |
