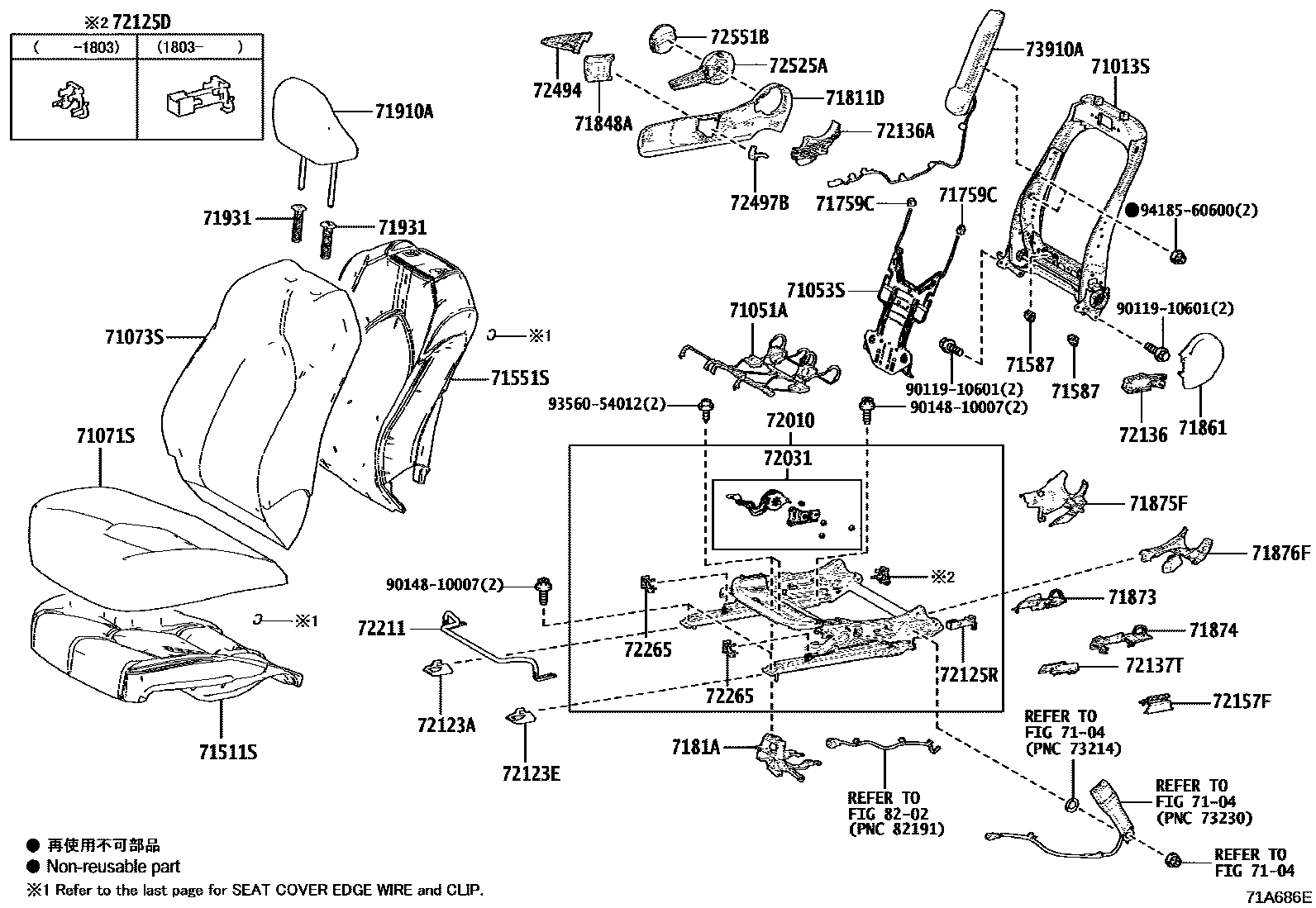

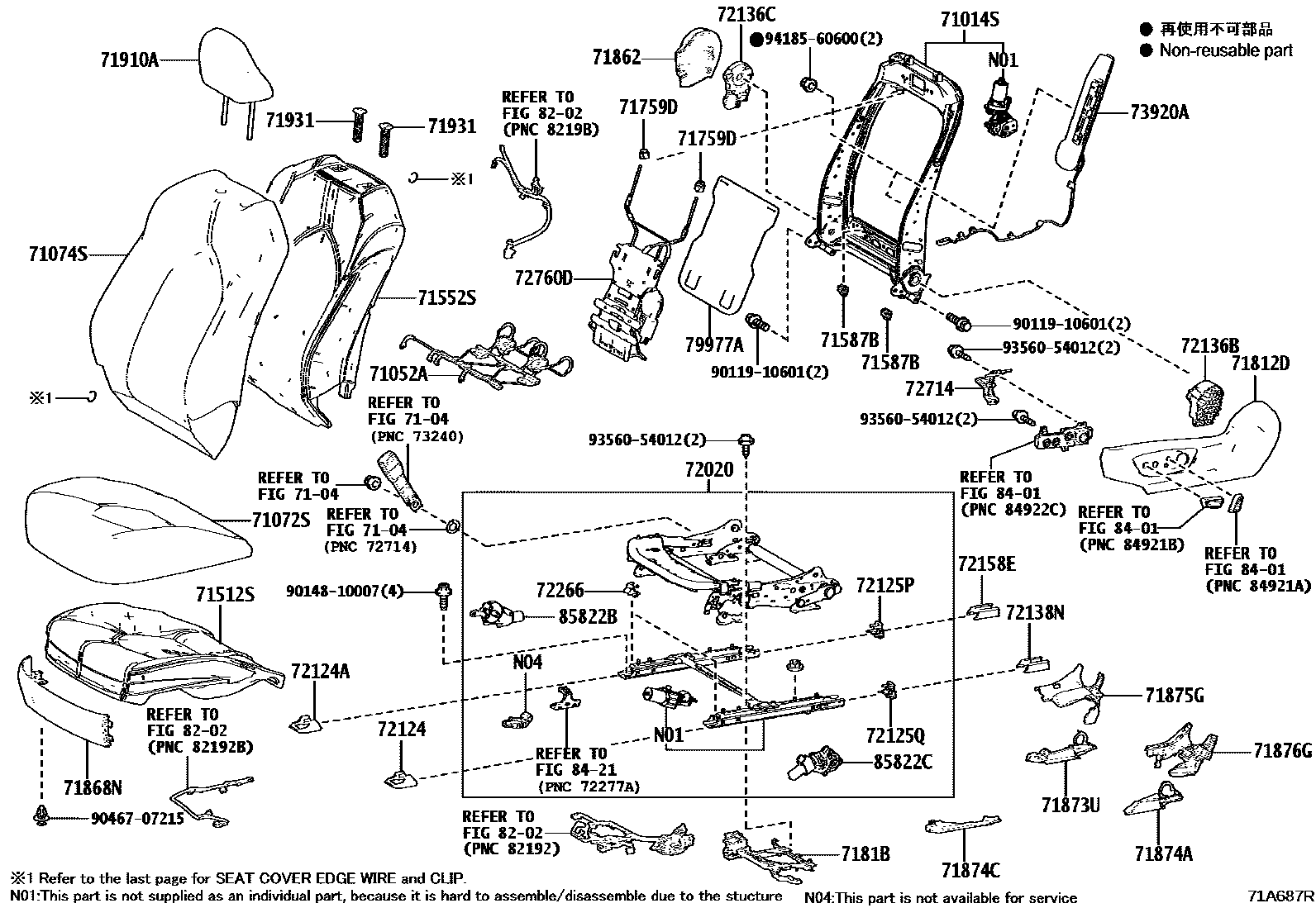

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-33360 · 71013-33580 |
| 71014S | Front left seat back frame sub-assembly | 71014-33220 · 71014-33410 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47090 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47090 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-33530 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-33470 |
| 71551S | Front right seat back cushion (for split seats) | 71551-33410 |
| 71552S | Front left seat back cushion (for split seats) | 71552-33300 |
| 71587 | Front seat back edge protective cover | 71587-47010 |
| 71587B | Front seat back edge protective cover | 71587-47010 |
| 71759C | Front seat back hook No. 1 | 71759-52050 |
| 71759D | Front seat back hook 2 | 71759-52050 |
| 7181A | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MD | 7181A-47010 |
| 7181B | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MG | 7181B-33010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47070 |
| 71873U | PROTECTION, COUSSIN SIEGE AVANT, INF MD | 71874-47080 |
| 71874 | Front left seat cushion lower guard | 71873-33140 |
| 71874A | Front left seat cushion lower guard | 71874-47070 |
| 71874C | Front seat cushion lower guard | 71874-47090 |
| 72010 | Front right seat adjuster assembly | 72010-33540 |
| 72020 | Front left seat adjuster assembly | 72020-33450 |
| 72031 | Front seat height adjuster assembly | 72443-47010 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-47060 |
| 72123E | COUV. EXT. ARRIERE DROIT PLATINE FIX. GLISSIERE SIEGE | 72123-47060 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-47060 |
| 72124A | COUV. EXT. ARRIERE GAUCHE PLATINE FIX. GLISSIERE SIEGE | 72123-47060 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-47010 · 72125-47020 |
| 72125P | COUVERCLE AR. SUPERIEUR NO. 3 GLISSIERE SIEGE | 72125-47020 |
| 72125Q | COUVERCLE AR. SUPERIEUR NO. 4 GLISSIERE SIEGE | 72125-47020 |
| 72125R | CACHE, RAIL SIEGE, SUP ARR NO.1 | 72125-47010 |
| 72136 | No. 1 seat slide rail lower rail | 72136-33250 |
| 72136A | No. 2 seat slide rail lower rail | 72136-33260 |
| 72136B | No. 3 seat slide rail lower rail | 72136-33290 |
| 72136C | No. 4 seat slide rail lower rail | 72136-33300 |
| 72137T | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MD | 72137-47060 |
| 72138N | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MG | 72137-47060 |
| 72157F | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MD | 72157-47080 |
| 72158E | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MG | 72158-47080 |
| 72211 | Seat slide adjustment handle | 72211-47050 |
| 72265 | Right seat rail upper rail cover | 72265-47010 |
| 72266 | Left seat rail upper rail cover | 72265-47020 |
| 72497B | Right height adjuster bracket cover | 72498-47010 |
| 72714 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MG | 72714-47010 |
| 72760D | Left lumbar support adjuster assembly | 72760-11020 · 72760-47030 |
| 73910A | Front right seat airbag assembly | 73910-33080 |
| 73920A | Front left seat airbag assembly | 73920-33080 |
| 79977A | Seat back felt pad | 79977-33030 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-47040 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-47030 |
