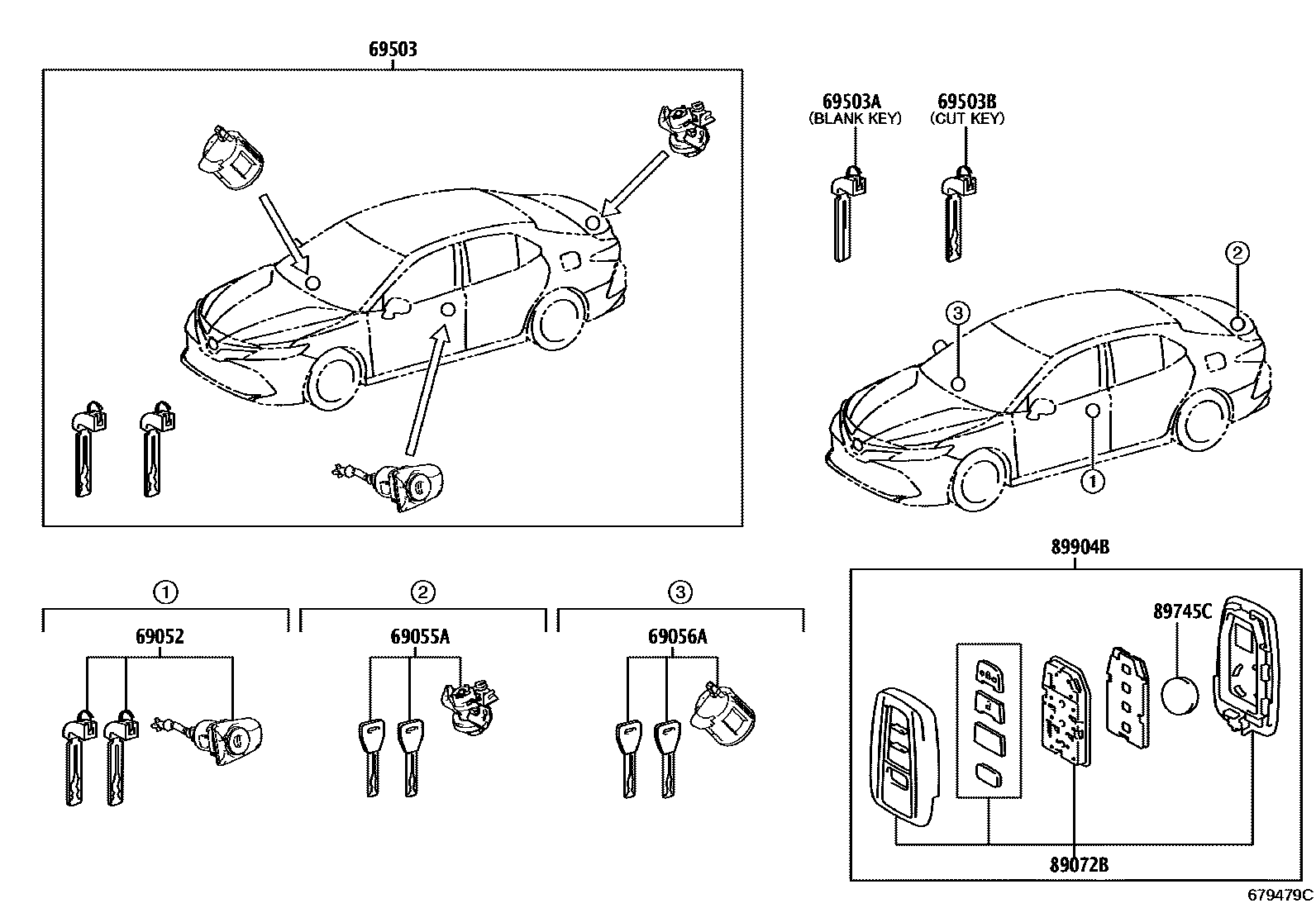

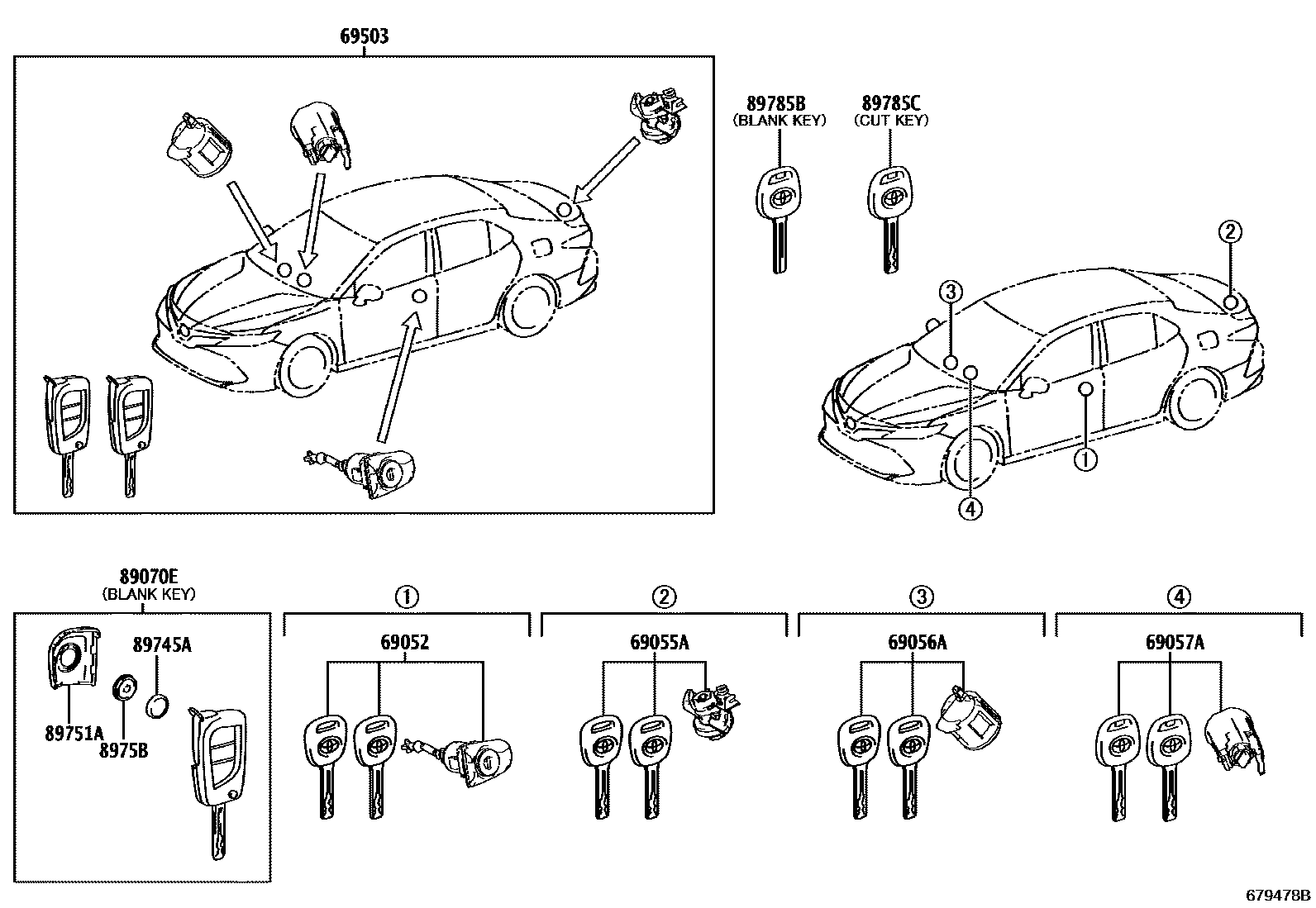

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-33350 · 69052-33420 |
| 69055A | Luggage lock cylinder and key assembly | 69055-33500 · 69055-33510 |
| 69056A | Glove box lock cylinder and key assembly | 69056-30240 · 69056-30270 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-33410 |
| 69503 | Door lock cylinder components | 69005-33D60 · 89704-33840 · 89704-33841 |
| 69503A | external tooth key | 69515-47030 |
| 69503B | internal tooth key | 69515-47020 |
| 89070E | Remote key assembly | 89070-33E90 · 89070-33E91 |
| 89072B | Remote key shell assembly (for smart key) | 89072-33870 |
| 89745A | Transmitter battery | 89745-50020 |
| 89745C | Transmitter battery | 89745-45010 |
| 89751A | Transmitter housing cover | 89751-33200 |
| 8975B | Remote control battery case cover | 8975B-33050 · 8975B-52010 |
| 89785B | transceiver key master transmitter | 89785-12140 |
| 89785C | transceiver key master transmitter | 89785-12150 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33550 |
