Toyota CAMRY 后门板和后门玻璃 — Figure 6705

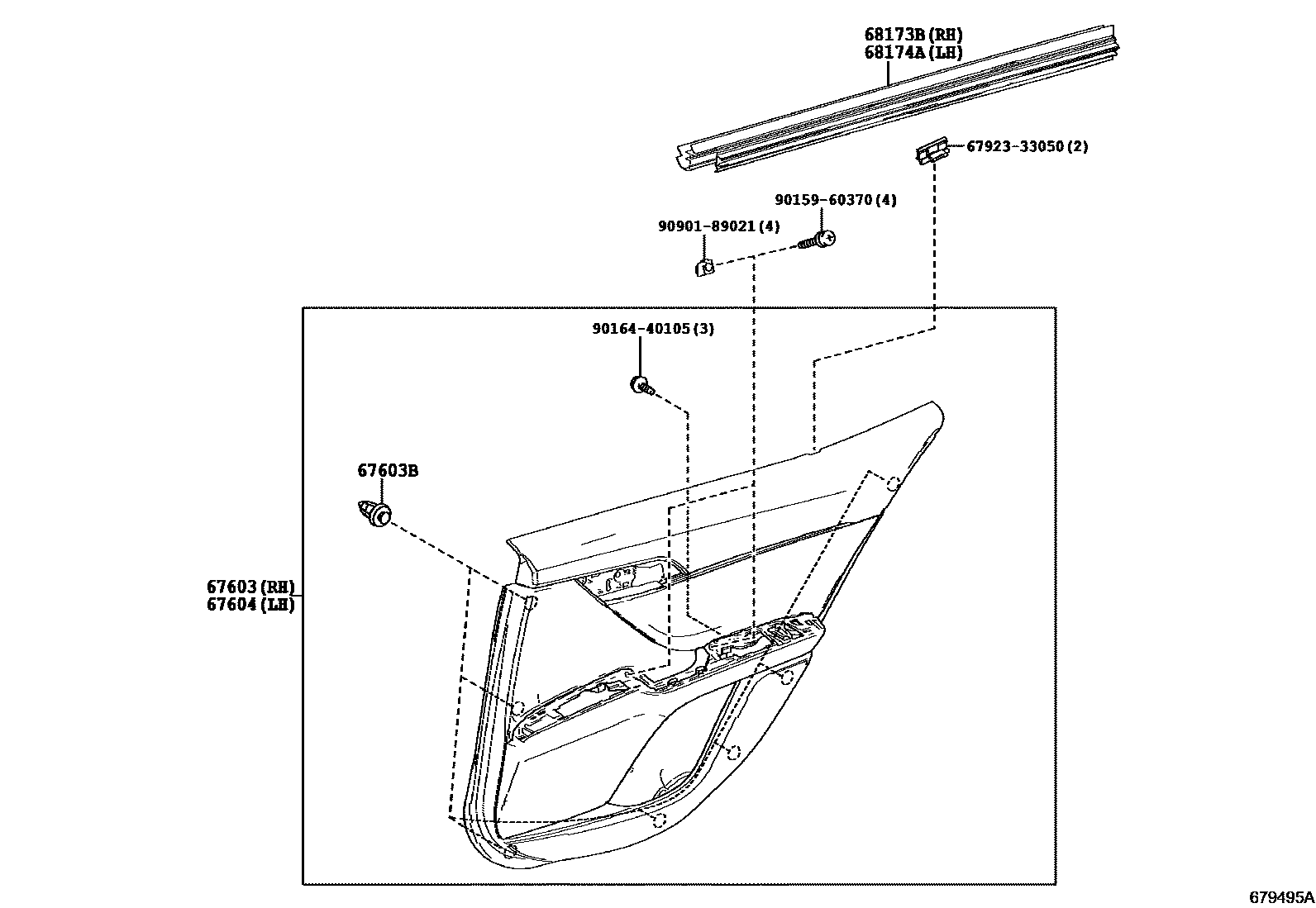

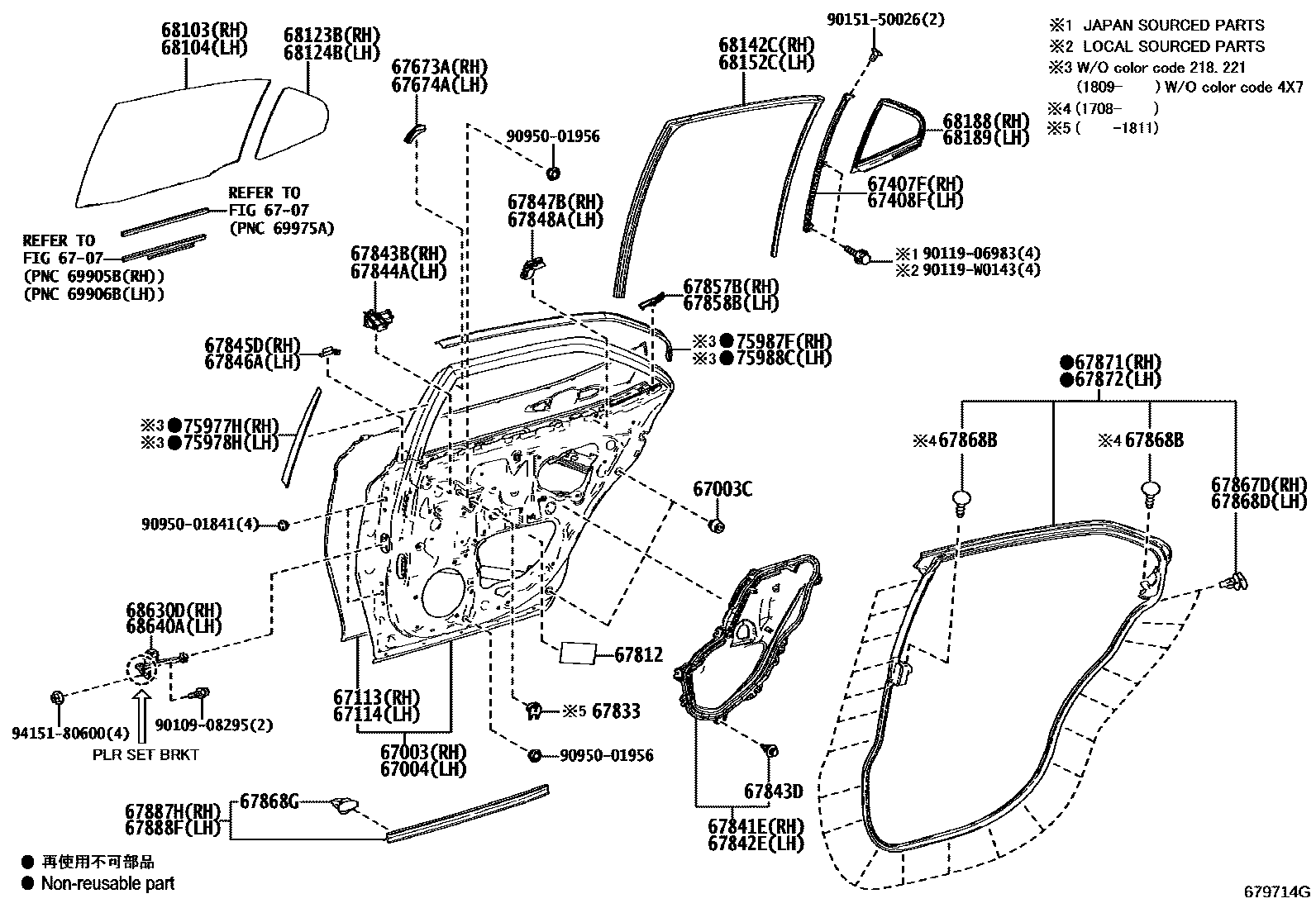

Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-33270 |
| 67003C | Rear door panel cushion | 90541-09143 |
| 67004 | Left rear door panel sub-assembly | 67004-33260 |
| 67113 | Right rear door outer panel | 67113-33110 |
| 67114 | Left rear door outer panel | 67114-33110 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-33130 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-33130 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67673A | Right rear door frame decorative strip | 67673-33150 |
| 67674A | Left rear door frame decorative strip | 67674-33150 |
| 67812 | Rear door silencer pad | 67811-33040 |
| 67833 | Rear door access hole cover | 67833-47010 |
| 67841E | Right rear door access hole cover | 67841-33140 |
| 67842E | Left rear door access hole cover | 67842-33140 |
| 67843B | Right rear door No. 2 access hole cover | 67843-33050 |
| 67843D | Rear door access hole clip | 90467-09206 |
| 67844A | Left rear door No. 2 access hole cover | 67844-33050 |
| 67845D | JOINT, EXTERIEUR AVANT PORTE ARRIERE, MD | 67845-33020 |
| 67846A | JOINT, EXTERIEUR AVANT PORTE ARRIERE, MG | 67846-33030 |
| 67847B | No. 1 right rear door ventilator seal | 67847-33030 |
| 67848A | No. 1 left rear door ventilator seal | 67848-33020 |
| 67857B | Right rear door panel protector | 67857-33070 |
| 67858B | Left rear door panel protector | 67858-33070 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868B | Door glass seal strip clip (for rear door) | 67868-30030 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67868G | door seal fixings | 67867-52030 |
| 67871 | Right rear door sealing strip | 67871-33120 |
| 67872 | Left rear door sealing strip | 67872-33120 |
| 67887H | Right rear door seal No. 2 | 67887-33050 |
| 67888F | Left rear door seal No. 2 | 67887-33050 |
| 68103 | Right rear door glass sub-assembly | 68113-33290 |
| 68104 | Left rear door glass sub-assembly | 68114-33290 |
| 68123B | Right rear door corner window glass | 68123-33220 |
| 68124B | Left rear door corner window glass | 68124-33220 |
| 68142C | Right rear door glass lift slot | 68142-33130 |
| 68152C | Left rear door glass lift slot | 68152-33130 |
| 68173B | Right rear door glass inner sealing strip | 68173-33100 · 68173-33101 |
| 68174A | Left rear door glass inner sealing strip | 68174-33100 · 68174-33101 |
| 68188 | Right rear door corner window seal | 68188-33080 |
| 68189 | Left rear door corner window seal | 68189-33080 |
| 68630D | Right rear door opening limiter assembly | 68630-33110 · 68630-33111 · 68630-33112 |
| 68640A | Left rear door opening limiter assembly | 68630-33110 · 68630-33111 · 68630-33112 |
| 75977H | Right rear door outer lower trim strip | 75977-33040 |
| 75978H | Left rear door outer lower trim strip | 75978-33040 |
| 75987F | Right rear door outer trim | 75987-33080 |
| 75988C | Left rear door outer trim | 75988-33080 |
