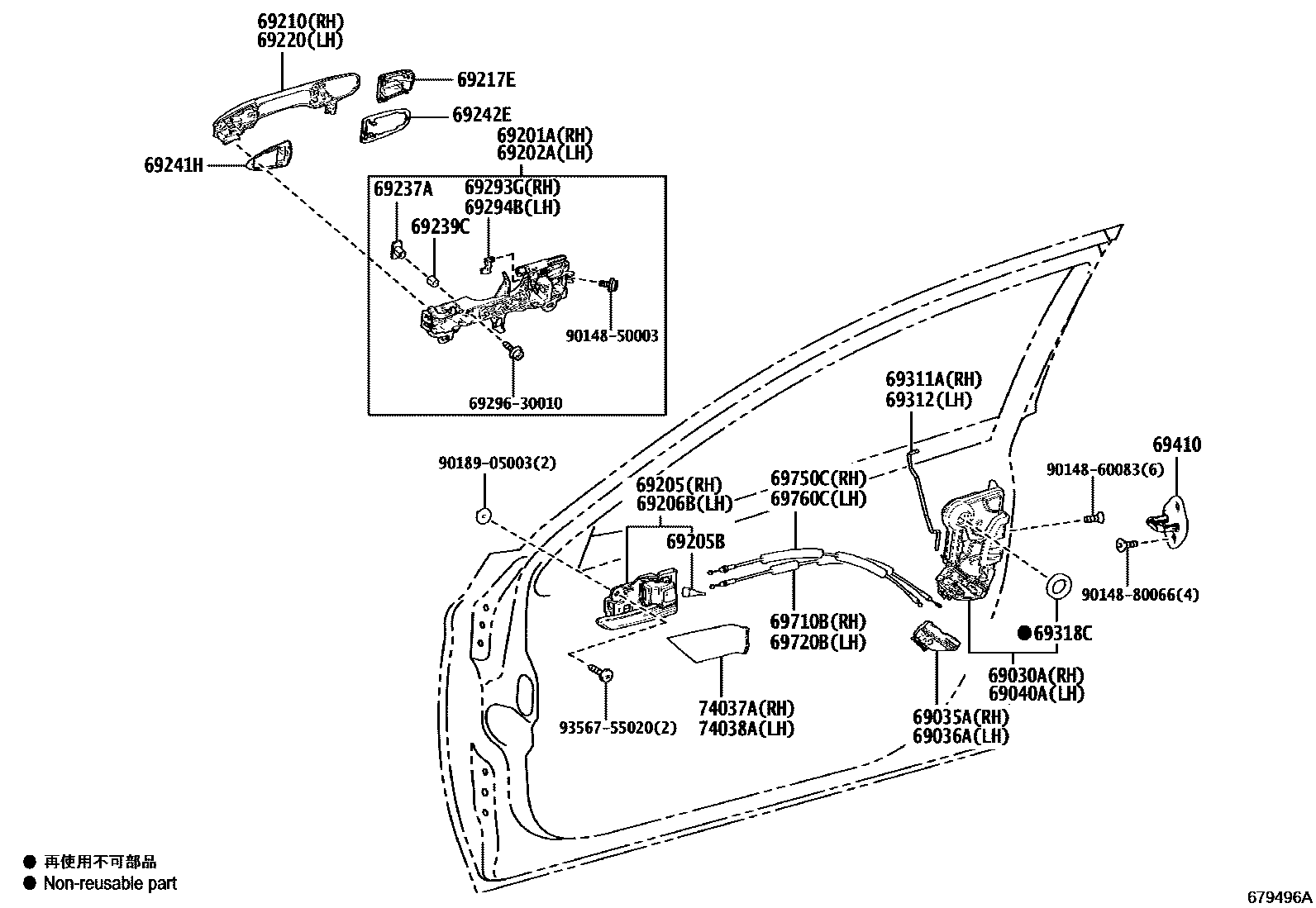

Toyota CAMRY 前门锁和车门把手 — Figure 6703
Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-53120 |
| 69035A | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE AVANT, MD | 69035-30010 |
| 69036A | Left front door lock cover sub-assembly | 69036-30010 |
| 69040A | Left front door door lock assembly with motor | 69040-53130 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-33060 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-33060 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69217E | Right front door outer handle cover | 69217-47020 |
| 69237A | ECROU, POIGNEE PORTE AVANT | 69237-62010 |
| 69239C | BAGUE, POIGNEE PORTE AVANT | 69239-47010 |
| 69241H | Front door exterior handle pad | 69241-47020 |
| 69242E | Front door rear outer handle pad | 69242-47030 |
| 69293G | Right front door outer handle buckle | 69293-33030 |
| 69294B | Left front door outer handle buckle | 69293-33040 |
| 69311A | Right front door lock opening lever | 69311-33120 |
| 69312 | Left front door lock opening lever | 69312-33120 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-20110 |
| 69710B | Right front door lock remote control cable assembly | 69710-33120 |
| 69720B | Left front door lock remote control cable assembly | 69710-33120 |
| 69750C | Right front door inner lock cable assembly | 69750-33110 |
| 69760C | Left front door inner lock cable assembly | 69750-33110 |
| 74037A | SOUS-ENS. CACHE, ACCOUDOIR PORTE AV, MD | 74037-33020 |
| 74038A | SOUS-ENS. CACHE, ACCOUDOIR PORTE AV, MG | 74038-33020 |
