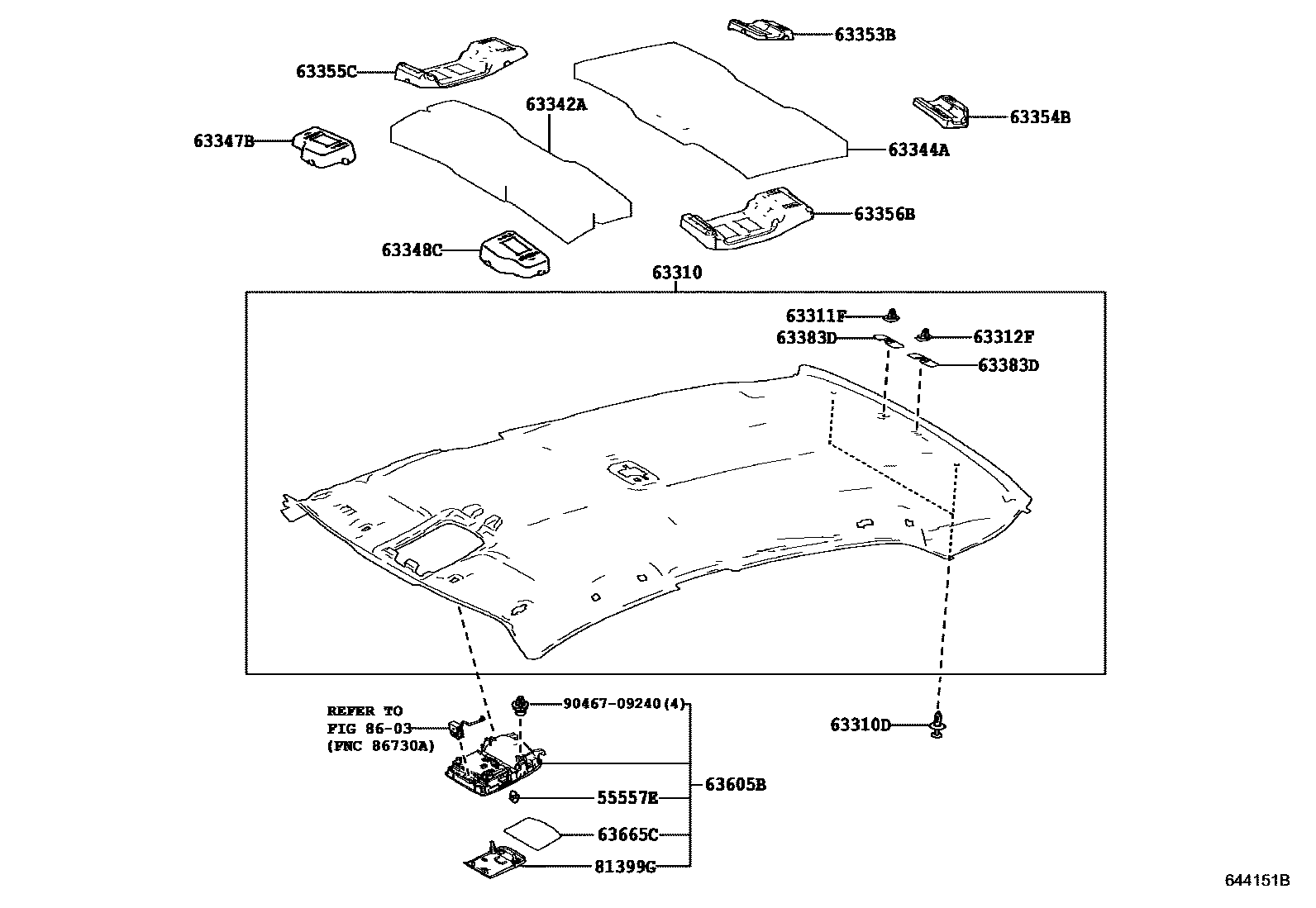

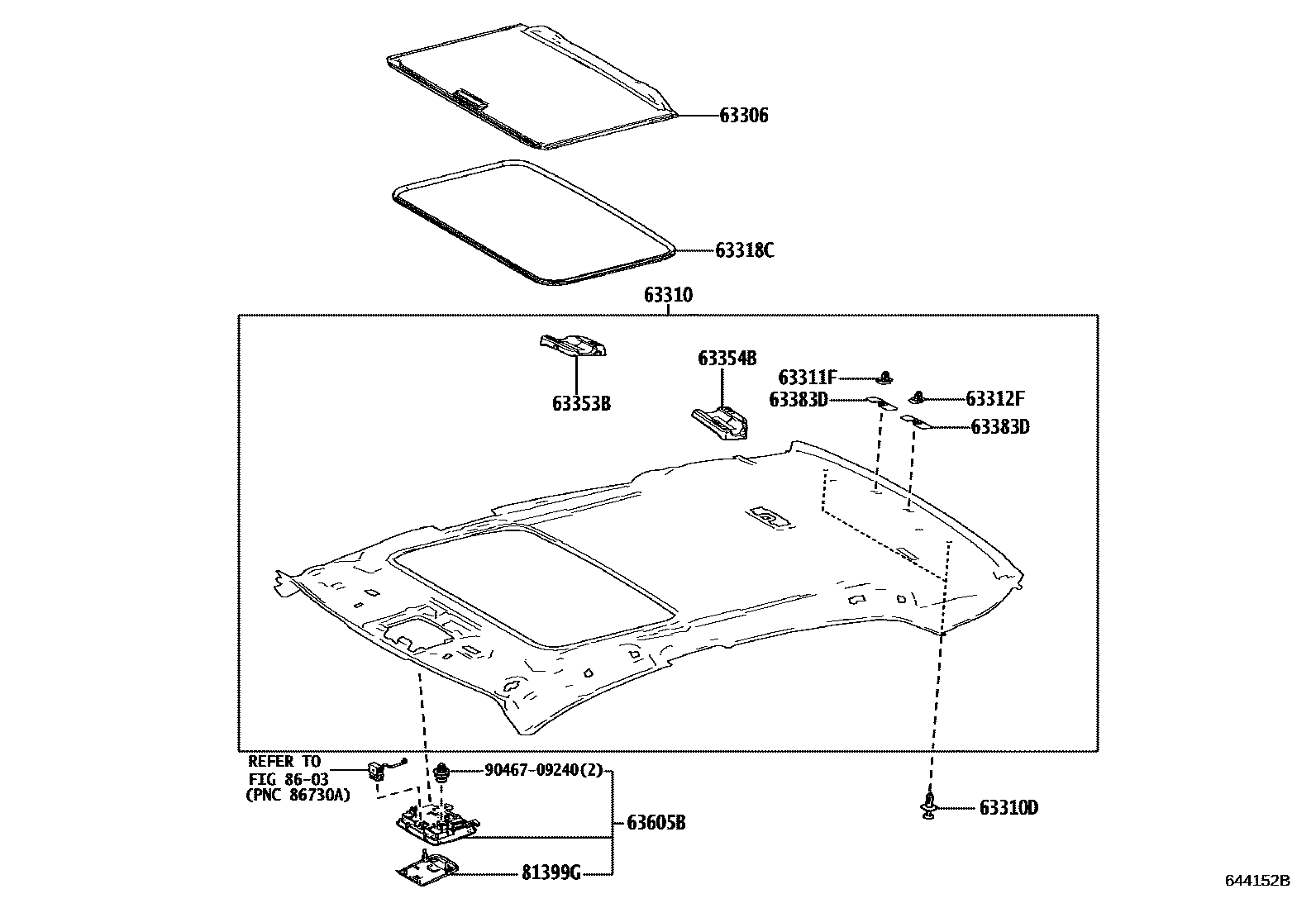

Toyota CAMRY 车顶内衬和消声垫 — Figure 6402
Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55557E | COUSSIN, BOITIER DE CONSOLE DE TOIT | 55557-47050 |
| 63311F | No. 1 headliner clip | 90467-10181 |
| 63312F | No. 2 headliner clip | 90467-09126 |
| 63342A | No. 2 roof silencer | 63342-33070 |
| 63344A | No. 4 roof silencer | 63344-33060 |
| 63347B | Roof right longitudinal beam muffler pad | 63347-33030 |
| 63348C | Roof left side rail silencer pad | 63348-33030 |
| 63353B | No. 12 roof silencer mat | 63353-33020 |
| 63354B | No. 13 roof silencer mat | 63354-33020 |
| 63355C | Right side roof lining | 63355-33030 |
| 63356B | Roof left inner lining block | 63356-33040 |
| 63383D | Rear headliner fixings | 63383-24030 |
| 63665C | roof console mat | 63665-33020 |
| 81399G | COUVERCLE, OPTIQUE | 81399-33030 · 81399-33060 · 81399-33070 · 81399-33090 |
