Toyota CAMRY 中央扶手箱和支架 — Figure 5806

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 2 images and 10 PNC and OE references.

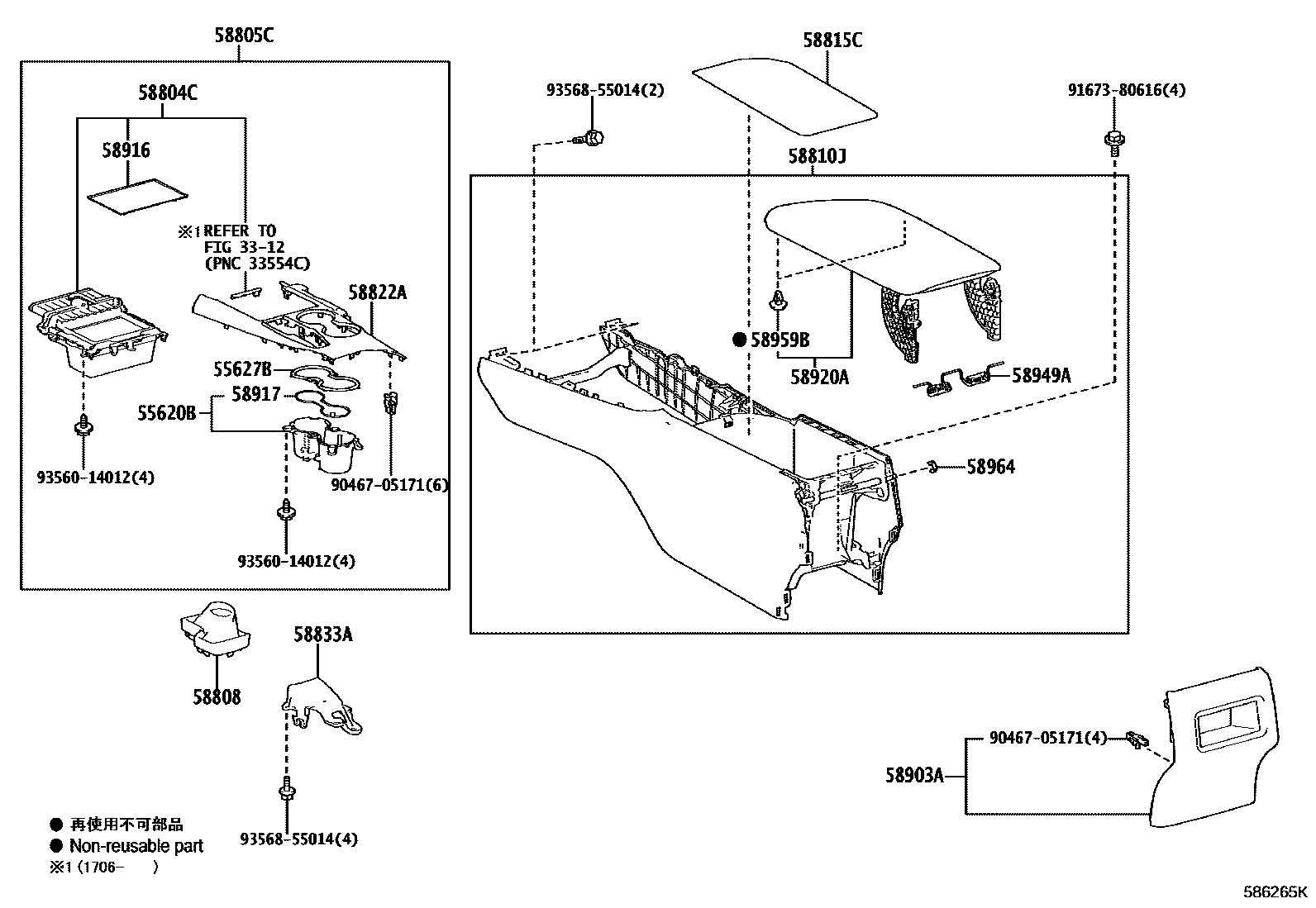

Toyota CAMRY 中央扶手箱和支架 EPC diagram — 586265K
中央扶手箱和支架 — 586265K (201703 – 999999)

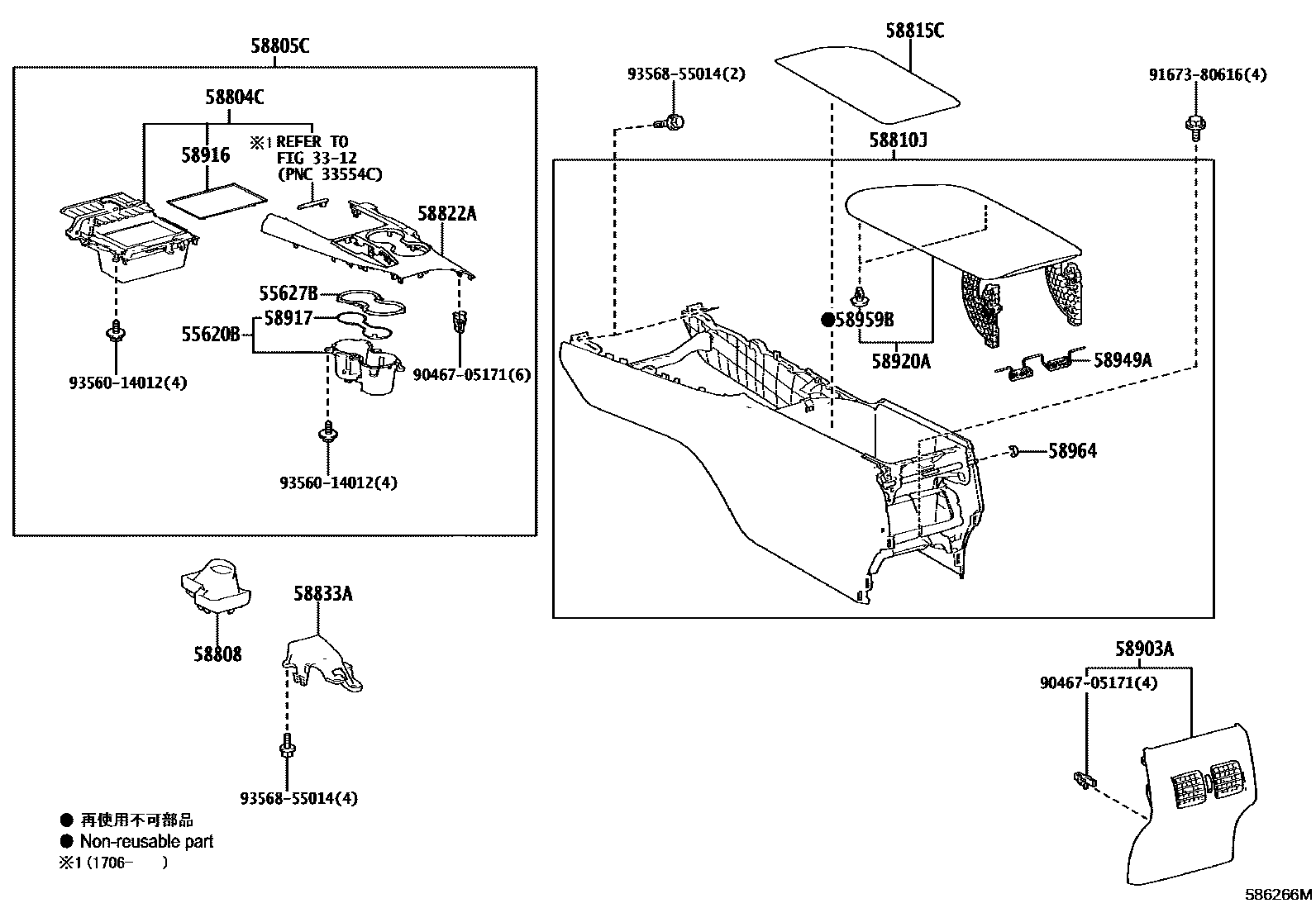

Toyota CAMRY 中央扶手箱和支架 EPC diagram — 586266M
中央扶手箱和支架 — 586266M (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
55620BDashboard cup holder55620-33390
55627BRAIL, PORTE-GOBELET BOITIER DE CONSOLE55627-33010
58804CFront armrest box insert sub-assembly58804-33A30 · 58804-33A40
58815CArmrest box felt pad58815-33170
58833AArmrest box upper cover58833-33100
58916Armrest box bottom pad58916-33120
58917Armrest box bottom pad No. 258917-33130
58949ARESSORT, SUPPORT FIX BOITE DE CONSOLE58949-33080
58959BArmrest box cover cushion58959-60060
58964Armrest box cover No. 1 stop58964-33040
