Toyota CAMRY 前围板和挡风玻璃 — Figure 5503

Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 15 PNC and OE references.

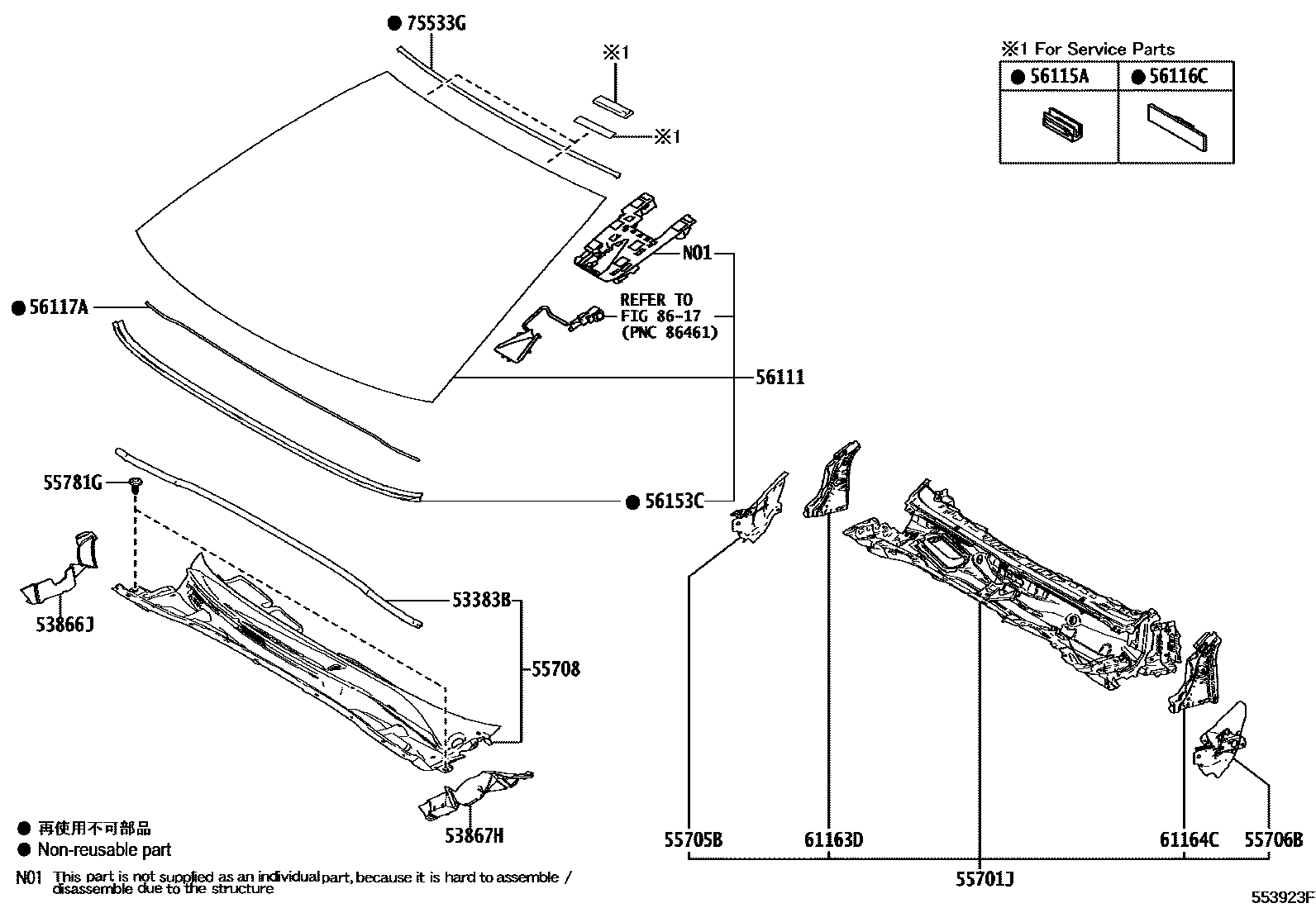

Toyota CAMRY 前围板和挡风玻璃 EPC diagram — 553923F
前围板和挡风玻璃 — 553923F (201703 – 201808)

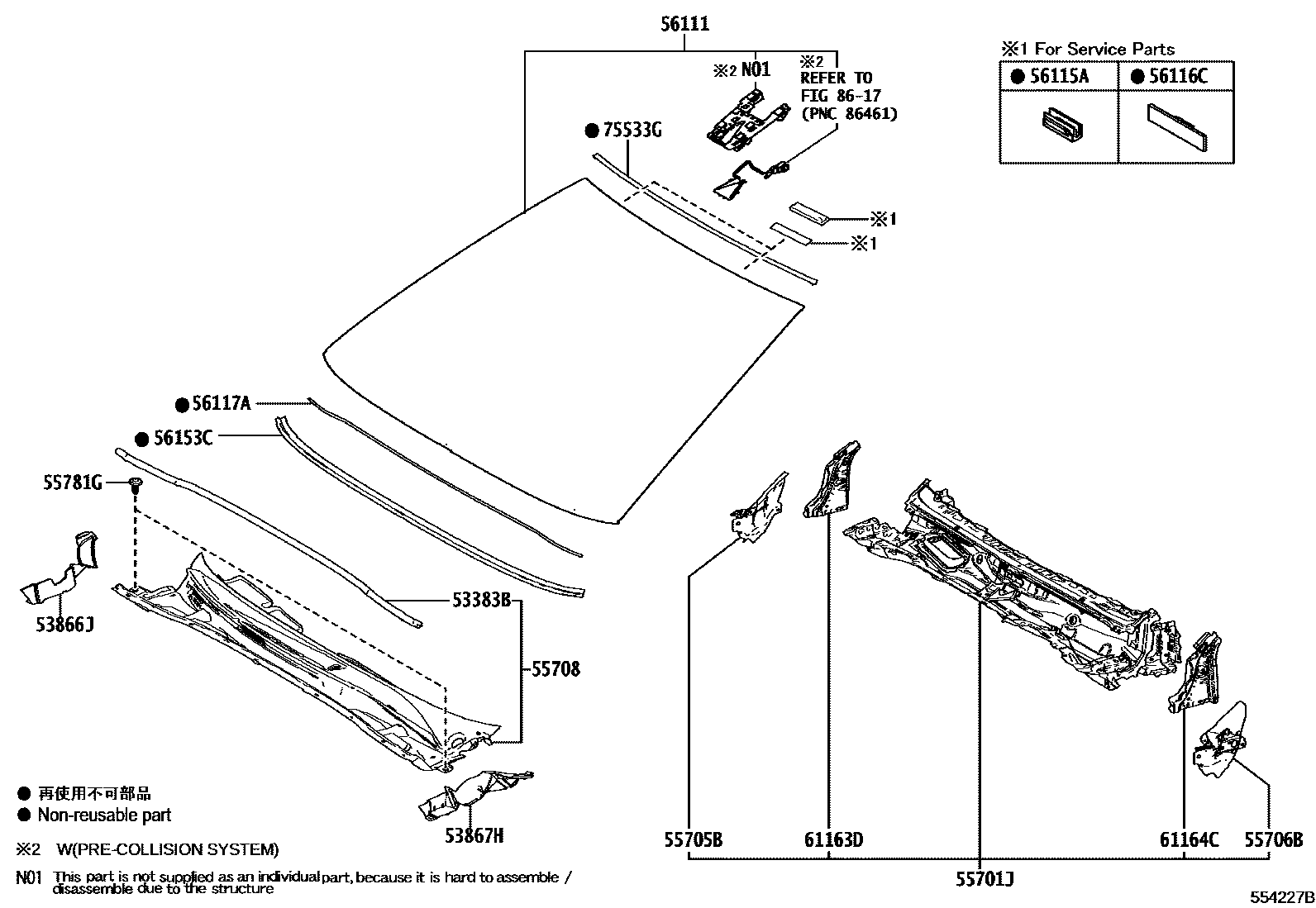

Toyota CAMRY 前围板和挡风玻璃 EPC diagram — 554227B
前围板和挡风玻璃 — 554227B (201808 – 999999)

PNC and OE references

PNCPart nameOE numbers
53383BEngine cover to cowl upper cover seal53383-33140
53866JRight front fender to cowl side seal53866-33090
53867HLeft front fender to cowl side seal53867-33090
55701JFront wall upper outer panel sub-assembly55701-33250
55705BRight front wall upper side panel sub-assembly55705-33040
55706BLeft front wall upper side panel sub-assembly55706-33040
55708SOUS-ENS. AERATEUR, VENTILATEUR DESSUS DE TABLIER55708-33270 · 55708-33271 · 55708-33300 · 55708-33301
55781GVentilation grille clips on front apron90467-09242
56111windshield56101-33996 · 56101-3T900 · 56101-3T902 · 56101-3T917 · 56101-3Y930 · 56101-3Y931 · 56101-3Y932 · 56101-3Y934
56115AWindshield block No. 156115-30120
56116CWindshield block 256116-22050
56153CFront center window inner protective strip56153-33010
61163DMONTANT, CARROSSERIE AVANT, INT INF MD61163-33020
61164CMONTANT, CARROSSERIE AVANT, INT INF MG61164-33020
75533GWindshield outer protective strip75531-33150
