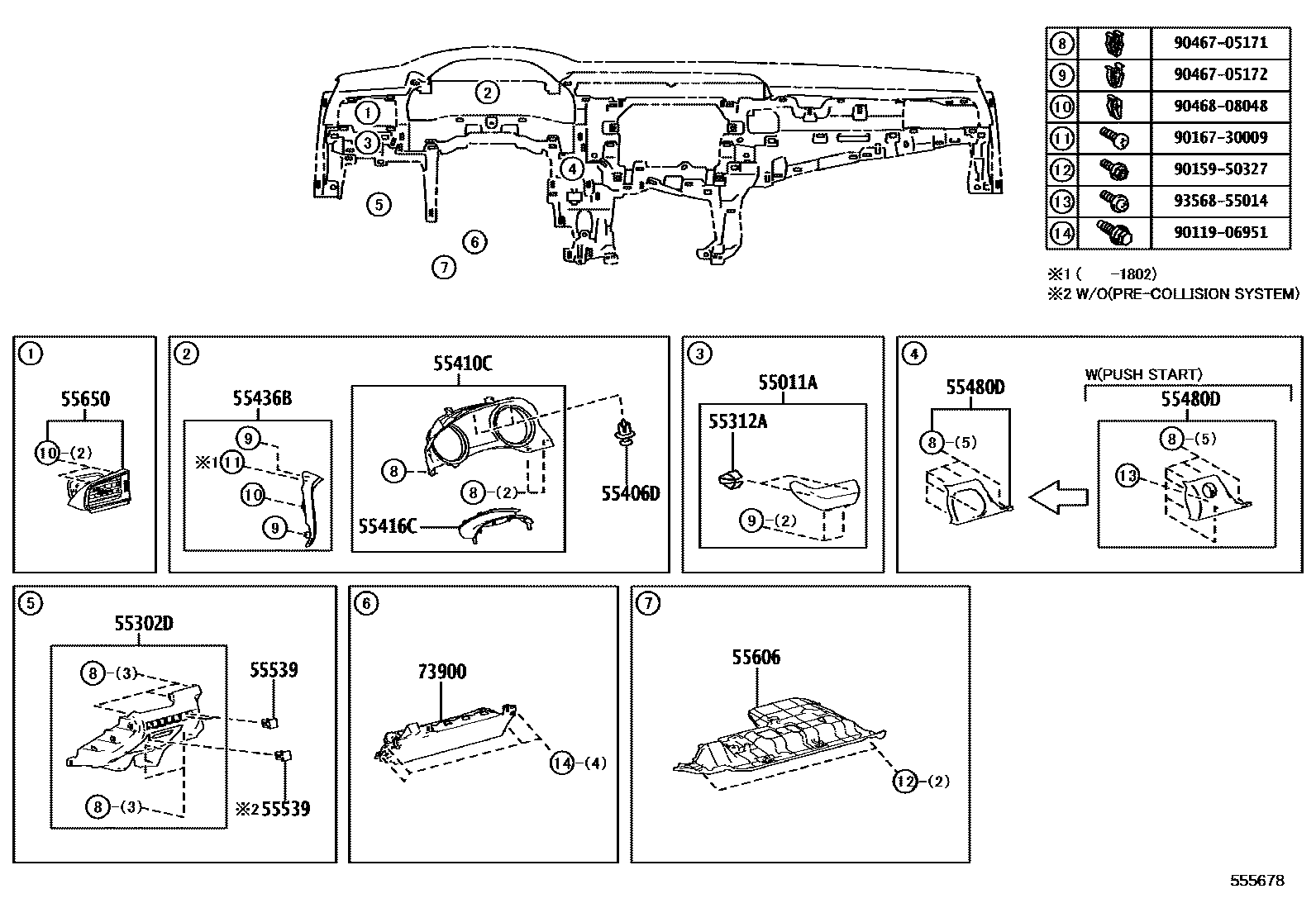

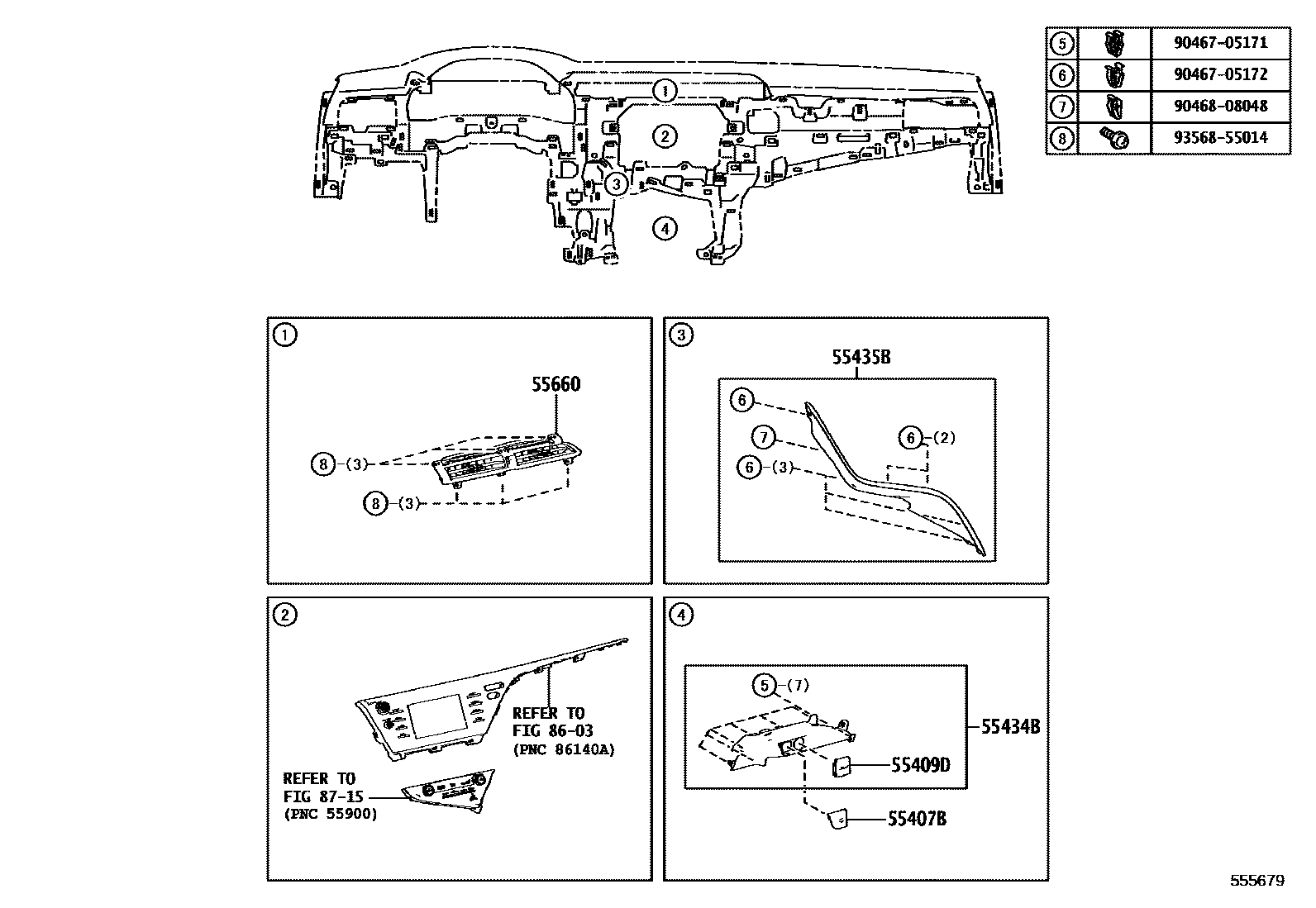

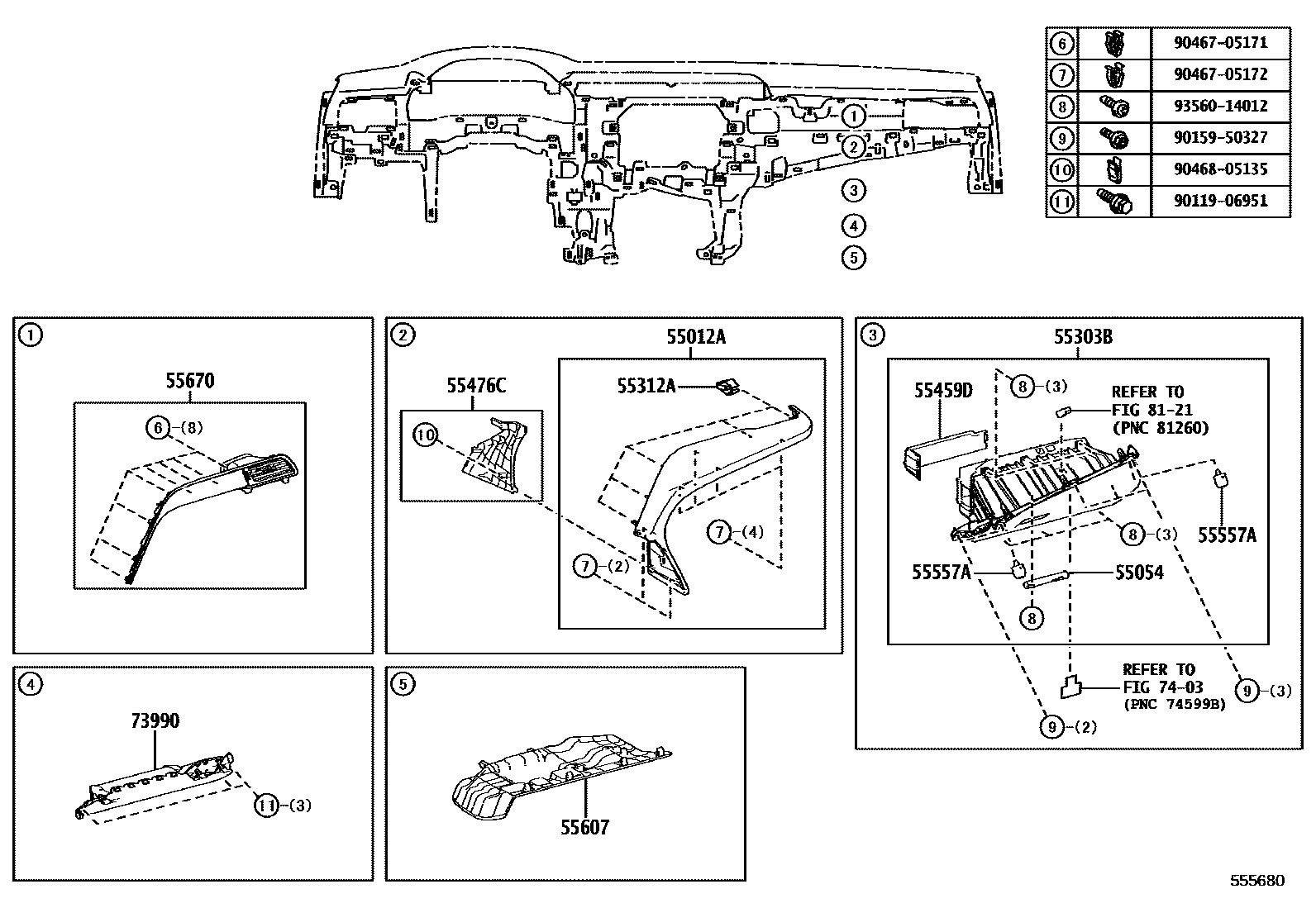

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-33140 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-33160 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-33190 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-33140 |
| 55317A | Dashboard right panel | 55317-33170 |
| 55318C | Dashboard left panel | 55318-33140 |
| 55328 | Instrument panel pin 1 | 55328-60090 |
| 55331 | Dashboard reinforcement | 55330-33430 |
| 55349A | Dashboard cushion | 55349-33060 |
| 55394 | SUPPORT, TABLEAU BORD A PEDALE | 55394-33120 |
| 55394B | Dashboard bolts | 90105-08473 |
| 55394C | Dashboard bolts | 90119-08D16 |
| 55401F | Clip (for safety mat) | 52161-16010 |
| 55410C | Instrument cluster decorative panel assembly | 55410-33080 |
| 55416C | Instrument cluster decorative panel fixings | 55416-33070 |
| 55435B | Instrument cluster No. 1 instrument cover | 55435-33100 |
| 55436B | Instrument cluster No. 2 instrument cover | 55436-33100 |
| 55459D | Instrument panel lower left cover | 55459-33070 |
| 55472C | PANNEAU, HAUT-PARLEUR DE TABLEAU DE BORD, NO.1 | 55472-33280 |
| 55473B | PANNEAU, HAUT-PARLEUR DE TABLEAU DE BORD, NO.2 | 55473-33130 |
| 55557A | Glove box cover limit pad | 55557-47050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-33030 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-33170 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-33440 · 55650-33500 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-33280 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-33160 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-33160 |
