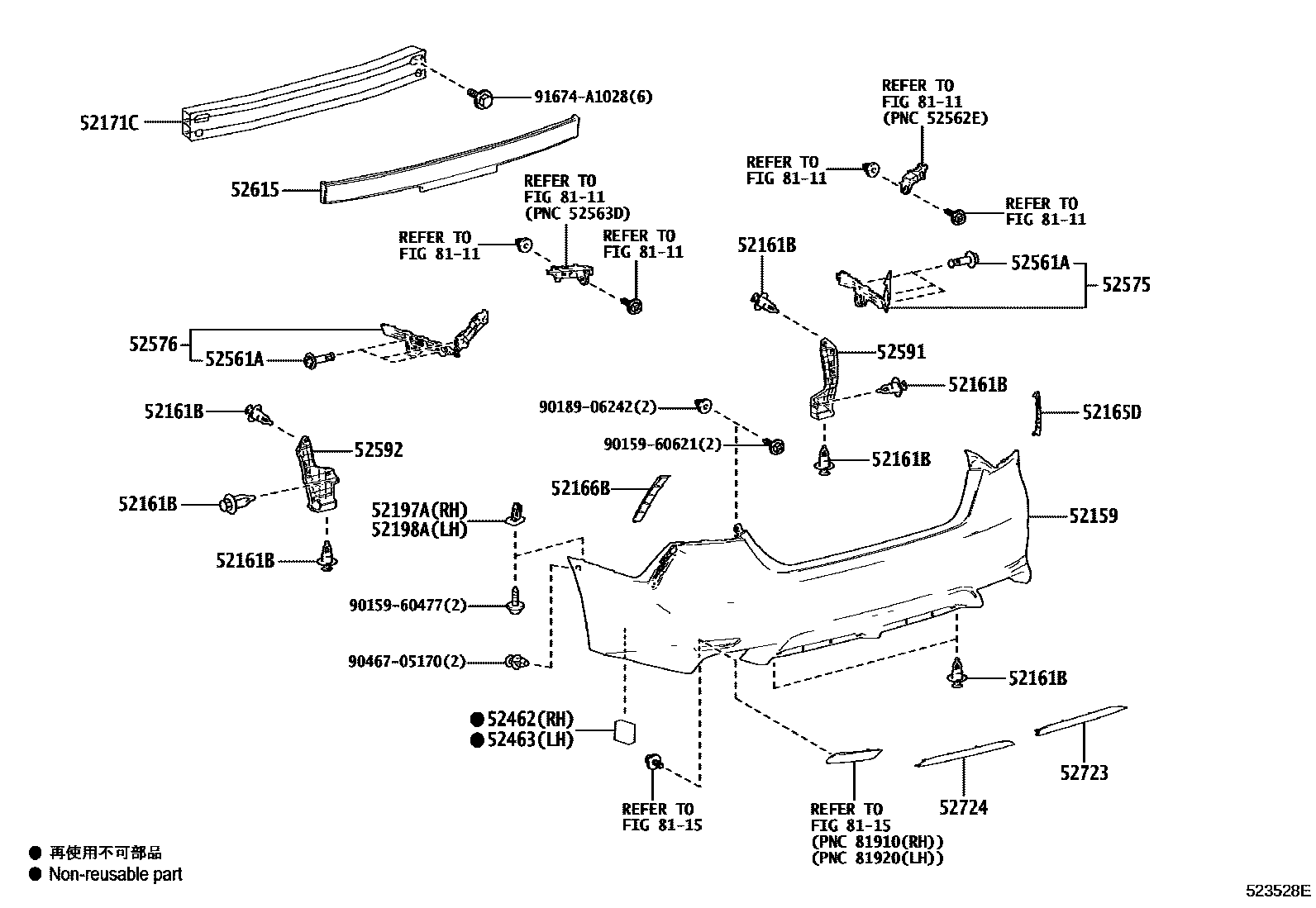

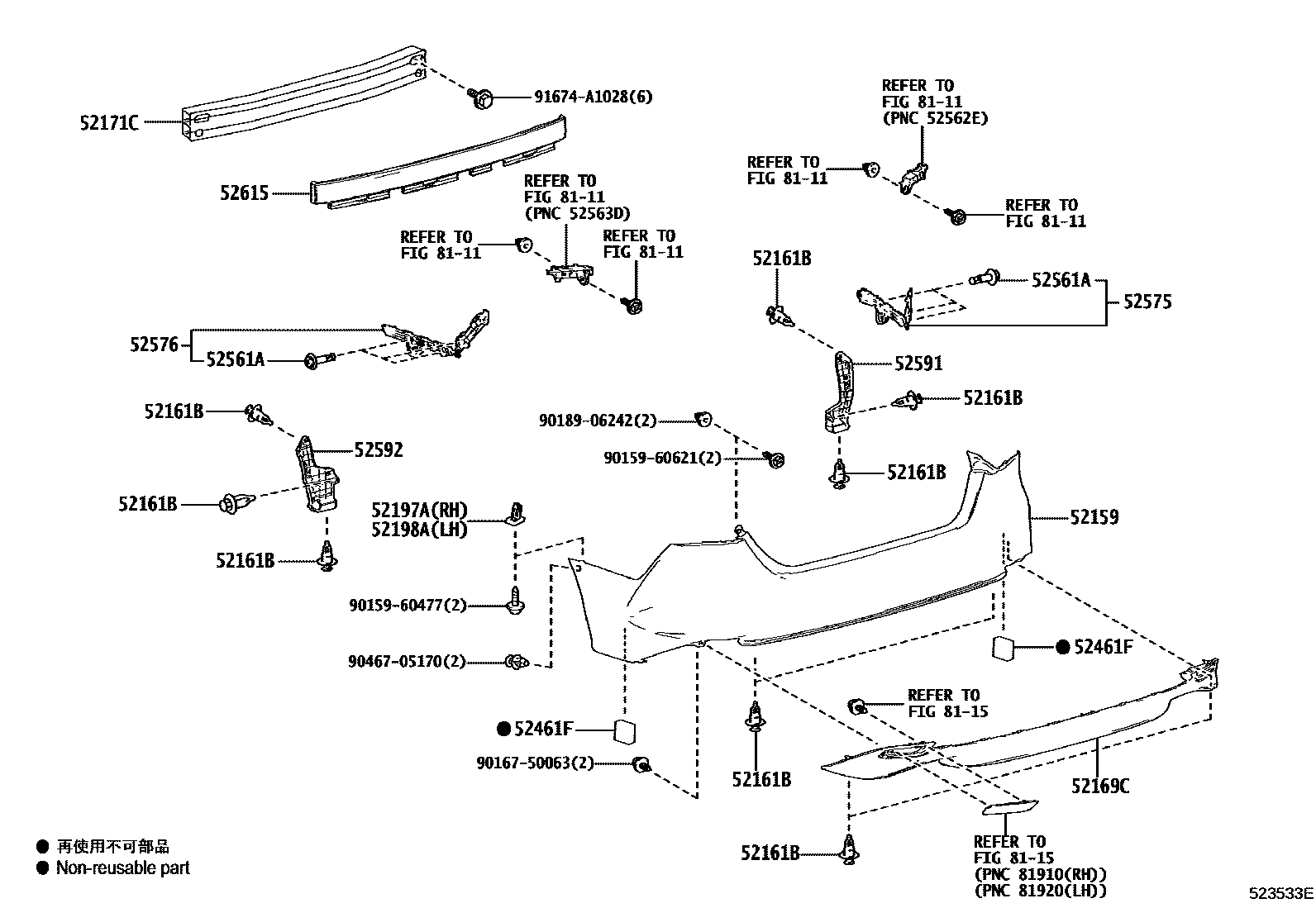

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-33958 · 52159-33962 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52165D | EXTENSION, ANGLE PARE-CHOCS ARRIERE, MD | 52165-33010 |
| 52166B | EXTENSION, ANGLE PARE-CHOCS ARRIERE, MG | 52166-33010 |
| 52169C | Rear bumper lower cover | 52169-33030 |
| 52171C | RENFORT PARE-CHOCS ARRIERE | 52171-33170 |
| 52197A | Rear bumper right seal support | 52197-53040 |
| 52198A | Rear bumper left seal support | 52198-53020 |
| 52461F | rear bumper lining | 52462-33050 |
| 52462 | Rear bumper right side lining | 52462-33060 |
| 52463 | Rear bumper left lining | 52463-33100 |
| 52561A | Clip (for rear bumper mount) | 90467-09237 |
| 52575 | Rear bumper right side fixing bracket | 52575-33130 |
| 52576 | Rear bumper left side fixing bracket | 52576-33130 |
| 52591 | Rear bumper right seal | 52591-33040 |
| 52592 | Rear bumper left seal | 52592-33040 |
| 52615 | Rear bumper energy absorber | 52615-33180 · 52615-33200 |
| 52723 | Rear bumper right extension protection strip | 52723-33010 |
| 52724 | Rear bumper left extension protection strip | 52724-33010 |
