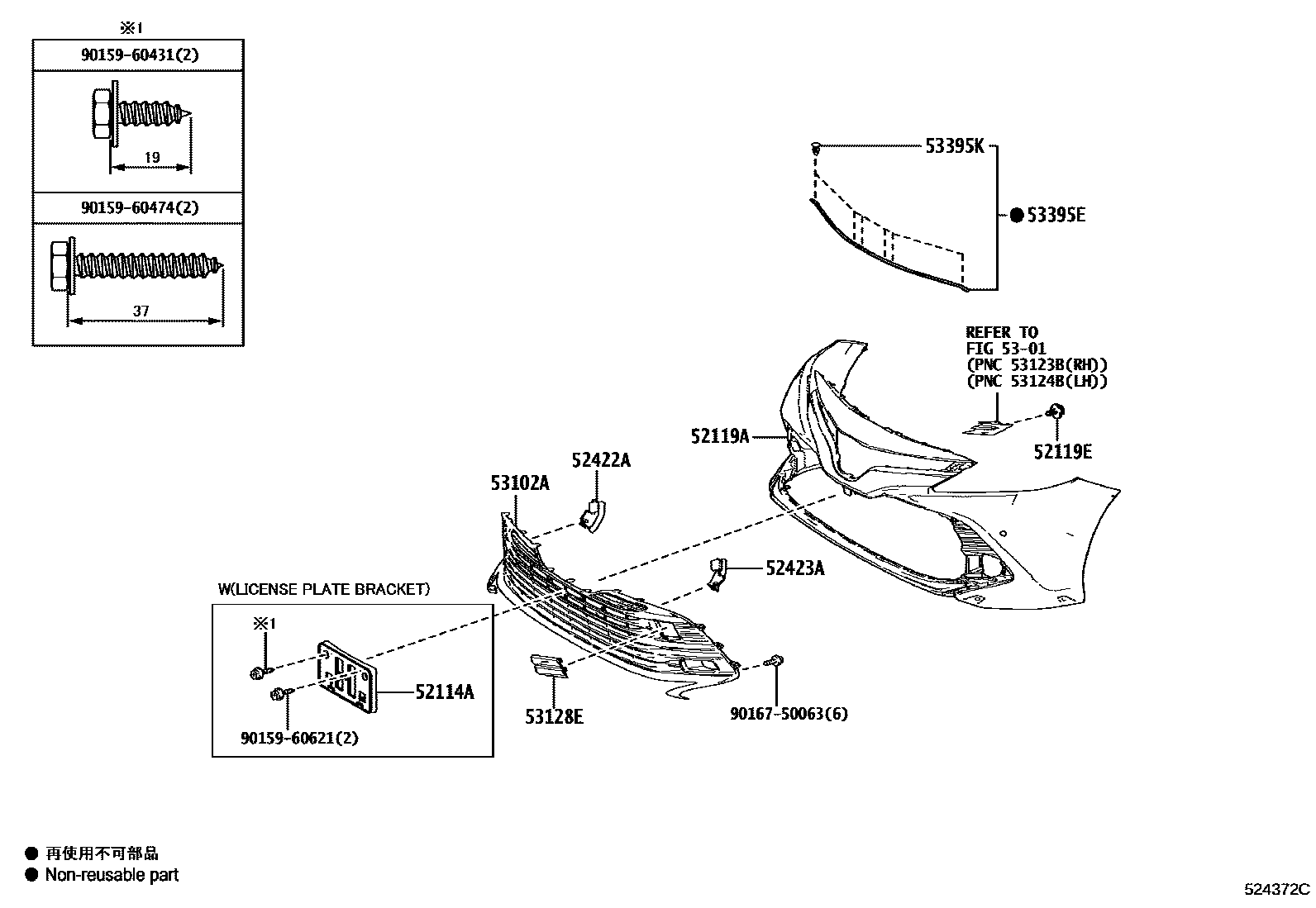

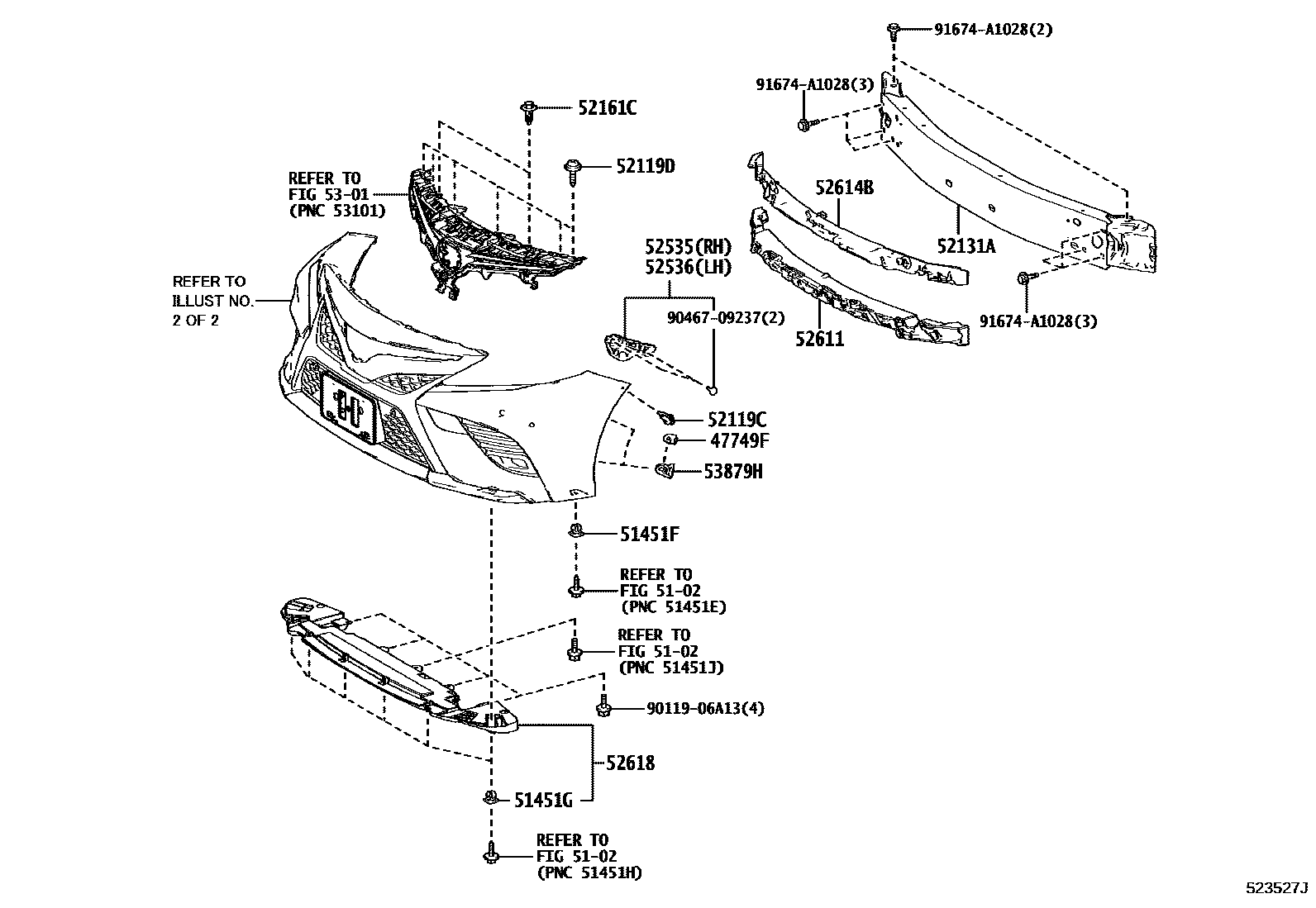

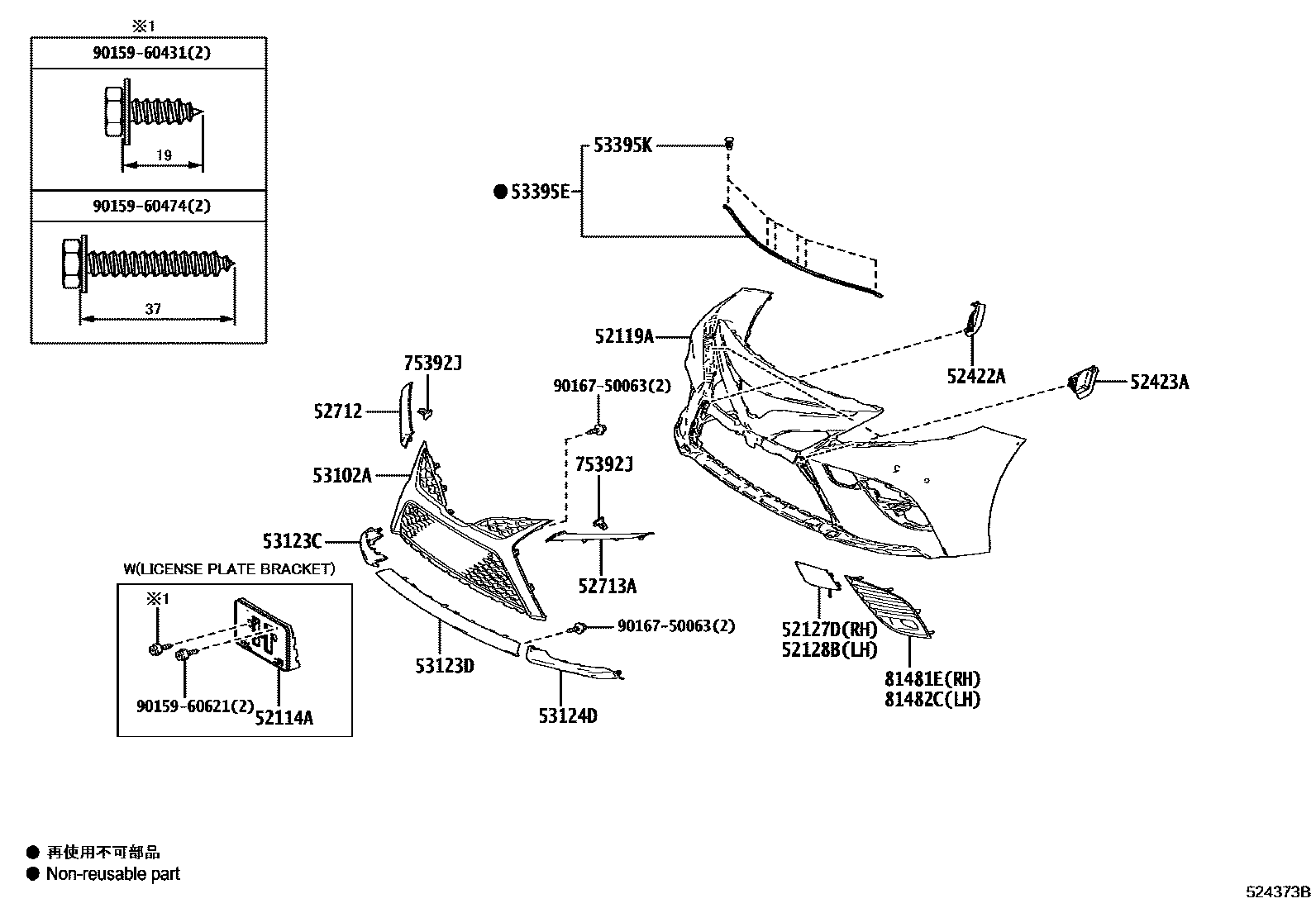

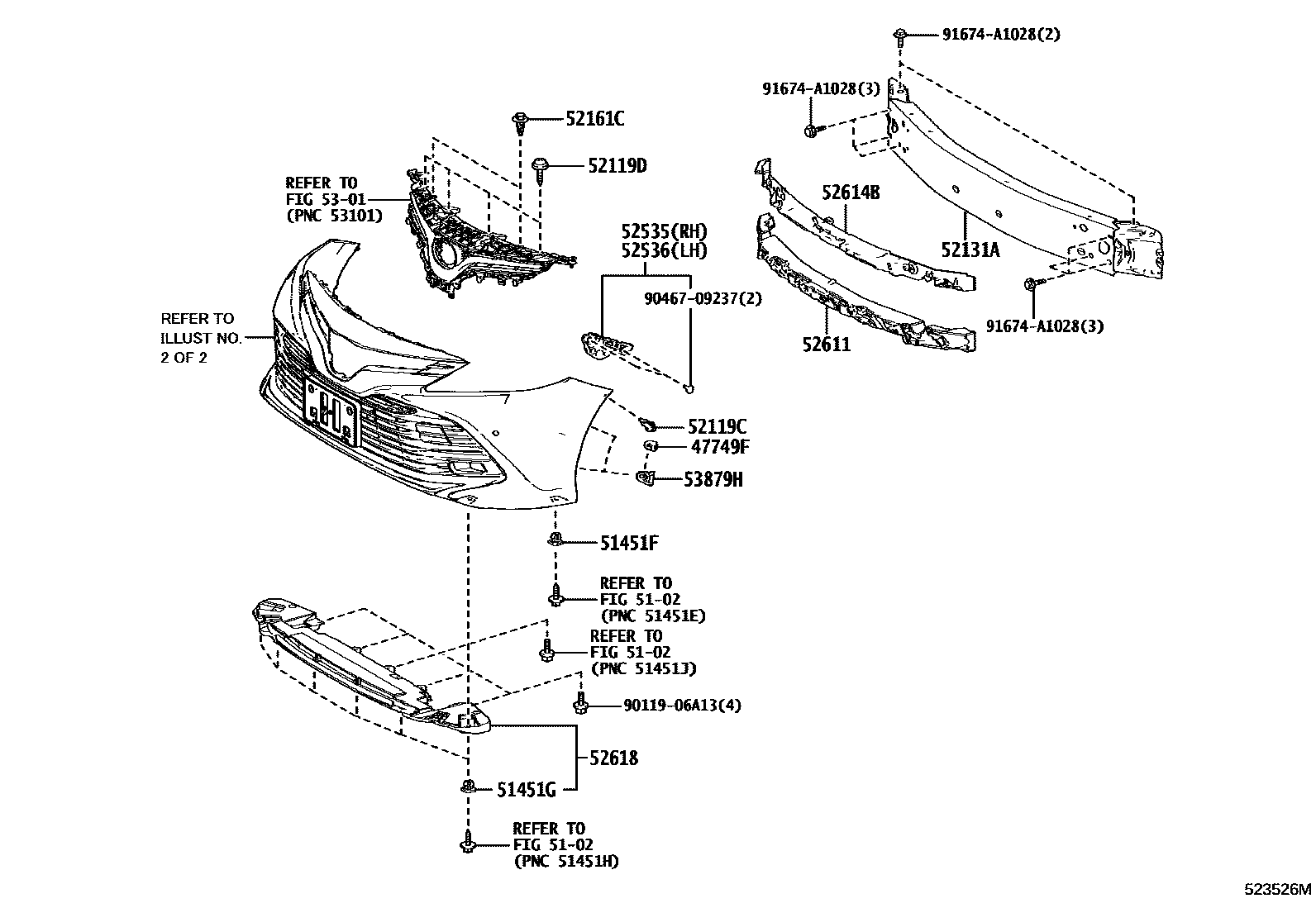

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | ATTACHE, BROCHE FIXATION | 47749-33030 |
| 51451F | OEILLET, NO.1 | 90189-06237 |
| 51451G | OEILLET, NO.2 | 90189-06237 |
| 52114A | Front bumper extension mounting bracket | 52114-33410 · 52114-33470 |
| 52119A | front bumper cover | 52119-3T930 · 52119-3T939 |
| 52119C | ATTACHE, PROTECTION PARE-CHOCS AVANT | 90467-05170 |
| 52119D | VIS, NO.1 | 90167-50063 |
| 52119E | VIS, NO.2 | 90167-50063 |
| 52127D | Front bumper right hole cover | 52127-33904 |
| 52128B | Front bumper left hole cover | 52128-33918 |
| 52131A | Front bumper reinforcement | 52021-33220 |
| 52161C | front bumper insert | 52161-16010 |
| 52422A | Front bumper right side lining | 52422-33010 · 52422-33020 |
| 52423A | Front bumper left lining | 52423-33010 · 52423-33020 |
| 52535 | Front bumper right side fixing bracket | 52535-33060 |
| 52536 | Front bumper left fixed bracket | 52536-33060 |
| 52611 | front bumper energy absorber | 52611-33310 |
| 52614B | ABSORBEUR CHOC NO. 2 PARE-CHOCS AVANT | 52614-33010 |
| 52618 | Front bumper lower shock absorber | 52618-33070 |
| 52712 | Front bumper right side protective strip | 52712-33030 |
| 52713A | Front bumper left protective strip | 52713-33030 |
| 53102A | SOUS-ENSEMBLE GRILLE, RADIATEUR, INFERIEURE | 53102-33130 · 53102-33280 |
| 53123C | Radiator grille lower right protective strip | 53123-33030 |
| 53123D | Radiator grille lower protective strip | 53122-33040 |
| 53124D | Radiator grille lower left protective strip | 53124-33050 |
| 53128E | GRILLE, RADIATEUR, COTE INFERIEUR MG | 53128-33030 |
| 53395E | Engine cover to front end plate seal | 53395-33030 · 53395-33040 |
| 53395K | CLIP(POUR LE CAPOT SUR JOINT PANNEAU EXTREMITE AVANT) | 90467-04032 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 75392J | External protective strip fixings | 75392-35220 |
| 81481E | Right fog light cover | 81481-33090 |
| 81482C | Left fog light cover | 81482-33090 |
