Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

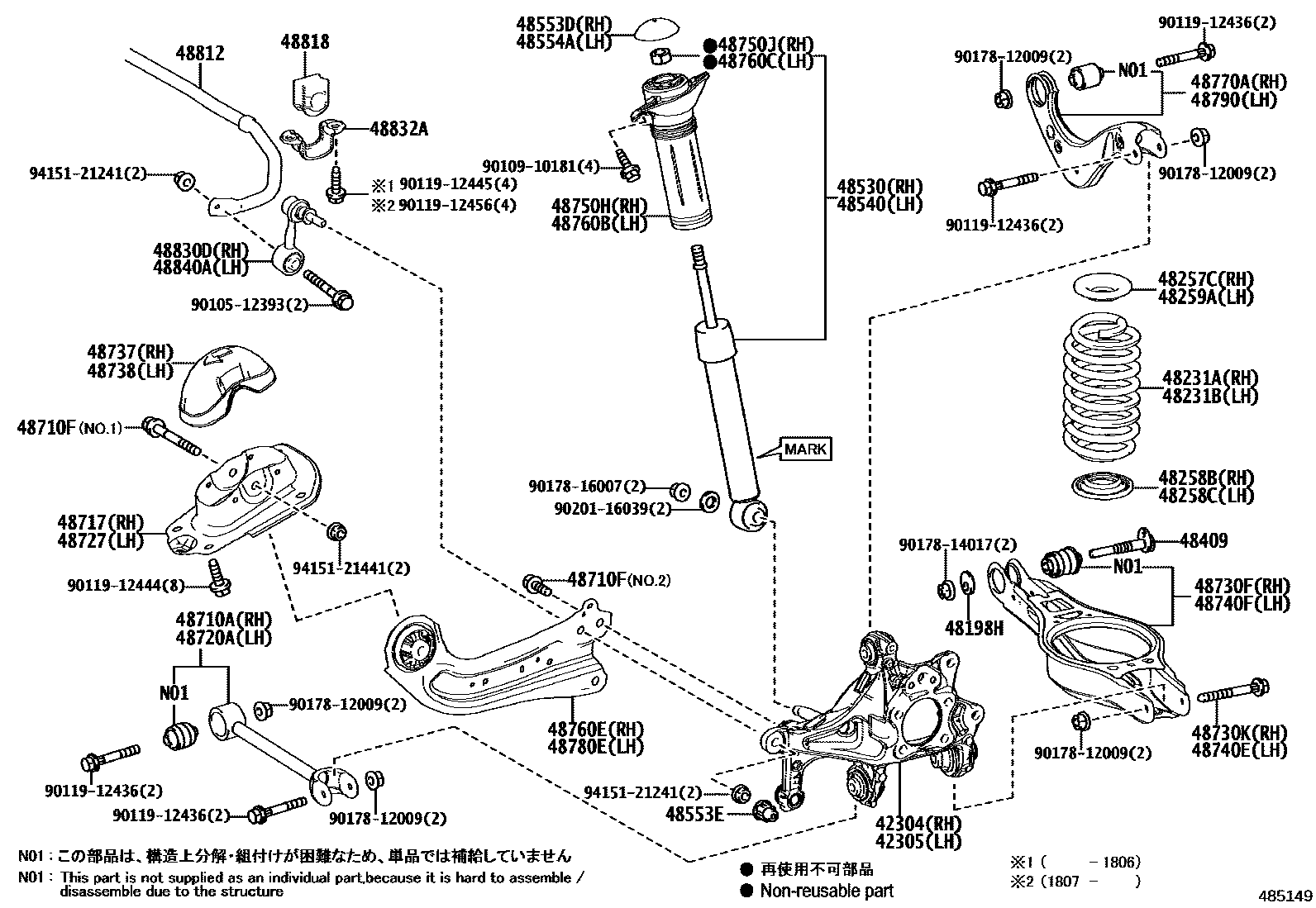

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-33050 |
| 42305 | Rear axle left bracket sub-assembly | 42305-33050 |
| 48198H | No. 2 camber angle adjustment cam | 48198-47010 |
| 48231A | Right rear coil spring | 48231-33710 · 48231-33720 |
| 48231B | Left rear coil spring | 48231-33710 · 48231-33720 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-47020 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-47010 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-47010 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-47020 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-47011 |
| 48530 | Right rear shock absorber assembly | 48530-80809 · 48530-80813 |
| 48540 | Left rear shock absorber assembly | 48530-80809 · 48530-80813 |
| 48553D | Right rear shock absorber cover | 48553-47010 |
| 48553E | CAPUCHON | 48553-52030 |
| 48554A | Left rear shock absorber cover | 48553-47010 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-33150 · 48710-33160 |
| 48710F | Bolt (for rear trailing arm) | 90105-14195 · 90105-14197 |
| 48717 | Right rear suspension arm bracket | 48717-47020 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-33150 · 48710-33160 |
| 48727 | Left rear suspension arm bracket | 48727-47020 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-33160 |
| 48730K | Bolt (for right rear suspension arm No. 2) | 90119-12426 |
| 48737 | Right rear suspension arm cover | 48753-47010 |
| 48738 | Left rear suspension arm cover | 48753-47020 |
| 48740E | Bolt (for left rear suspension arm No. 2) | 90119-12426 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-33160 |
| 48750H | Right rear suspension support assembly | 48750-33170 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 94130-61200 |
| 48760B | Left rear suspension support assembly | 48750-33170 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 94130-61200 |
| 48760E | Right rear trailing arm assembly | 48760-33160 · 48760-33170 |
| 48770A | Right rear upper control arm assembly | 48770-33020 |
| 48780E | Left rear trailing arm assembly | 48780-33080 · 48780-33090 |
| 48790 | Left rear upper control arm assembly | 48790-33020 |
| 48812 | rear stabilizer bar | 48812-33280 · 48812-33290 |
| 48818 | Rear stabilizer bar bushing | 48818-33130 |
| 48830D | Right rear stabilizer bar link assembly | 48830-47010 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-47010 |
| 48840A | Left rear stabilizer bar link assembly | 48830-47010 |
