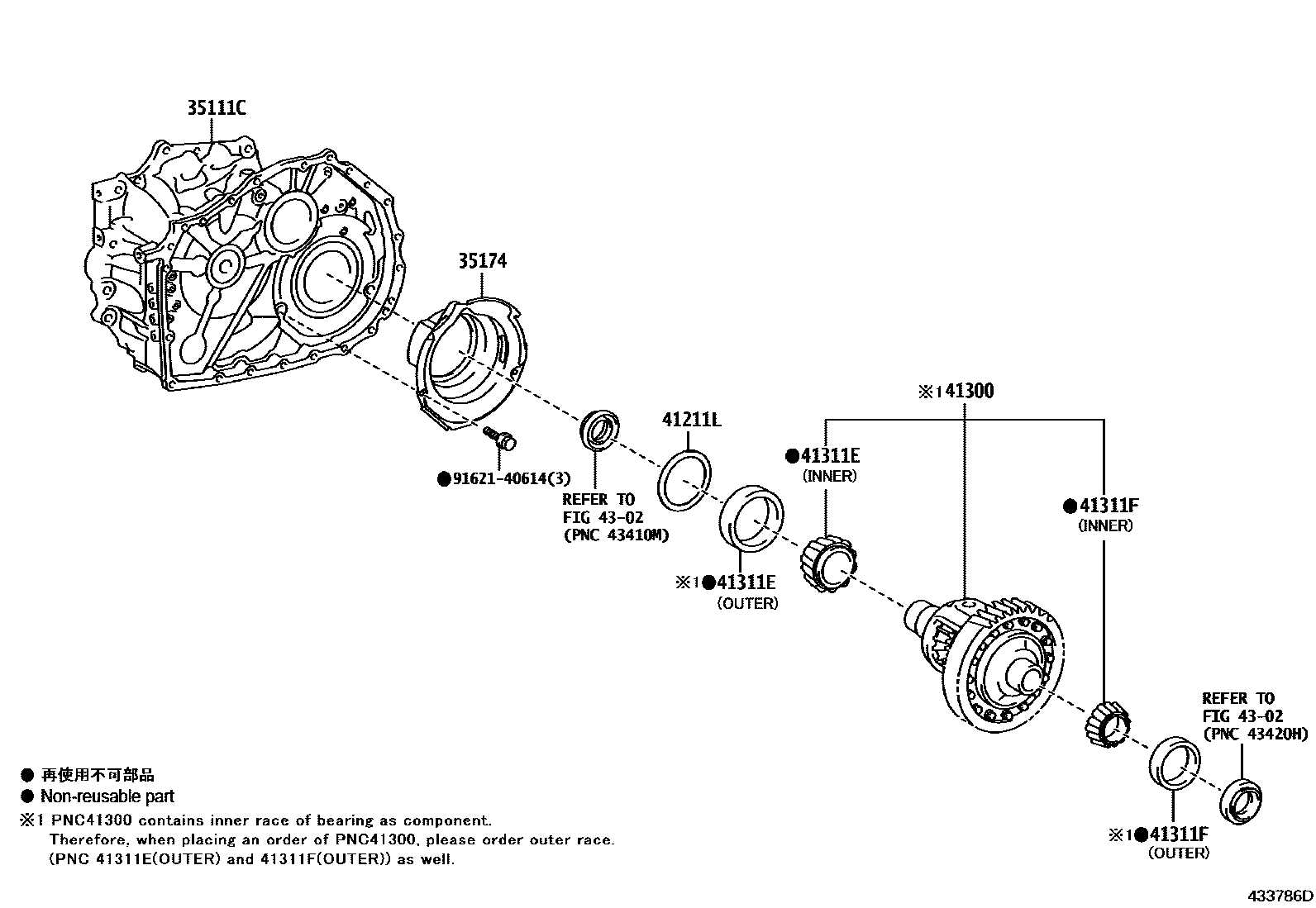

Toyota CAMRY 前桥壳和差速器 — Figure 4301
Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35111C | Transmission axle housing | 35105-33030 · 35105-33040 |
| 35174 | Transmission axle housing oil separator | 35174-33020 · 35174-33030 |
| 41211L | Spacer (for differential drive pinion) | 90564-75002 · 90564-75003 · 90564-75004 · 90564-75005 · 90564-75006 · 90564-75007 · 90564-75008 · 90564-75009 · 90564-75010 · 90564-75011 · 90564-75012 · 90564-75013 · 90564-75014 · 90564-75015 · 90564-75016 · 90564-75017 · 90564-75018 · 90564-75019 · 90564-75023 · 90564-75024 · 90564-75025 · 90564-75026 · 90564-75027 · 90564-75028 · 90564-75029 · 90564-75030 · 90564-75031 · 90564-75032 · 90564-75033 · 90564-75034 · 90564-75035 |
| 41300 | Front differential case assembly with ring gear | 41300-33010 · 41300-33030 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-57048 · 90366-57049 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50175 · 90366-50176 |
