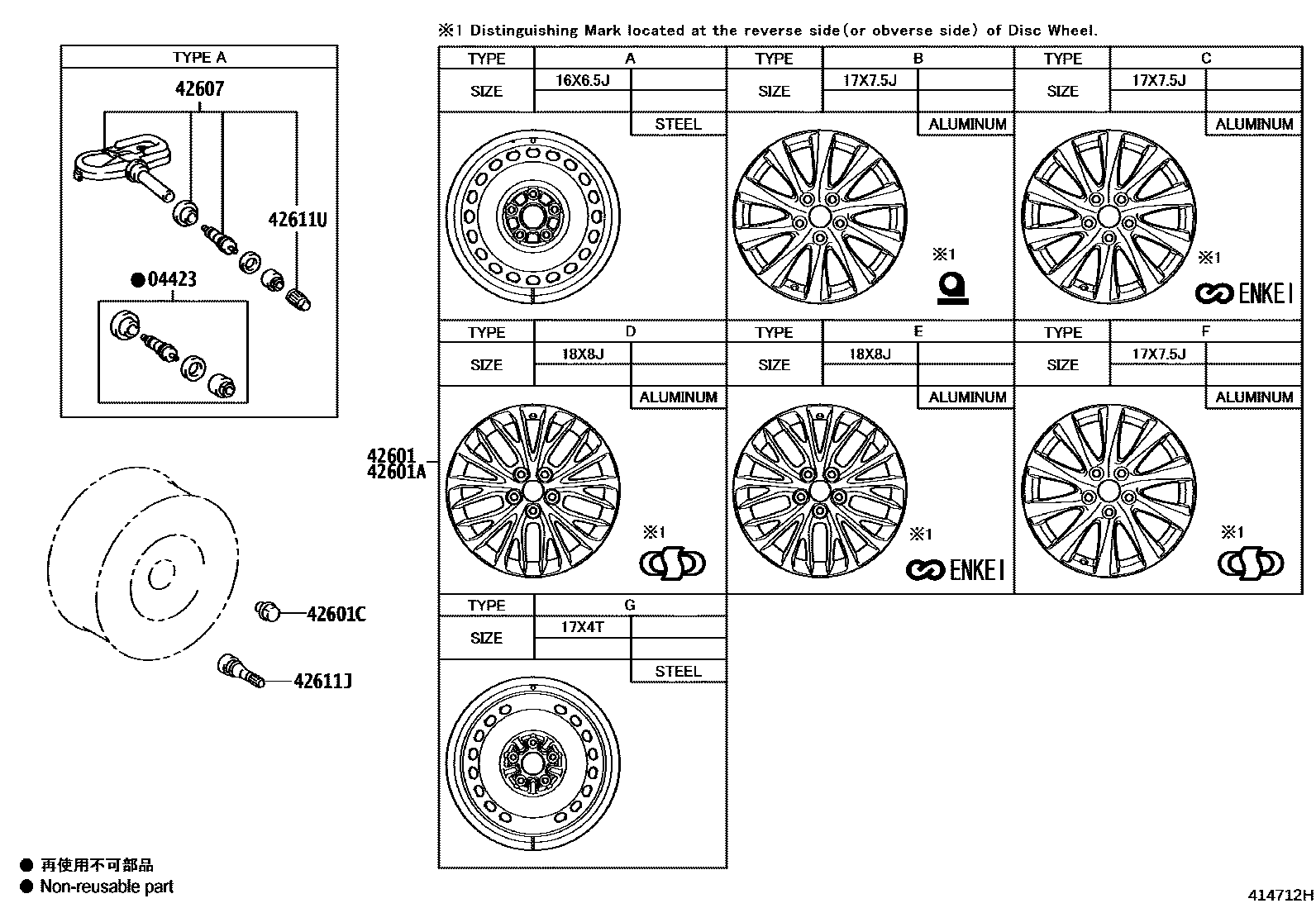

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 42601 | spoke wheel | 42611-33C00 · 42611-33C40 · 42611-33C60 · 42611-33D10 · 42611-33D30 |
| 42601A | Spoke wheel (for spare tire) | 42611-33E20 |
| 42601C | Hub nut (for axle) | 90942-01033 |

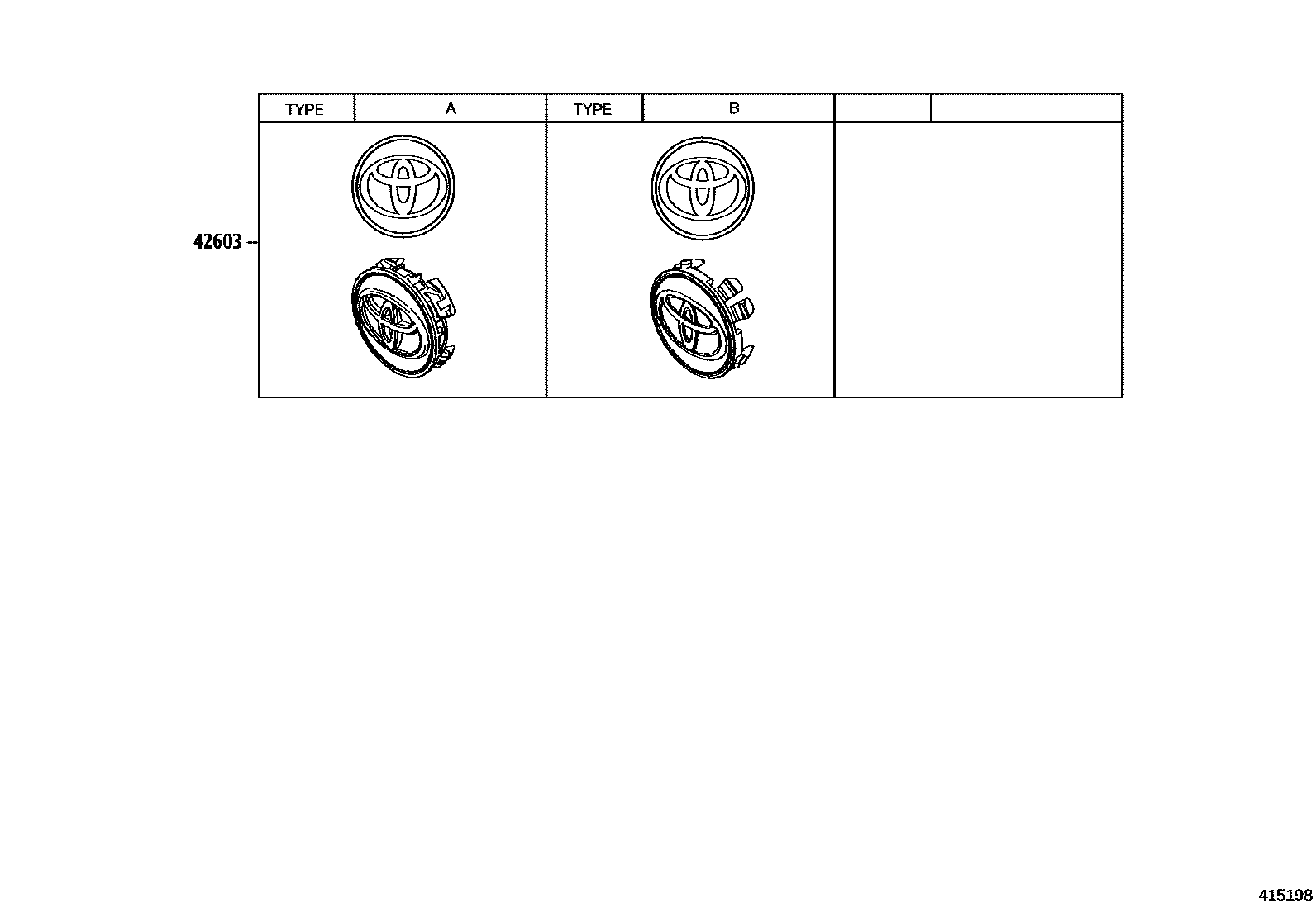

| 42603 | Wheel hub decorative parts sub-assembly | 42603-48140 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-33050 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
