Toyota CAMRY 节气阀连杆和阀杆(ATM) — Figure 3513

Toyota CAMRY EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 1 images and 12 PNC and OE references.

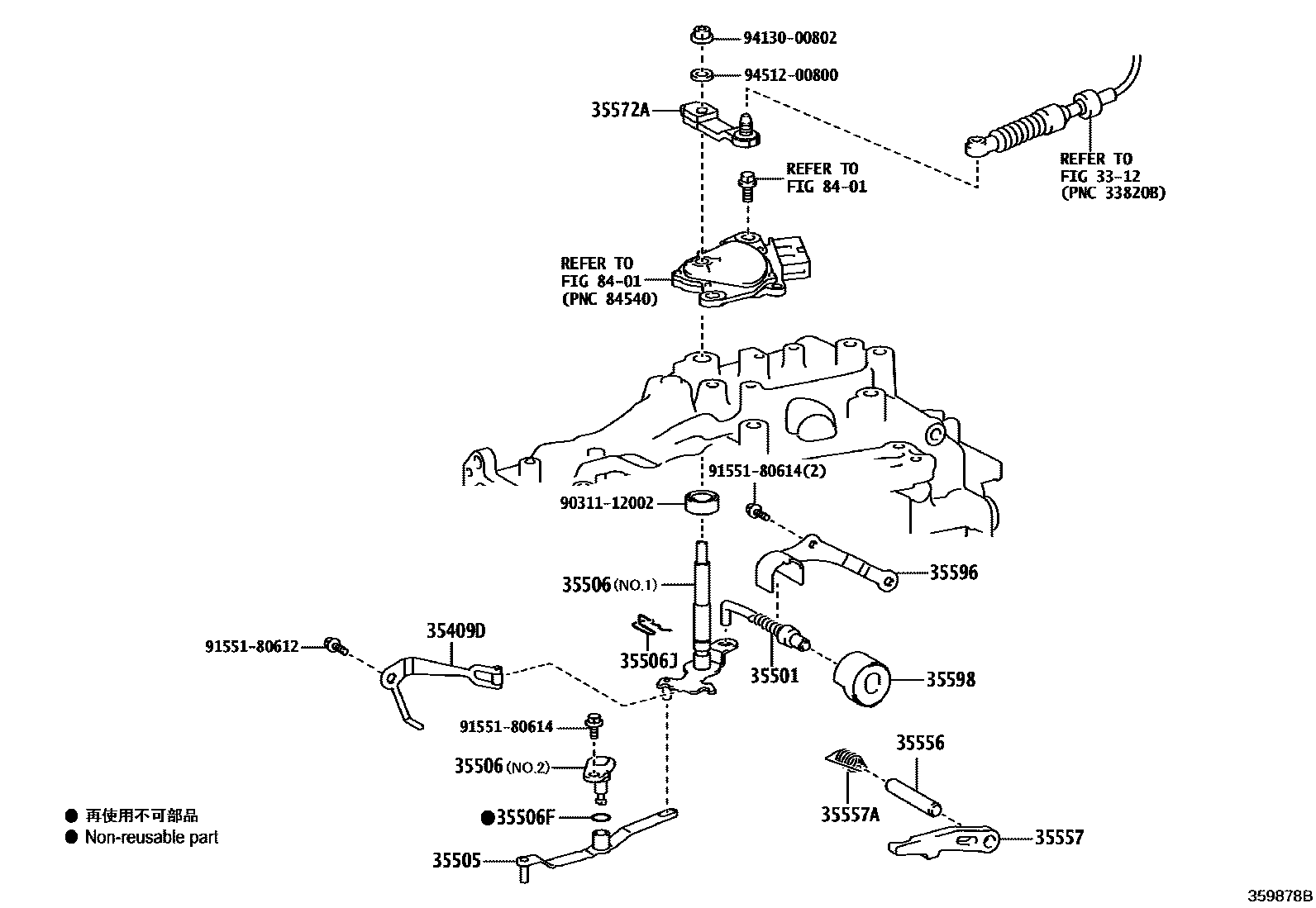

Toyota CAMRY 节气阀连杆和阀杆(ATM) EPC diagram — 359878B
节气阀连杆和阀杆(ATM) — 359878B (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
35409DManual lock spring sub-assembly35409-48060
35501Parking lock lever sub-assembly35501-33030
35505Manual valve stem sub-assembly35502-33010
35506Manual valve stem shaft sub-assembly35503-48010 · 35506-33030 · 35506-33040
35506FOil seal (for manual valve stem shaft)90301-09173
35506JStop spring (for manual valve stem shaft)90524-09004
35556Parking lock pawl shaft35556-48030 · 35556-48040
35557Parking pawl35557-33040
35557ATorsion spring (for parking pawl)90508-29030
35572Atransmission control lever35572-48050
35596Claw block35596-33020
35598Parking lock cover35598-48040
