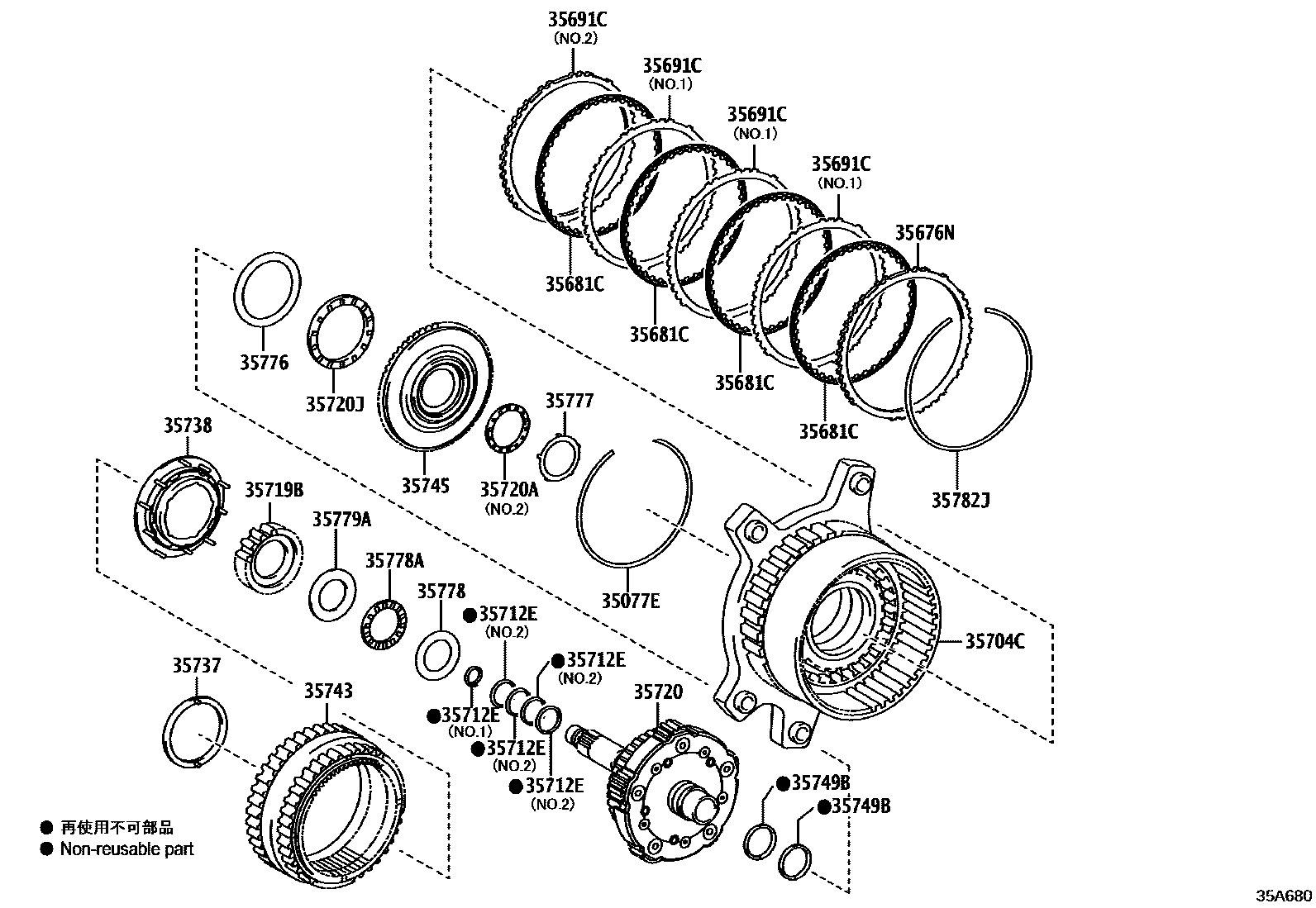

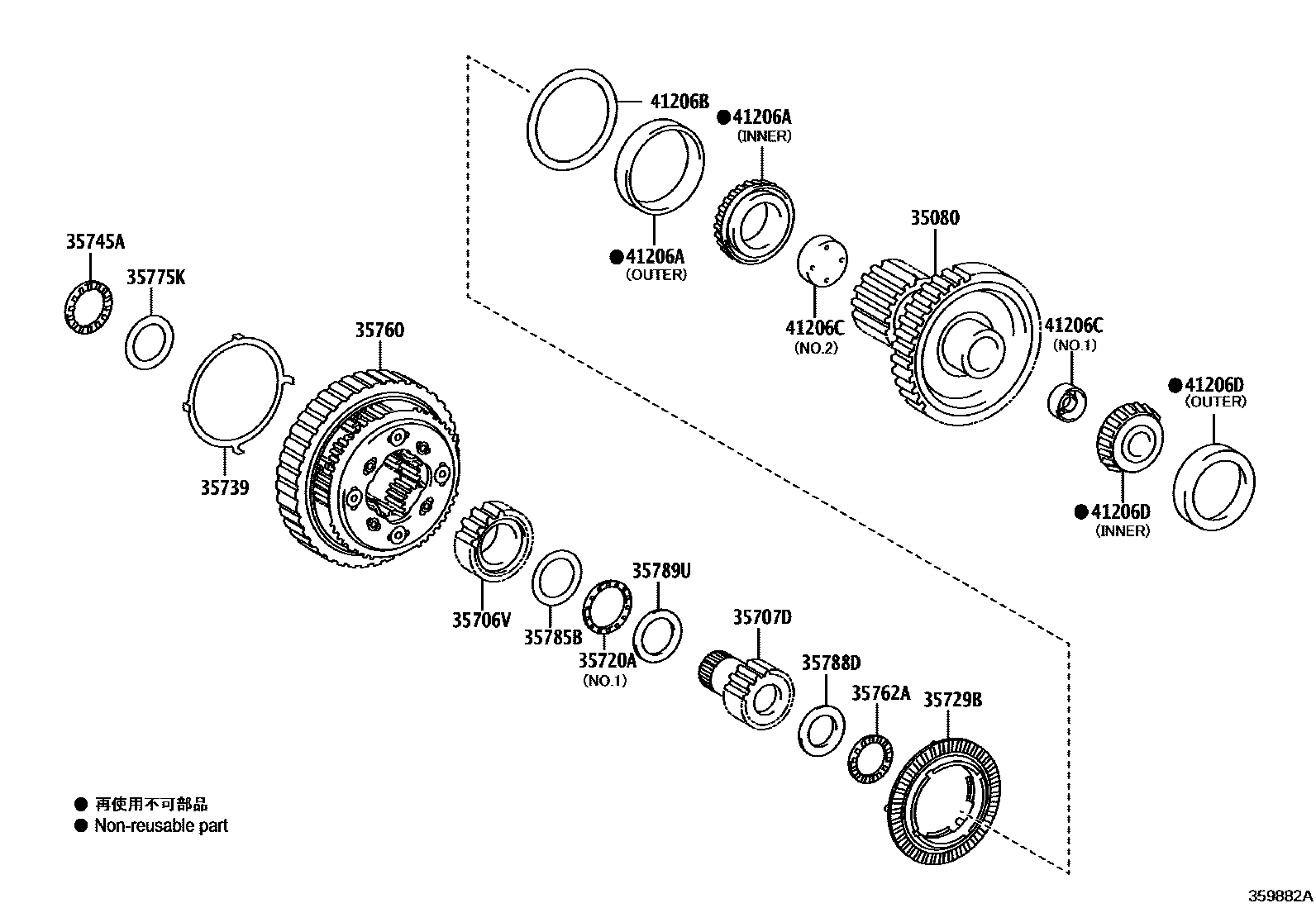

Toyota CAMRY 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510
Toyota CAMRY EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35077E | Snap ring (for rear planetary gear flange) | 90521-99190 |
| 35080 | ENS. ENGRENAGES, PIGNON ENTRAINE ET PIGNON DE DIFFERENTIEL | 35080-33010 · 35080-33020 |
| 35676N | BRIDE, FREIN, NO.1 | 35676-33510 · 35676-33520 · 35676-33530 · 35676-33540 · 35676-33550 · 35676-33560 · 35676-33570 · 35676-33580 · 35676-33590 · 35676-33600 · 35676-33610 · 35676-33620 · 35676-33630 · 35676-33640 |
| 35681C | DISQUE, FREIN, NO.1 | 35681-33030 · 35681-33031 |
| 35691C | PLAQUE, FREIN, NO.1 | 35691-33040 · 35691-33050 |
| 35704C | SOUS-ENS PIGNON, ENTRAINEMENT INTERMEDIAIRE | 35704-33020 · 35704-33021 · 35704-33030 · 35704-33031 |
| 35706V | Planetary gear train sun gear sub-assembly | 35706-33030 · 35706-33040 |
| 35707D | SS-ENSEMBLE ENGRENAGE, ENGRENAGE PLANETAIRE ARRIERE | 35707-33010 · 35707-33020 |
| 35712E | BAGUE, JOINT D'HUILE DE L'ARBRE D'ENTREE | 35617-60030 · 35712-33030 · 35712-48020 |
| 35719B | planetary gear system sun gear | 35719-33020 |
| 35720 | Front planetary gear assembly | 35720-33080 · 35720-33090 |
| 35720A | Thrust needle roller bearing (for front planetary gear) | 90374-29009 · 90374-35009 |
| 35720J | Front thrust needle roller bearing (for planetary gears) | 90374-57007 |
| 35729B | RONDELLE, POUSSEE DU PORTE-PLAQUETTE PLANETAIRE, NO.4 | 35729-33010 |
| 35737 | Planetary gear carrier thrust washer | 35737-48050 · 35737-48080 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-33040 |
| 35739 | No. 3 planetary gear carrier thrust washer | 35739-33020 |
| 35743 | Front planetary ring gear | 35743-33060 |
| 35745 | Front planetary gear flange | 35745-33030 · 35745-33040 |
| 35745A | BUTEE, A ROULEAUX AVC AIGU.(PR FLASQUE D'ENGR. PLANET. AV.) | 90374-29010 |
| 35749B | BAGUE, JOINT D'HUILE DE L'ARBRE D'ENTREE, ARRIERE | 35749-33010 |
| 35760 | Rear planetary gear assembly | 35760-33070 · 35760-33080 |
| 35762A | Thrust needle roller bearing (for rear planetary gear flange) | 90374-21011 |
| 35775K | BAGUE, PALIER DE BUTEE, NO.5 | 35775-33030 |
| 35776 | Main reduction driven gear | 35776-33010 |
| 35777 | No. 7 thrust bearing race | 35777-33010 |
| 35778 | No. 8 thrust bearing race | 35778-33010 |
| 35778A | Thrust needle roller bearing | 90374-28019 |
| 35779A | No. 9 thrust bearing race | 35779-33010 |
| 35782J | snap ring | 90521-99200 |
| 35785B | No. 4 thrust bearing race | 35785-33030 |
| 35788D | No. 3 thrust bearing race | 35788-33030 |
| 35789U | thrust bearing race | 35789-33040 |
| 41206A | ROULEMENT, A ROULEAUX CONIQUES, NO.2 | 90366-39003 · 90366-39004 |
| 41206B | CALE(POUR ENGRENAGE MENE PAR PIGNON ET COMPTEUR) | 90564-61127 · 90564-61128 · 90564-61129 · 90564-61130 · 90564-61131 · 90564-61132 · 90564-61133 · 90564-61134 · 90564-61135 · 90564-61136 · 90564-61137 · 90564-61138 · 90564-61139 · 90564-61140 · 90564-61141 · 90564-61142 · 90564-61143 · 90564-61144 · 90564-61145 · 90564-61146 · 90564-61147 · 90564-61148 · 90564-61149 · 90564-61150 · 90564-61151 · 90564-61152 · 90564-61153 · 90564-61154 · 90564-61155 · 90564-61156 · 90564-61157 · 90564-61158 · 90564-61159 · 90564-61160 · 90564-61161 |
| 41206C | BOUCHON ETANCHE (POUR PIGNON DE COMMANDE DIFFERENTIELLE) | 90331-21004 · 90331-26002 |
| 41206D | ROULEMENT, A ROULEAUX CONIQUES, NO.1 | 90366-33018 · 90366-33019 |
