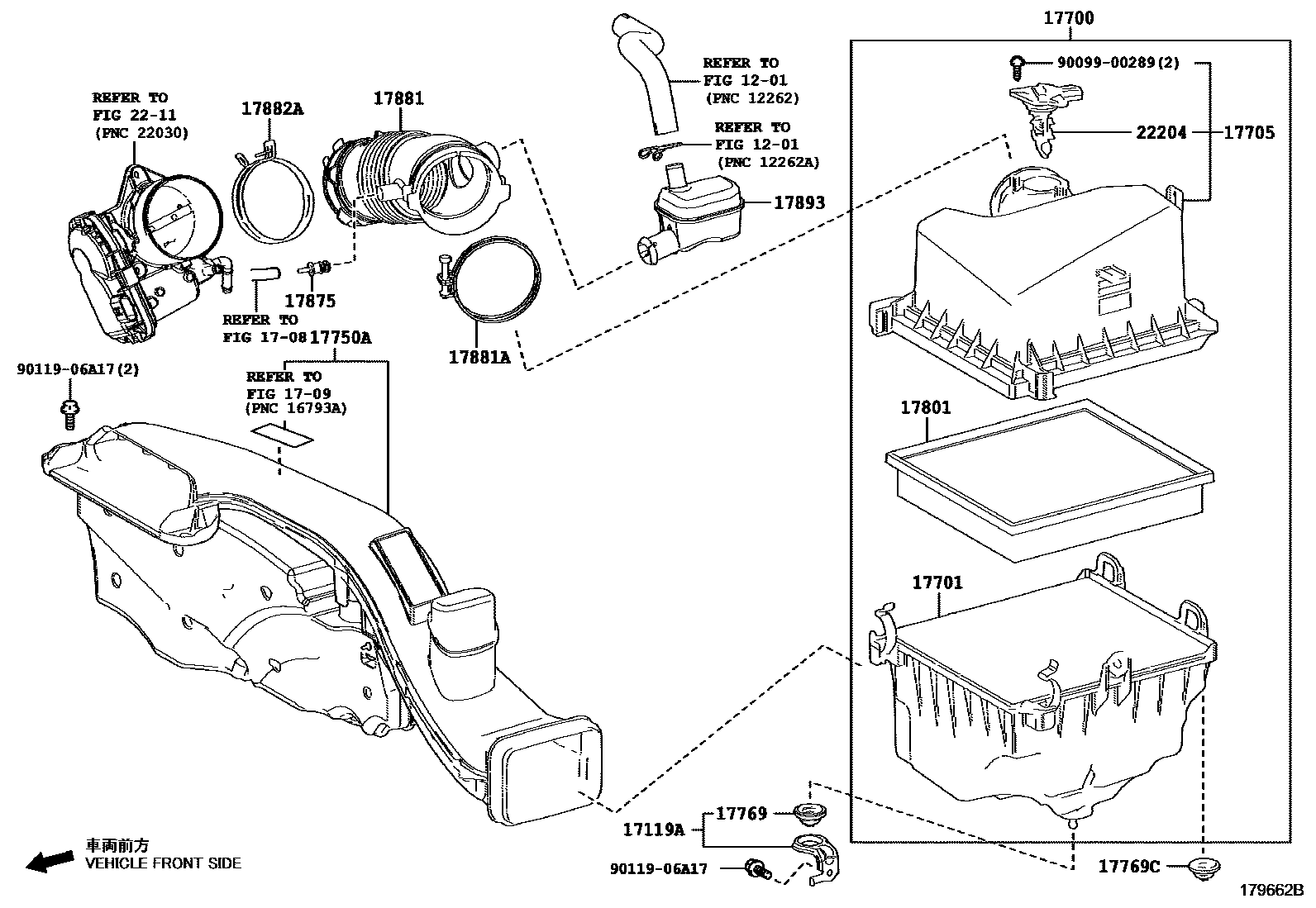

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-25010 |
| 17700 | air filter assembly | 17700-25070 |
| 17701 | Air filter housing sub-assembly | 17701-25070 |
| 17705 | Air filter cover sub-assembly | 17705-25040 |
| 17750A | Air filter air inlet assembly | 17750-25010 |
| 17769 | air filter bracket | 17769-25020 · 17769-38020 |
| 17769C | SUPPORT, FILTRE A AIR, NO.1 | 17769-25020 · 17769-38020 |
| 17801 | Air filter element sub-assembly | 17801-25020 |
| 17875 | Intake connecting pipe | 17875-25010 |
| 17881 | No. 1 air cleaner hose | 17881-25020 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10880 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-71001 |
| 17893 | Intake resonator | 17893-25040 |
| 22204 | Intake air flow meter assembly | 22204-75040 |
