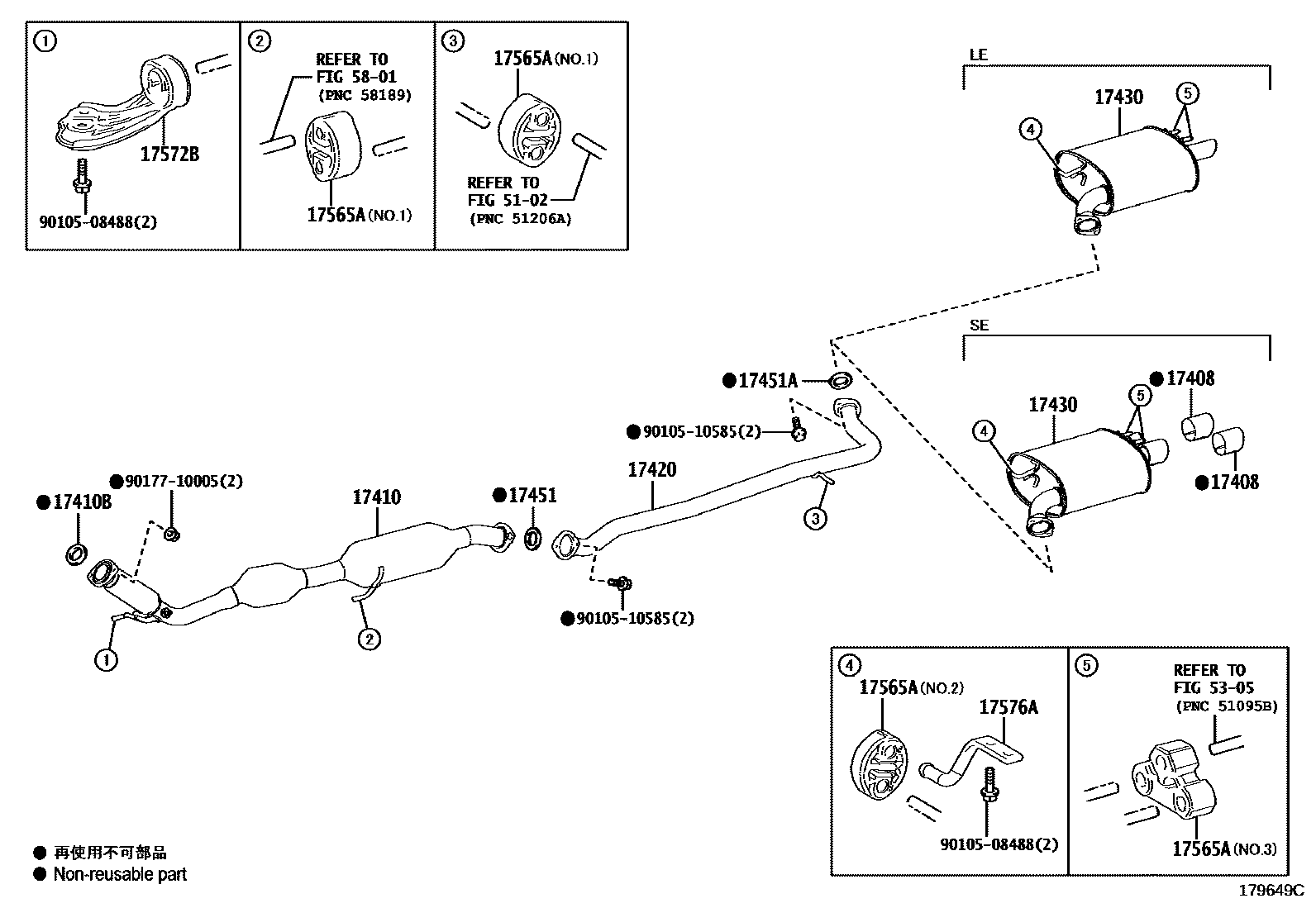

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17448-31160 |
| 17410 | Front exhaust pipe assembly | 17410-25100 |
| 17410B | Exhaust pipe gasket | 90917-06094 |
| 17420 | Central exhaust pipe assembly | 17420-25040 |
| 17430 | Exhaust tailpipe assembly | 17430-25130 · 17430-25150 |
| 17451 | Exhaust pipe gasket | 90917-06090 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06078 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-22040 · 17565-31040 · 17566-25010 |
| 17572B | No. 2 exhaust pipe bracket | 17572-31150 |
| 17576A | No. 6 exhaust pipe bracket | 17576-31110 |
