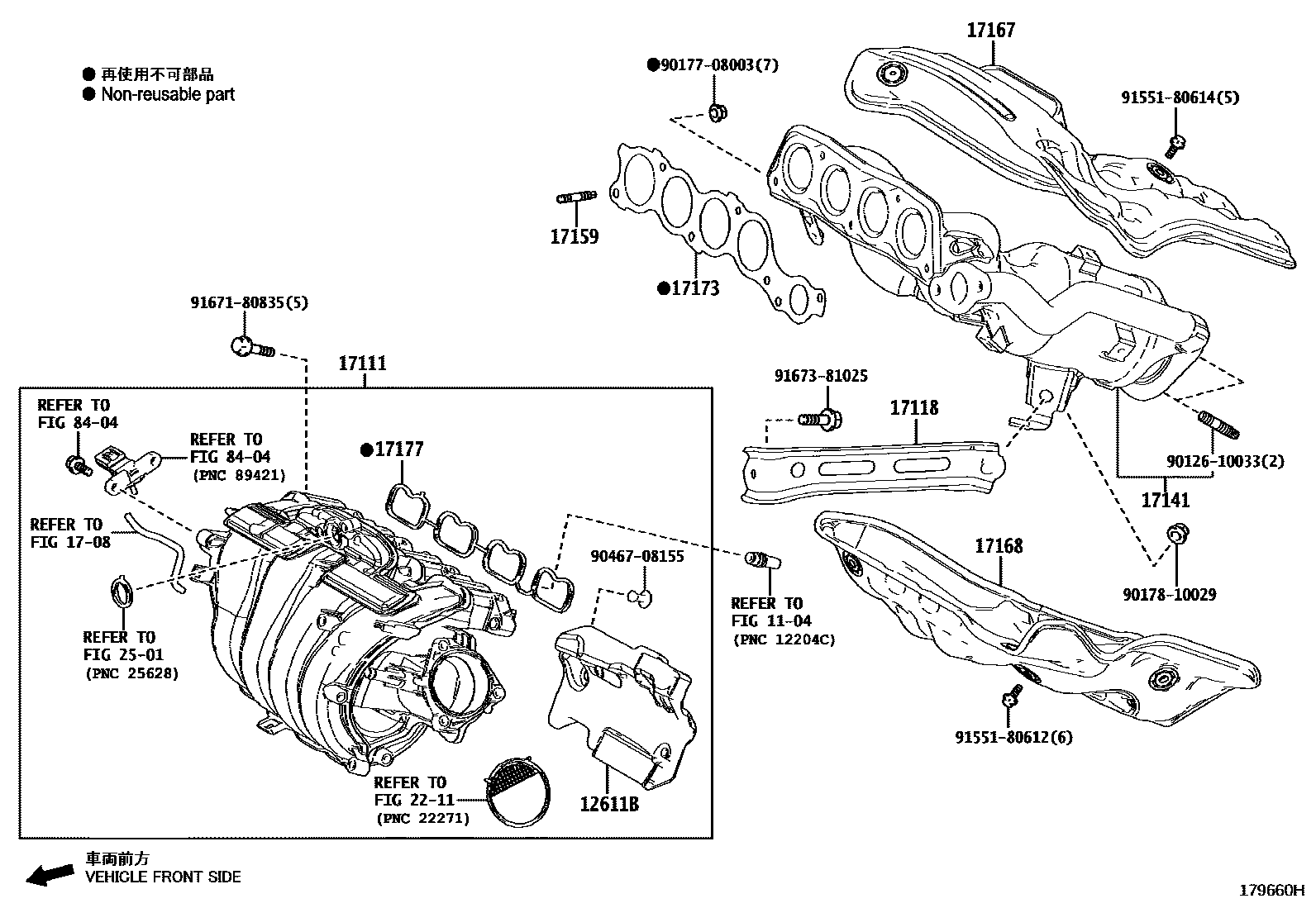

Toyota CAMRY Manifold — Figure 1701
Toyota CAMRY EPC diagram 1701, Manifold, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12611B | Engine hood No. 1 | 12613-25010 |
| 17111 | Intake Manifold | 17120-25010 |
| 17118 | Manifold stays | 17118-25010 |
| 17141 | exhaust manifold | 17141-25020 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08052 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-25010 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-25010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-25020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-25010 |
