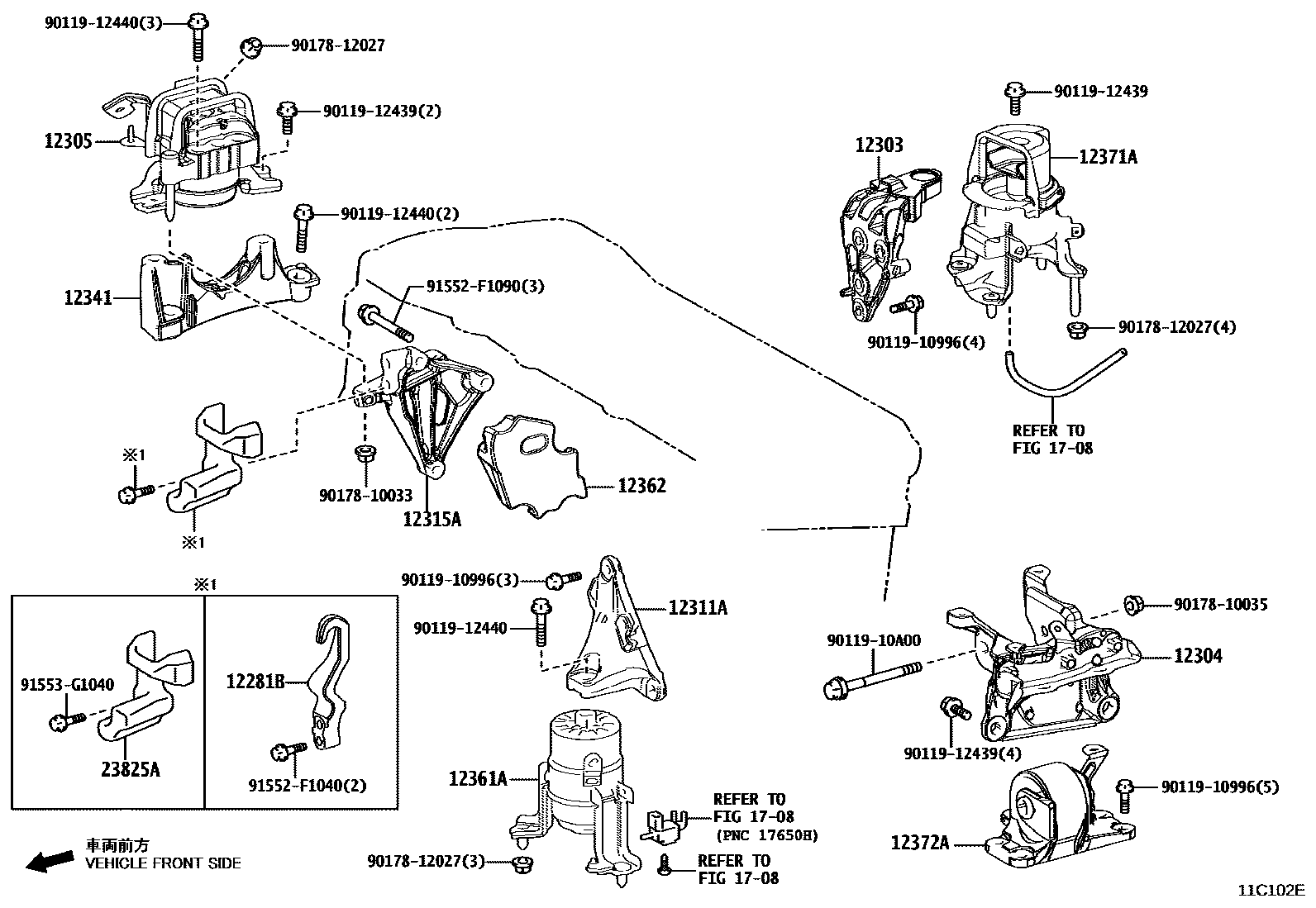

Toyota CAMRY Engine Mounting — Figure 1107
Toyota CAMRY EPC diagram 1107, Engine Mounting, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | CROCHET SUSPENSION MOTEUR NO.1 | 12281-25030 |
| 12303 | Engine rear mounting bracket sub-assembly | 12303-25010 |
| 12304 | SOUS-ENS. SUPPORT, PROTECTION MOTEUR, MG | 12304-25010 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-25010 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-25070 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-25030 |
| 12341 | engine mounting spacer | 12341-25010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-25040 · 12361-25041 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-25010 |
| 12371A | Engine rear mount vibration isolation pad | 12371-25011 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-25010 |
| 23825A | PROTECTION, ALIM CARBURANT | 23825-25010 |
