Toyota CAMRY Cylinder Block — Figure 1105

Toyota CAMRY EPC diagram 1105, Cylinder Block, with 2 images and 30 PNC and OE references.

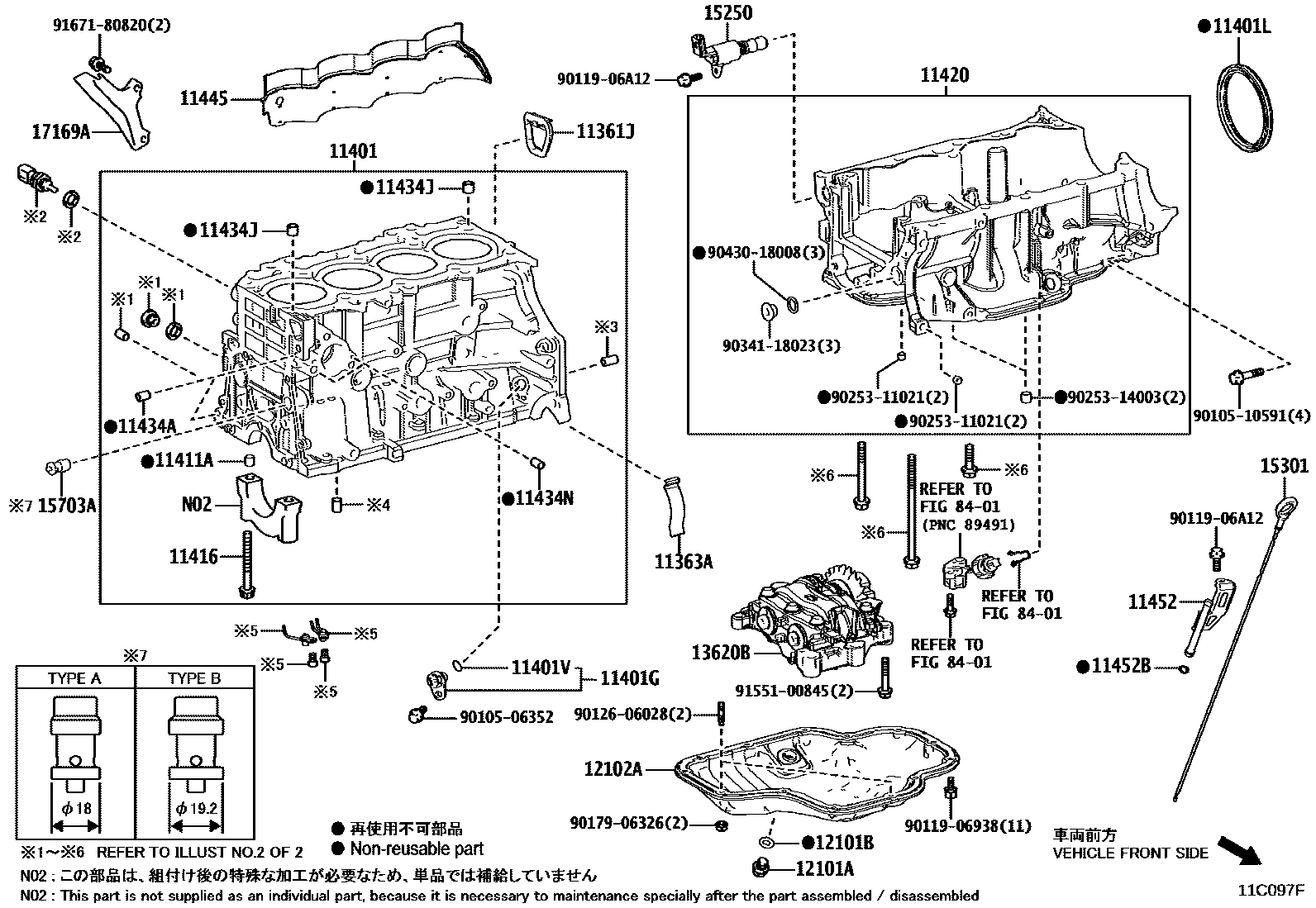

Toyota CAMRY Cylinder Block EPC diagram — 11C097F
Cylinder Block — 11C097F (201703 – 999999)

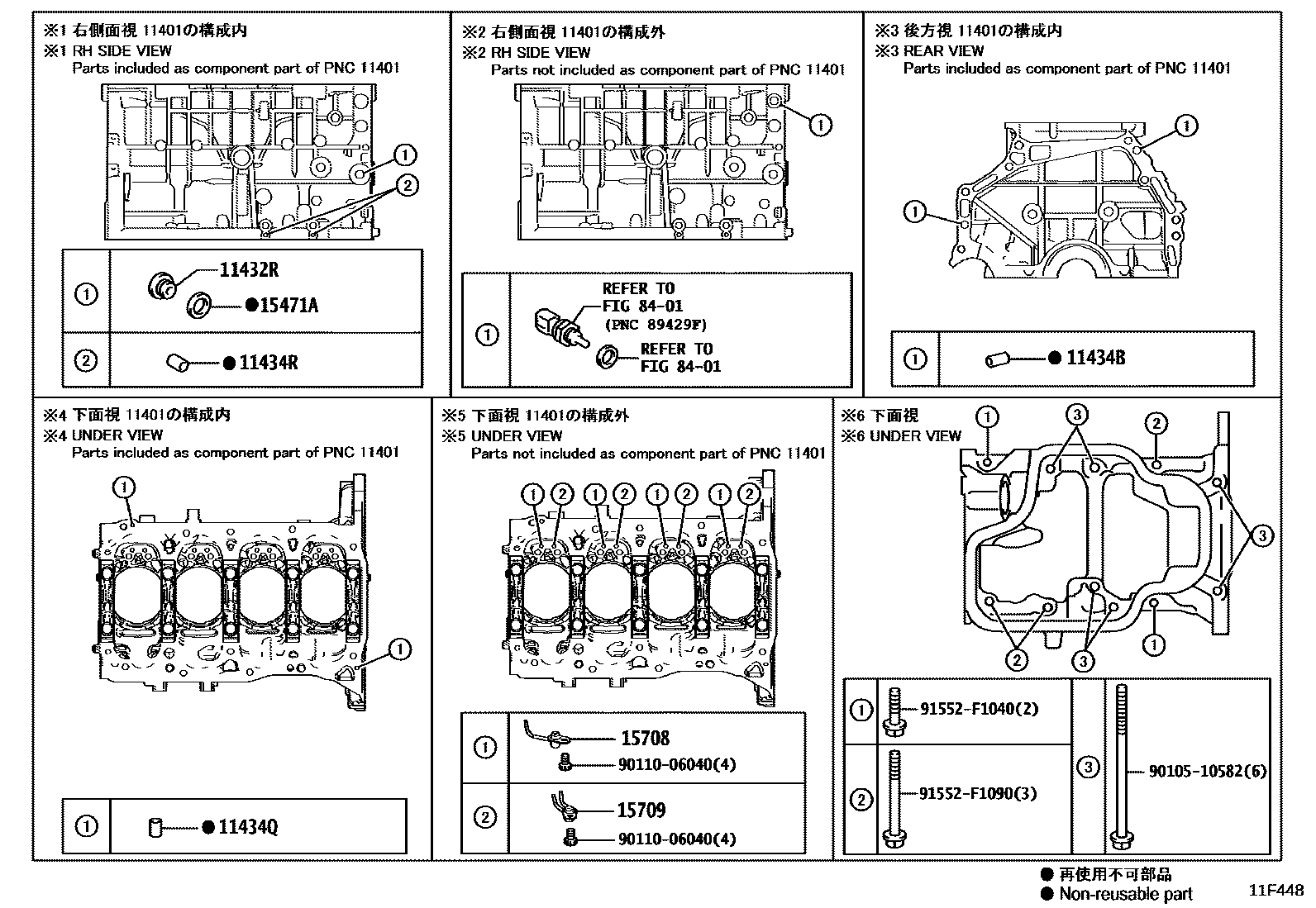

Toyota CAMRY Cylinder Block EPC diagram — 11F448
Cylinder Block — 11F448 (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
11361JFlywheel housing bottom cover11361-25010
11363AFlywheel housing side cover11363-33010
11401Cylinder block sub-assembly11410-29425 · 11410-29505
11401Gcrankshaft position sensor90919-05095
11401LSEAL, ENGINE REAR OIL90311-90010
11401VJOINT TORIQUE, CAPTEUR POSITION VILEBREQUIN90301-11039
11411ARing pin (for cylinder block No. 1)90253-14003
11416Bolts (for crankshaft bearing cap assembly)90910-02197
11420Reinforce crankcase assembly11420-25010
11432RNo. 1 headed straight thread plug (for cylinder block)90341-18023
11434ADirect sales (for timing gear cover assembly)90250-06003
11434BDirect sales (for clutch housing assembly)90250-10113
11434JRing pin (for cylinder head assembly)90253-14003
11434NDirect sales (for water inlet housing)90250-06003
11434QDirect sales (for crankcase)90250-06003
11434RDirect selling (for drive shaft bearing bracket)90250-06003
11445Cylinder block water jacket spacer11445-25010
11452Engine oil level gauge guide11452-25010
11452BO-ring (for oil level gauge guide)96741-19010
12101AScrew plug (for draining oil from the oil pan)90341-12012
12101BGasket (for oil pan drain plug)90430-12031
12102ANo. 2 oil pan sub-assembly12102-25010
13620BEngine balancer assembly13620-25010
15250ENS. SOUPAPE, COMMANDE PRESSION HUILE15250-25010
15301Engine oil level scoring assembly15301-25030
15471AGasket (for cylinder block)90430-18008
15703ASOUS-ENSEMBLE SOUPAPE, GICLEUR GRAISSAGE15703-25010 · 15703-25011
15708No. 1 oil nozzle sub-assembly15708-25010
15709No. 2 oil nozzle sub-assembly15709-25010
17169AExhaust manifold No. 3 heat shield17169-25021
