Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716

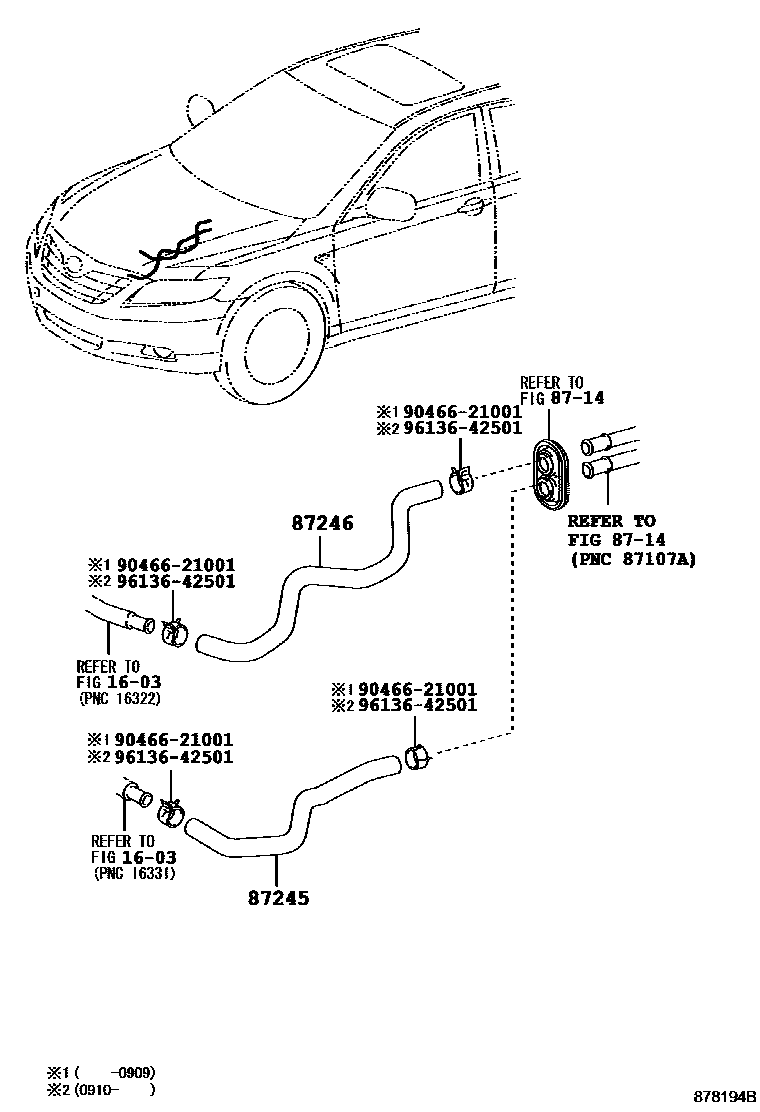

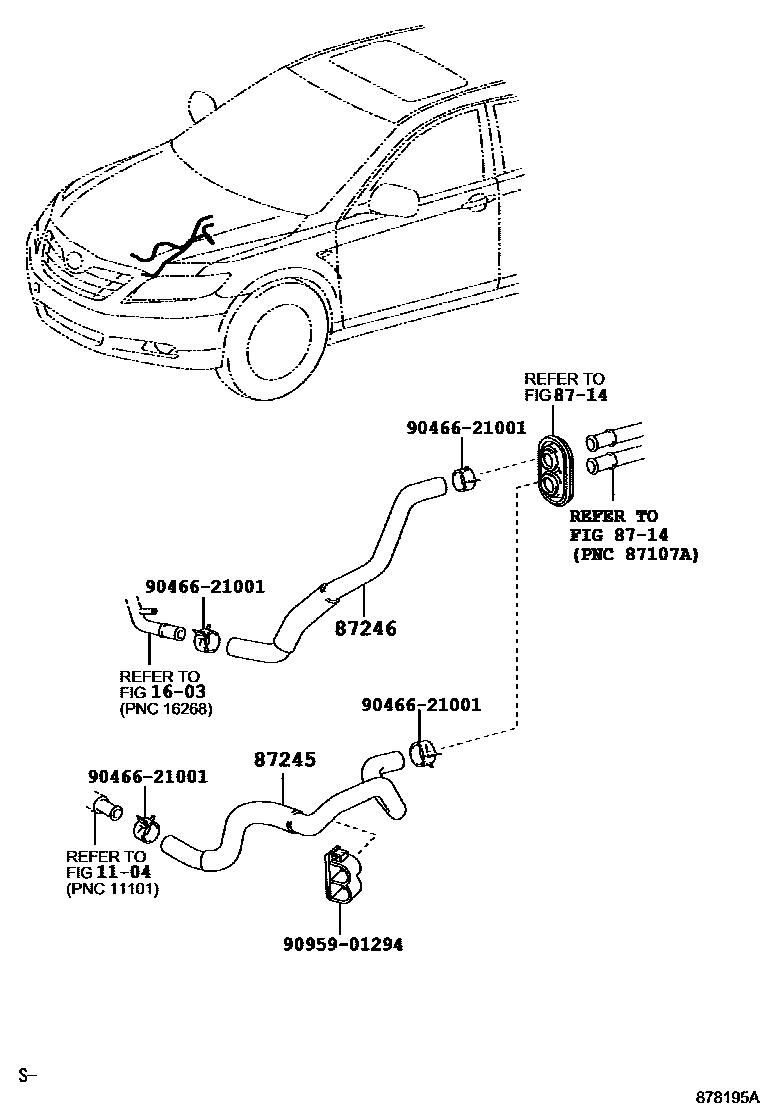

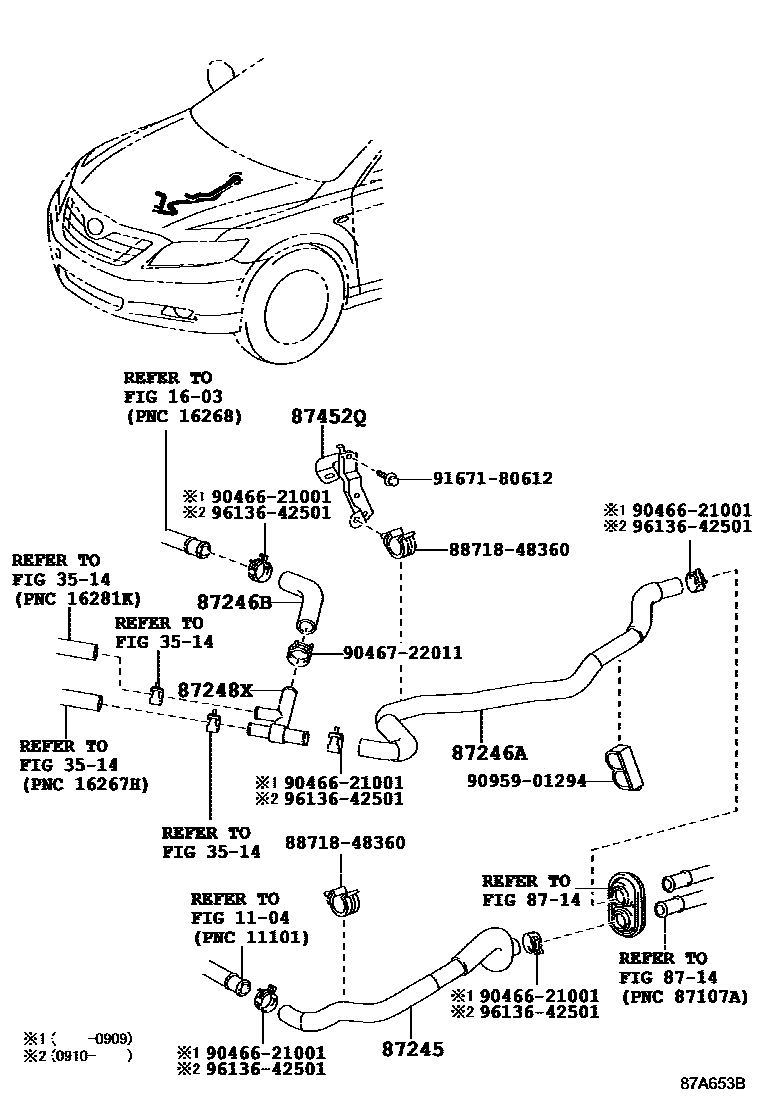

Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87245-33330 · 87245-33480 · 87245-33590 |
| 87246 | Heater outlet hose | 87245-33490 · 87245-33540 |
| 87246A | Heater outlet hose A | 87245-33600 |
| 87246B | Heater outlet hose B | 87245-33610 |
| 87248X | heater water pipe | 87248-42020 |
| 87452Q | Heater Bracket No. 1 | 87452-33040 |
