Toyota CAMRY 后视镜 — Figure 8701

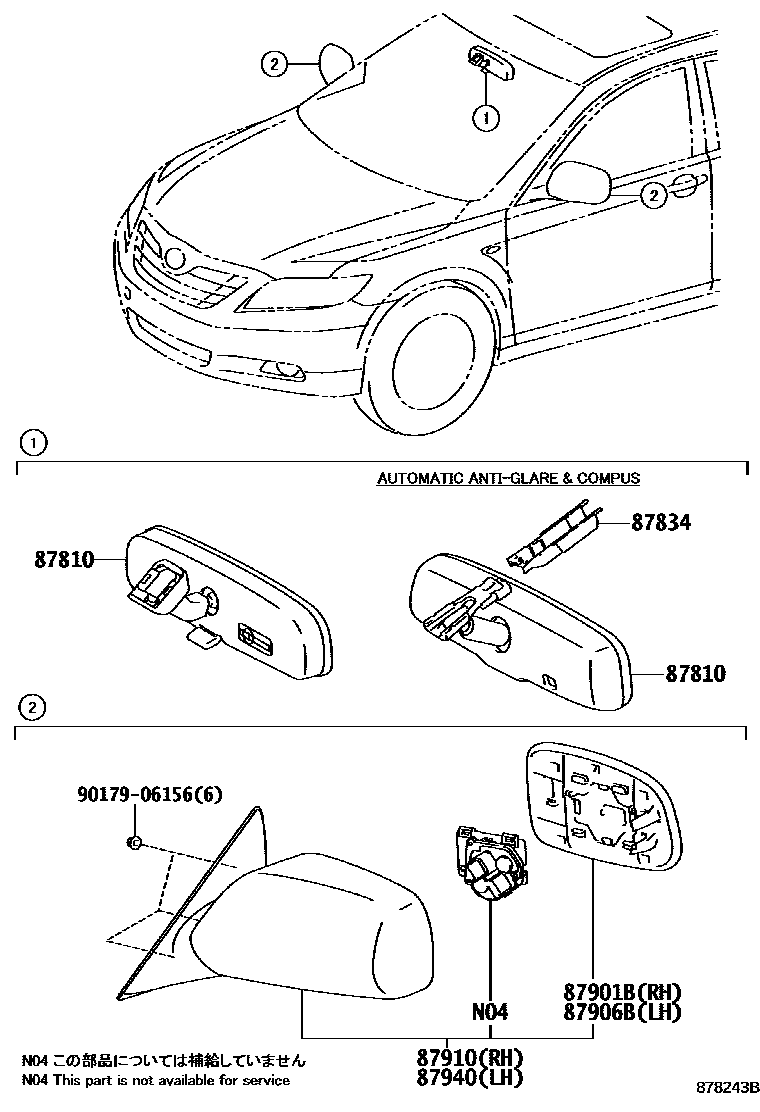

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06050 · 87810-06051 · 87810-60190 · 87810-60191 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-33010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-33660 · 87931-33670 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-33620 · 87961-33630 |
