Toyota CAMRY 挡风玻璃清洗器 — Figure 8503

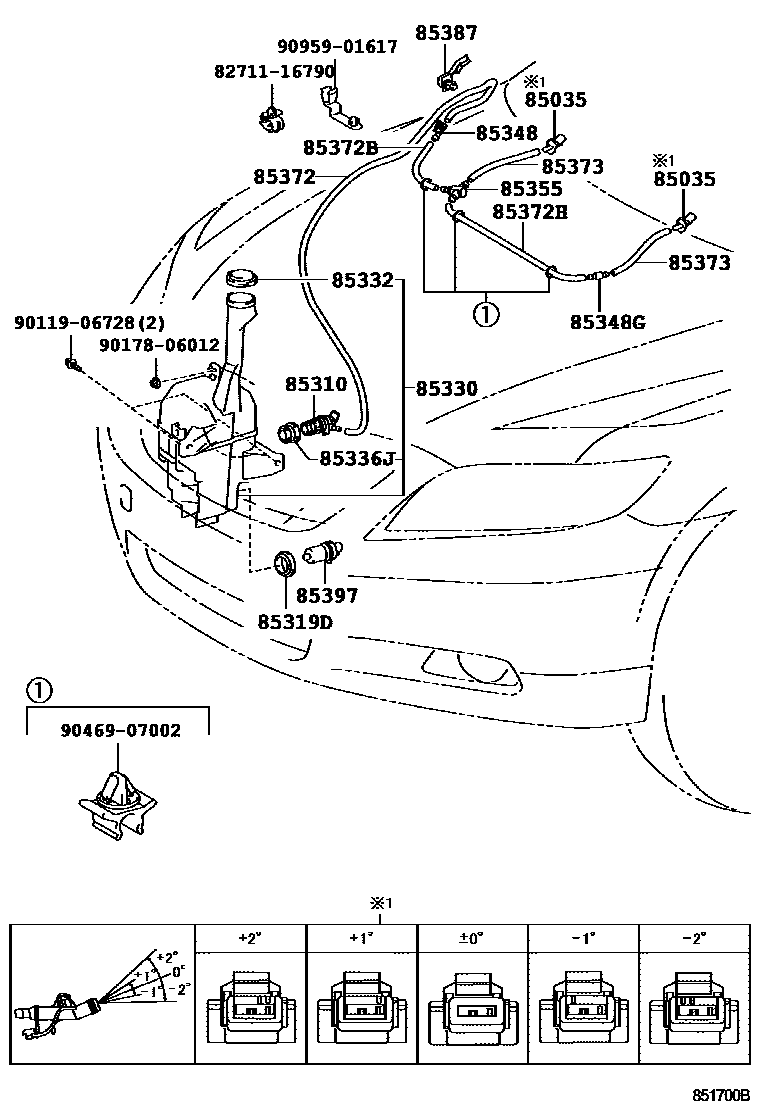

Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30170 · 85381-30180 · 85381-30190 · 85381-30200 · 85381-30210 |
| 85310 | Windshield washer motor and pump assembly | 85330-60190 |
| 85319D | front washer seal | 85319-33230 |
| 85330 | Windshield washer fluid tank assembly | 85315-33300 |
| 85332 | Windshield washer fluid tank cap | 85316-33320 |
| 85336J | Cleaning fluid tank protection device | 85336-60300 |
| 85348 | Windshield washer hose connector No. 1 | 85375-20800 |
| 85348G | Windshield washer hose connector No. 2 | 85375-10260 |
| 85355 | Windshield washer hose valve | 85321-28020 · 85321-30080 |
| 85387 | Clip No. 1 (for windshield washer) | 85387-33080 |
| 85397 | Liquid level warning switch assembly | 85397-33230 |
