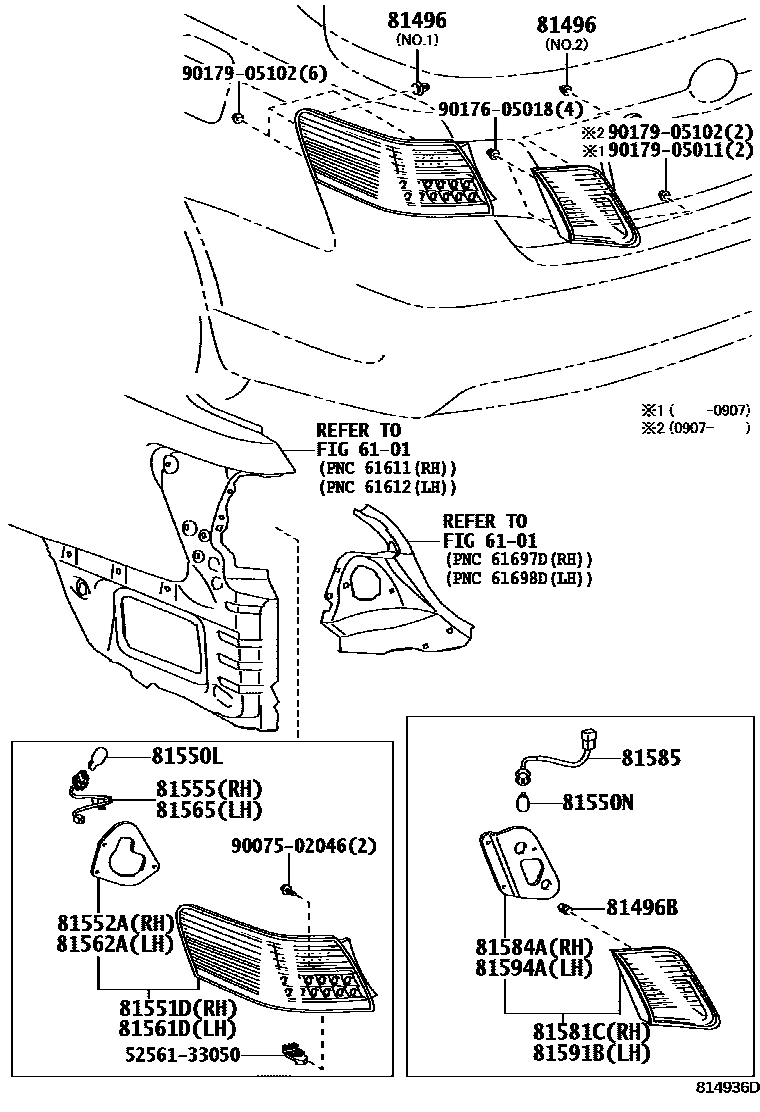

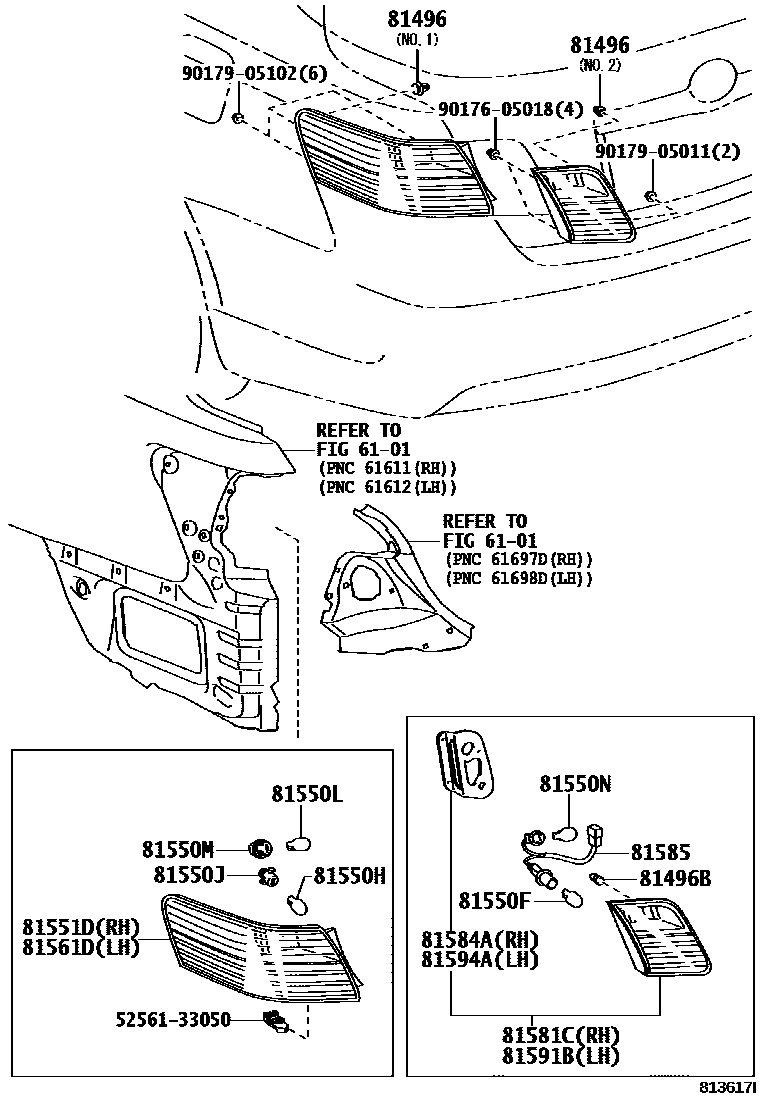

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-33010 · 81496-60010 |
| 81496B | Rear light guide block | 81496-33020 |
| 81550F | tail light bulb | 99132-12050 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550J | Tail and brake light holders | 90075-60079 |
| 81550L | Rear turn signal light bulb | 90981-13043 · 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60026 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-33340 · 81551-33460 · 81551-33520 |
| 81552A | Right rear combination light gasket | 81552-33520 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-33520 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-33400 · 81561-33460 · 81561-33520 |
| 81562A | Left rear combination light gasket | 81562-33520 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-33520 |
| 81581C | Right rear light lampshade and lamp body | 81581-33120 · 81581-33170 |
| 81584A | Right rear light gasket | 81584-33120 · 81584-33170 |
| 81585 | Rear lamp holder and wiring harness | 81585-33120 · 81585-33170 |
| 81591B | Left rear light shade and body | 81591-33120 · 81591-33170 |
| 81594A | Left rear light gasket | 81594-33120 · 81594-33170 |
