Toyota CAMRY Headlamp — Figure 8101

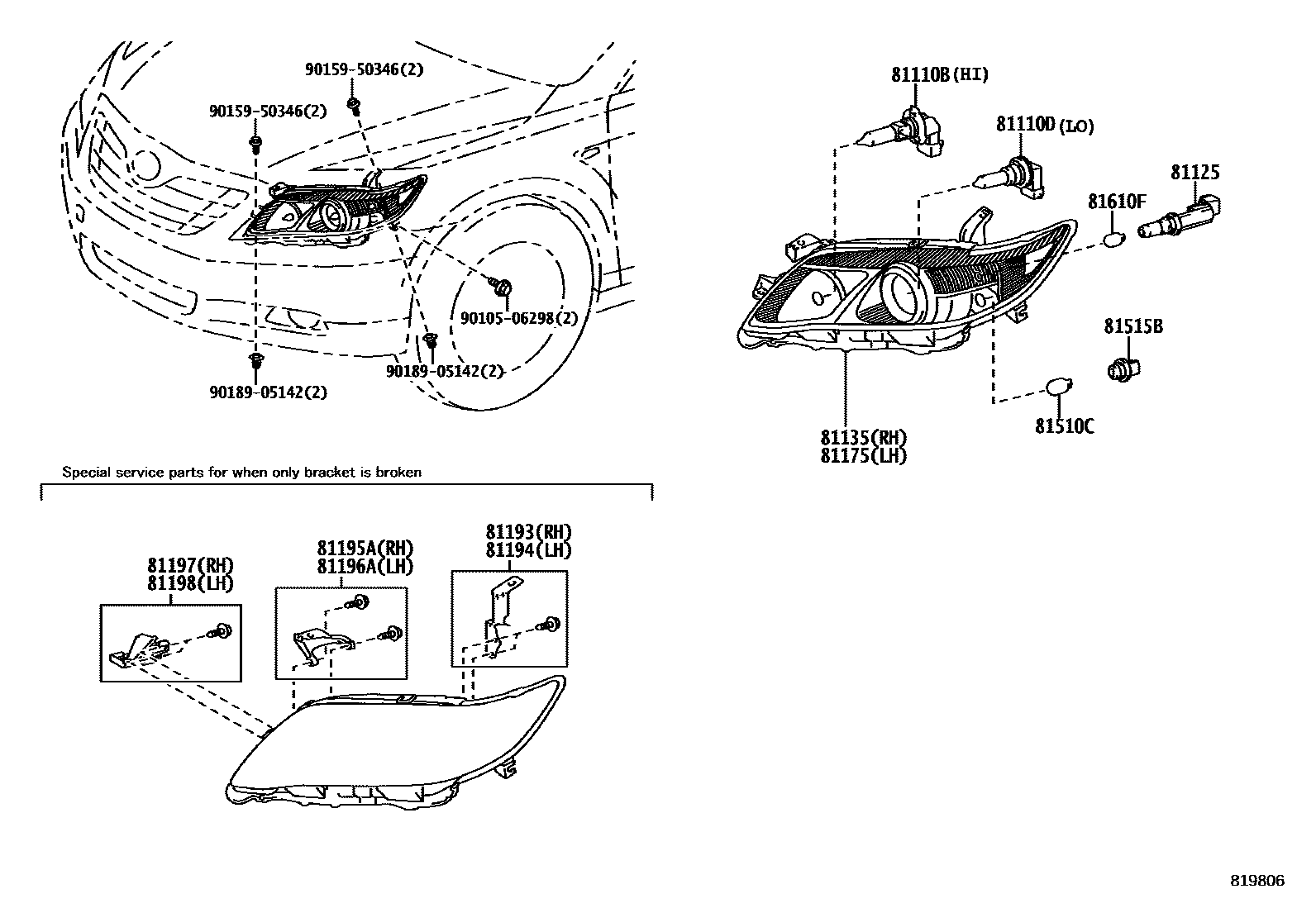

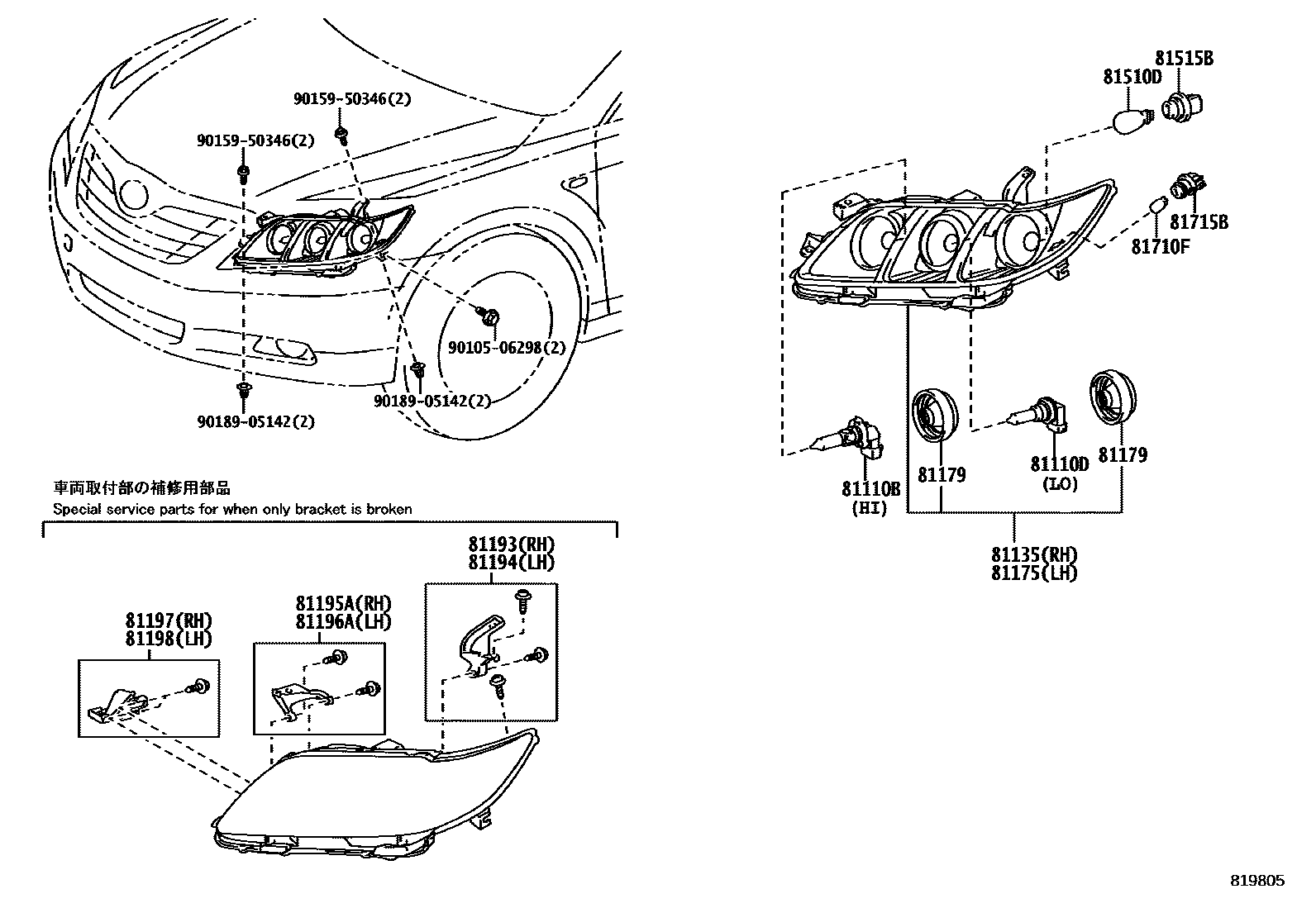

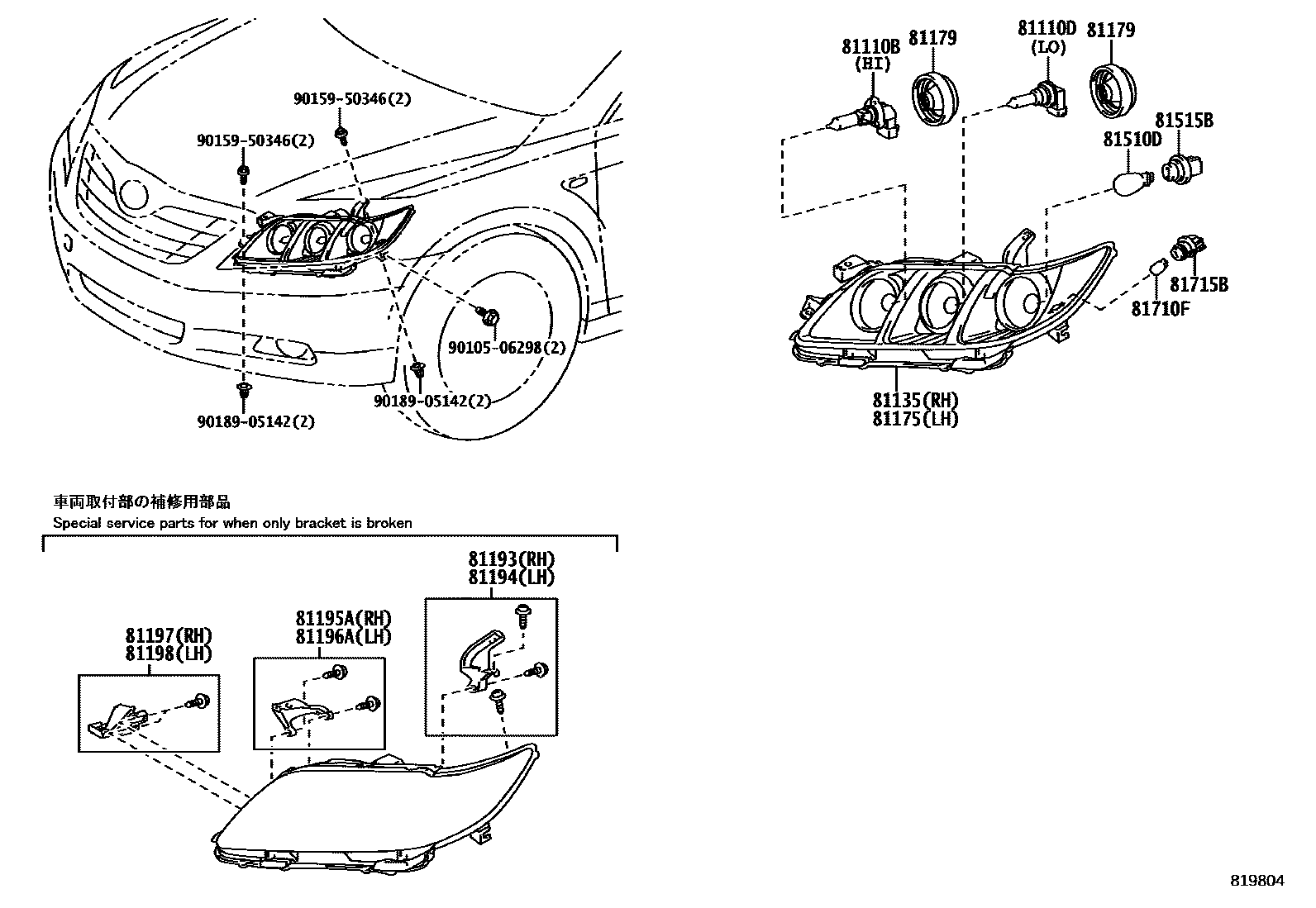

Toyota CAMRY EPC diagram 8101, Headlamp, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 · 90981-13085 |
| 81125 | headlight wire | 81125-33700 |
| 81135 | Right headlight assembly | 81130-33650 · 81130-33651 · 81130-33700 |
| 81175 | Left headlight assembly | 81170-33650 · 81170-33651 · 81170-33700 |
| 81179 | Headlight lamp holder cover | 90075-65006 |
| 81193 | Right headlight upper protective ring | 81193-33050 · 81193-33060 |
| 81194 | Left headlight upper protective ring | 81194-33050 · 81194-33060 |
| 81195A | Right headlight lower protection ring | 81195-33020 |
| 81196A | Left headlight lower protection ring | 81196-33020 |
| 81197 | Right headlight lower bracket | 81197-33010 |
| 81198 | Left headlight lower bracket | 81198-33010 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81510D | front turn signal light bulb | 90981-AF003 · 90981-AF004 |
| 81515B | Front turn signal lamp holder | 90075-60028 · 90075-60060 |
| 81610F | Light bulb (for width indicator light) | 90981-15012 |
| 81710F | Front width light bulb | 99132-12050 |
| 81715B | Front width light lamp holder and wiring harness | 90075-60001 |
