Toyota CAMRY 燃油箱和燃油管 — Figure 7701

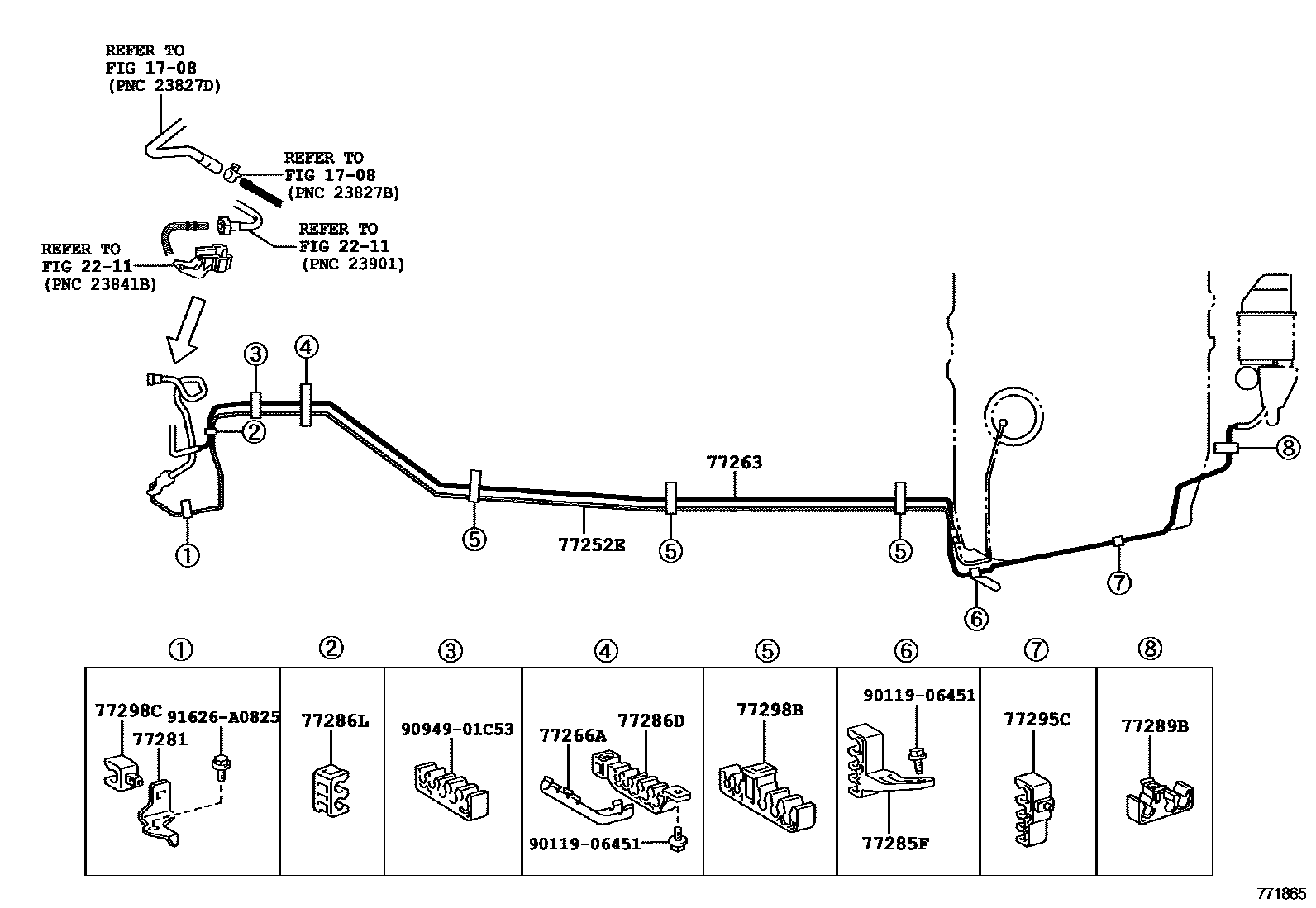

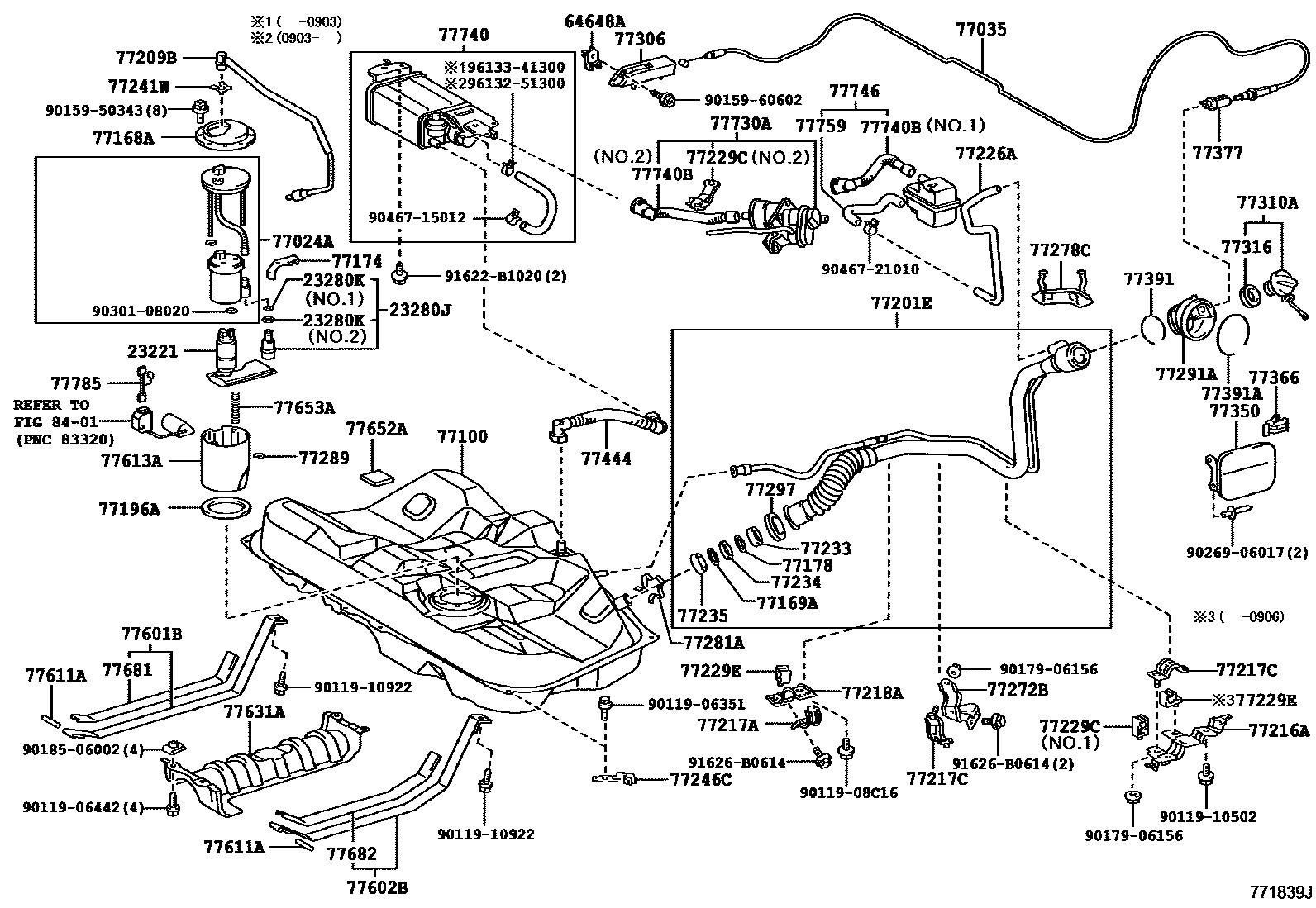

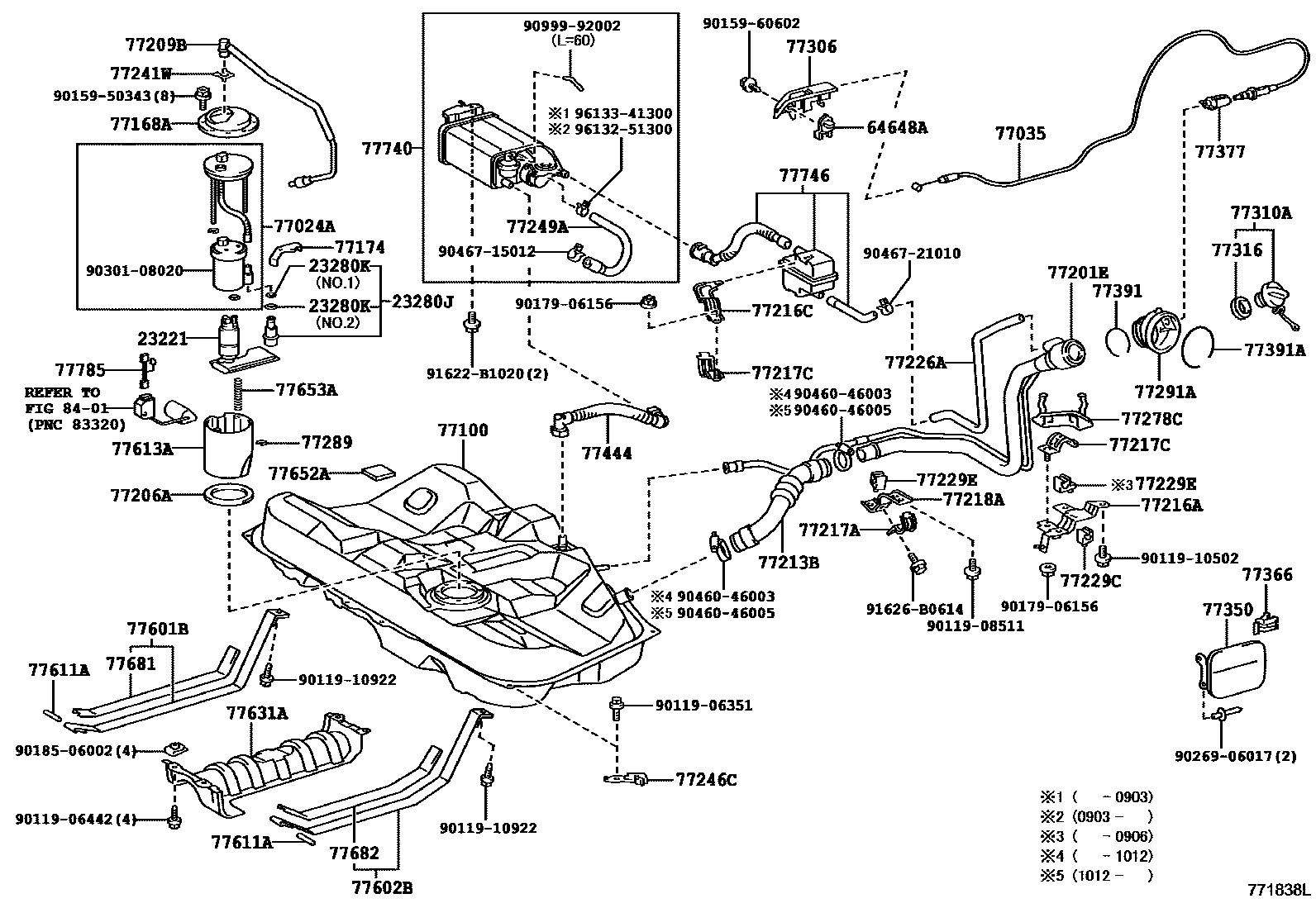

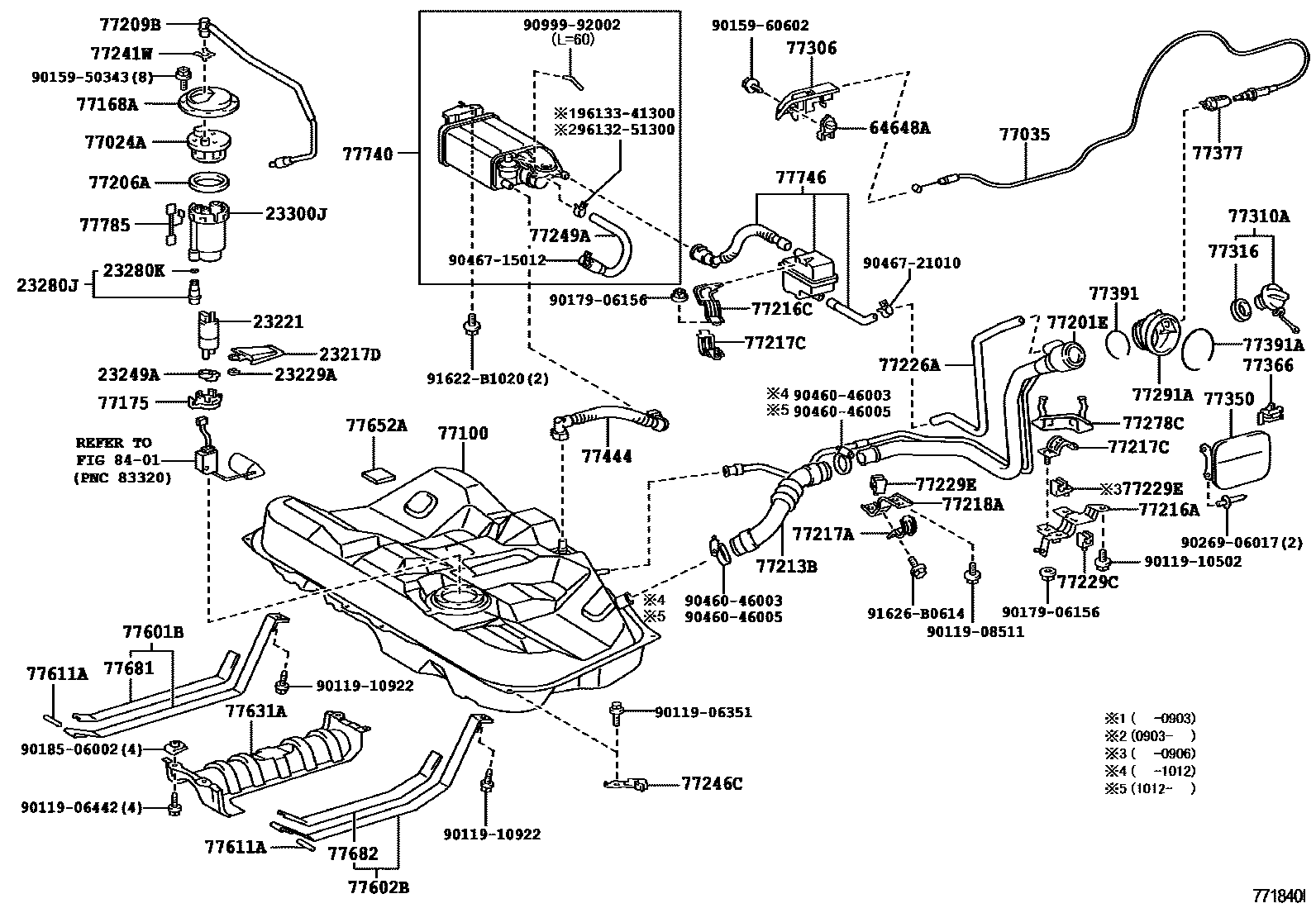

Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 5 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0C010 |
| 23221 | fuel pump | 23220-28070 · 23220-28071 · 23220-28370 · 23221-0A040 |
| 23229A | Clip (for fuel pump filter) | 23219-03010 |
| 23249A | Rubber gasket (for fuel pump) | 23249-46180 |
| 23280J | Fuel pressure regulator assembly | 23280-20060 · 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-07020 · 90301-15024 |
| 23300J | fuel filter assembly | 23300-21010 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77024A | Fuel absorber sub-assembly | 77024-33030 · 77024-33060 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-33130 |
| 77100 | fuel tank assembly | 77001-33140 · 77001-33141 · 77001-33142 · 77001-33190 · 77001-33191 · 77001-33192 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-33050 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33050 |
| 77174 | No. 1 oil suction pipe bracket | 77174-33020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-33020 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-33010 |
| 77196A | Auxiliary fuel tank carrier gasket | 77169-33030 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-33270 · 77201-33271 · 77201-33310 · 77201-33311 |
| 77206A | Gasket (for fuel tank suction pipe) | 77169-33020 |
| 77209B | Fuel pump pipe sub-assembly | 77209-33070 |
| 77213B | Fuel tank to filler pipe hose | 77213-33100 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77205-33030 · 77216-33020 |
| 77216C | No. 3 fuel tank filler pipe bracket | 77216-33070 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-33030 |
| 77217C | No. 2 fuel tank filler pipe bracket | 77217-33020 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-33051 · 77218-33052 · 77218-33060 · 77218-33061 |
| 77226A | No. 6 fuel tank breather pipe | 77226-33030 · 77226-33060 |
| 77229C | Snorkel clamp | 77229-33070 · 77229-33080 · 77229-33100 |
| 77229E | Snorkel clamp | 77229-33060 |
| 77233 | fuel hose connector | 77233-33040 |
| 77234 | fuel line connector seal | 77234-33020 |
| 77235 | No. 1 fuel evaporation vent pipe | 77235-33010 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77246C | Main fuel pipe bracket | 77246-33020 |
| 77249A | fuel drain hose | 77249-33070 · 77249-33071 |
| 77252E | No. 2 fuel pipe (for front main fuel pipe) | 77251-33150 |
| 77263 | No. 3 fuel tank to carbon canister pipe | 77261-33140 |
| 77266A | No. 1 fuel line protection device | 77266-33041 |
| 77272B | No. 1 snorkel holder | 77272-33060 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-33020 |
| 77281 | No. 1 main fuel pipe bracket | 77281-33030 |
| 77281A | Fuel filler pipe clamp | 77281-33020 |
| 77285F | No. 1 fuel pipe clamp | 77299-33040 |
| 77286D | No. 2 fuel pipe clamp | 77286-33040 |
| 77286L | No. 5 fuel pipe clamp | 77285-42110 |
| 77289 | Fuel tank pipe holder | 77289-52090 |
| 77289B | No. 3 fuel pipe clamp | 77289-33050 |
| 77291A | Fuel tank filler pipe cover | 77291-33060 |
| 77295C | Fuel pipe retaining ring | 77295-33020 |
| 77297 | fuel line connector | 77297-33030 |
| 77298B | No. 4 fuel pipe clamp | 77298-20110 |
| 77298C | No. 4 fuel pipe clamp | 77298-30170 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-33030 |
| 77310A | Fuel tank cap assembly | 77300-47020 · 77300-52040 · 77300-75010 |
| 77316 | fuel tank cap gasket | 77316-52020 · 77316-52040 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-33180 |
| 77366 | Fuel filler cap hinge spring | 77360-33030 |
| 77377 | Fuel filler cap lock retainer | 77377-35010 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-33030 |
| 77444 | fuel tank vent hose | 77404-33060 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-33040 · 77601-33090 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-33050 · 77602-33100 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77613A | No. 1 fuel tank strap bracket | 77613-33030 |
| 77631A | Fuel tank center lower protective shell | 77631-33040 · 77631-33041 · 77631-33080 |
| 77652A | No. 2 fuel tank liner | 77652-33020 |
| 77653A | No. 3 fuel tank liner | 77652-33040 |
| 77681 | Fuel tank right side strap seat | 77681-32060 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77730A | Capture carbon canister assembly with oil outlet valve | 77730-33090 |
| 77740 | Carbon canister assembly | 77740-33170 · 77740-33180 |
| 77740B | No. 2 fuel hose (for charcoal canister) | 77404-33090 · 77404-33130 |
| 77746 | No.2 carbon canister filter | 77706-33030 · 77706-33040 |
| 77759 | Carbon canister hose | 77759-33030 |
| 77785 | fuel pump wiring harness | 77785-33040 · 77785-52020 |
