Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

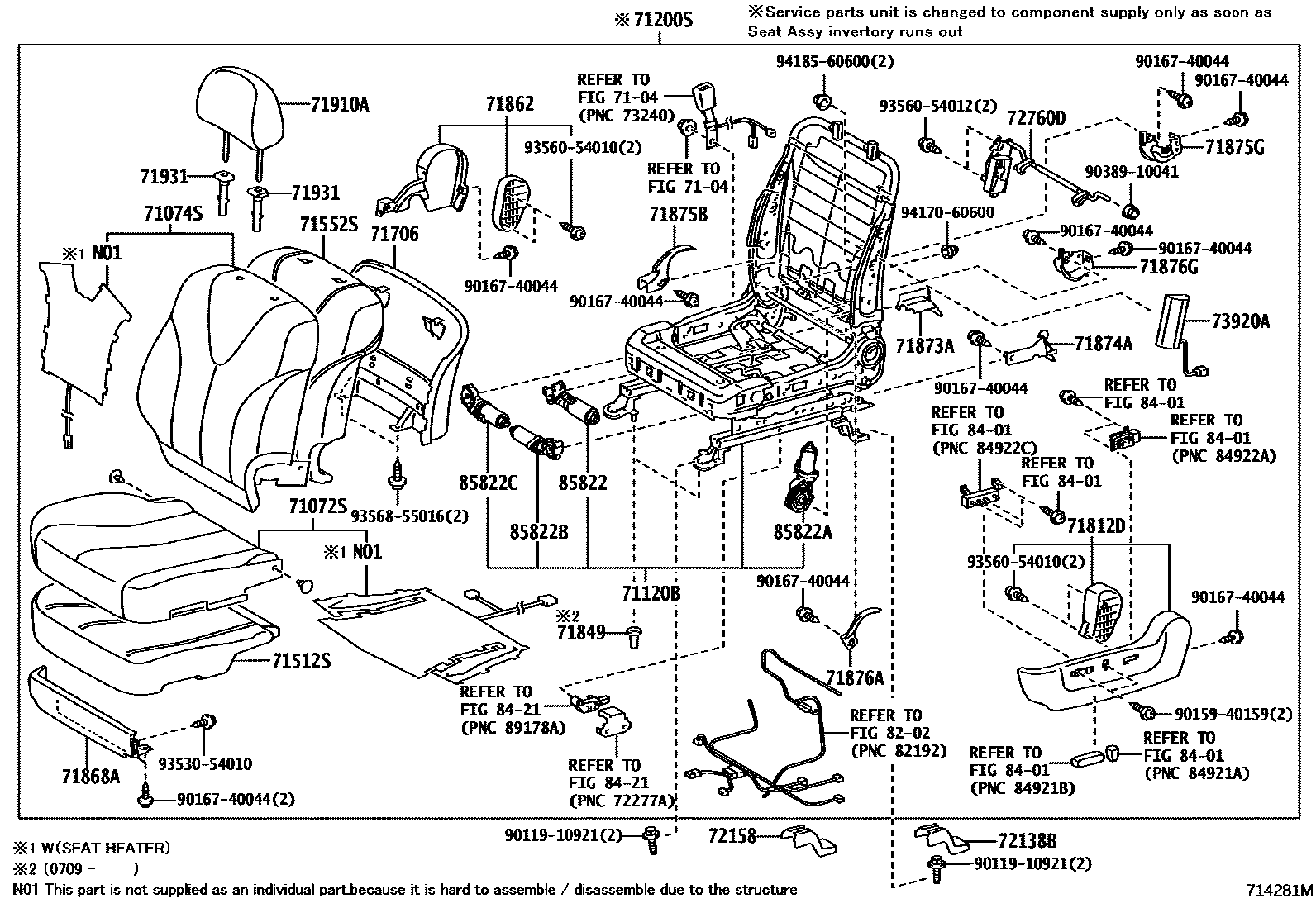

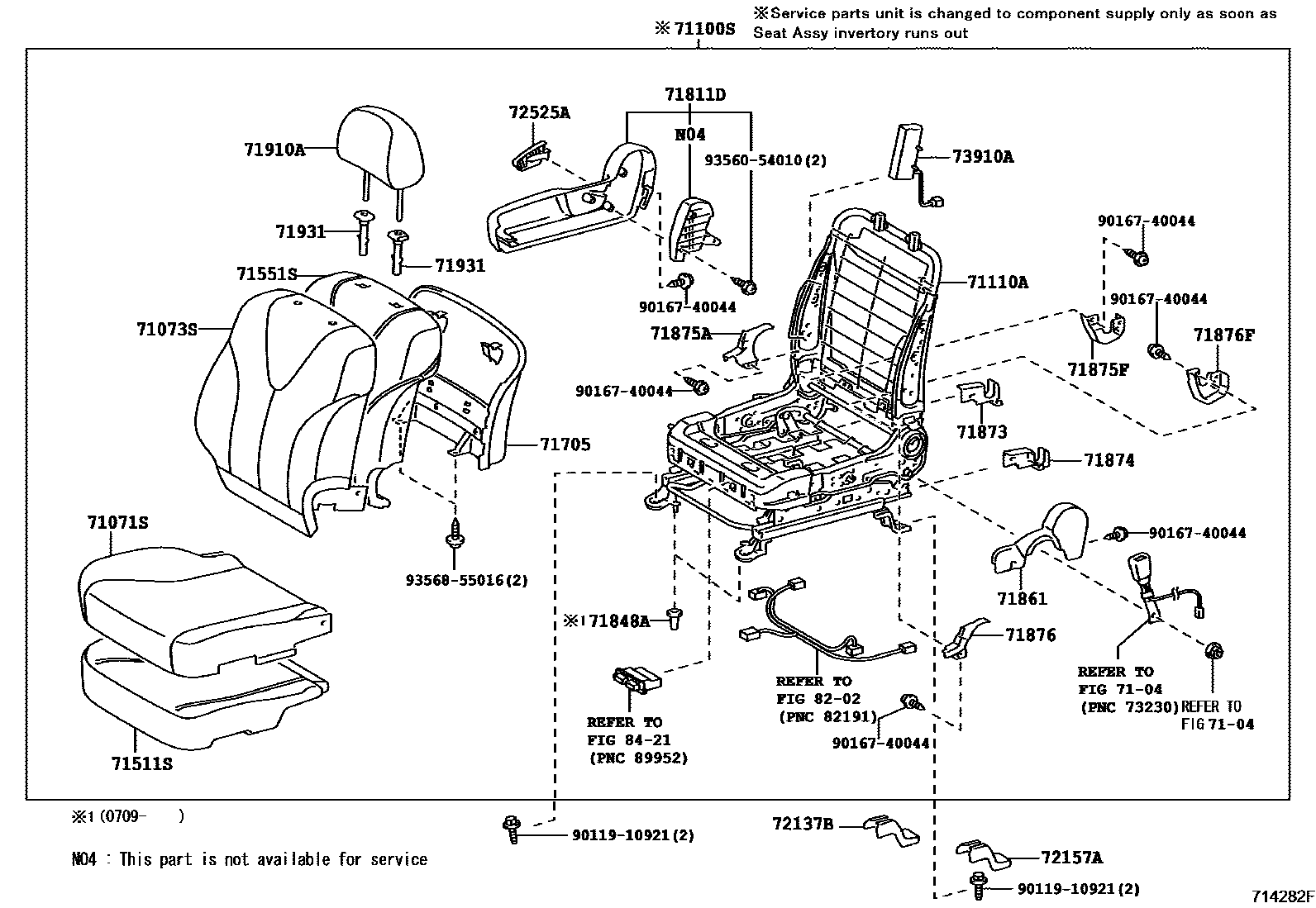

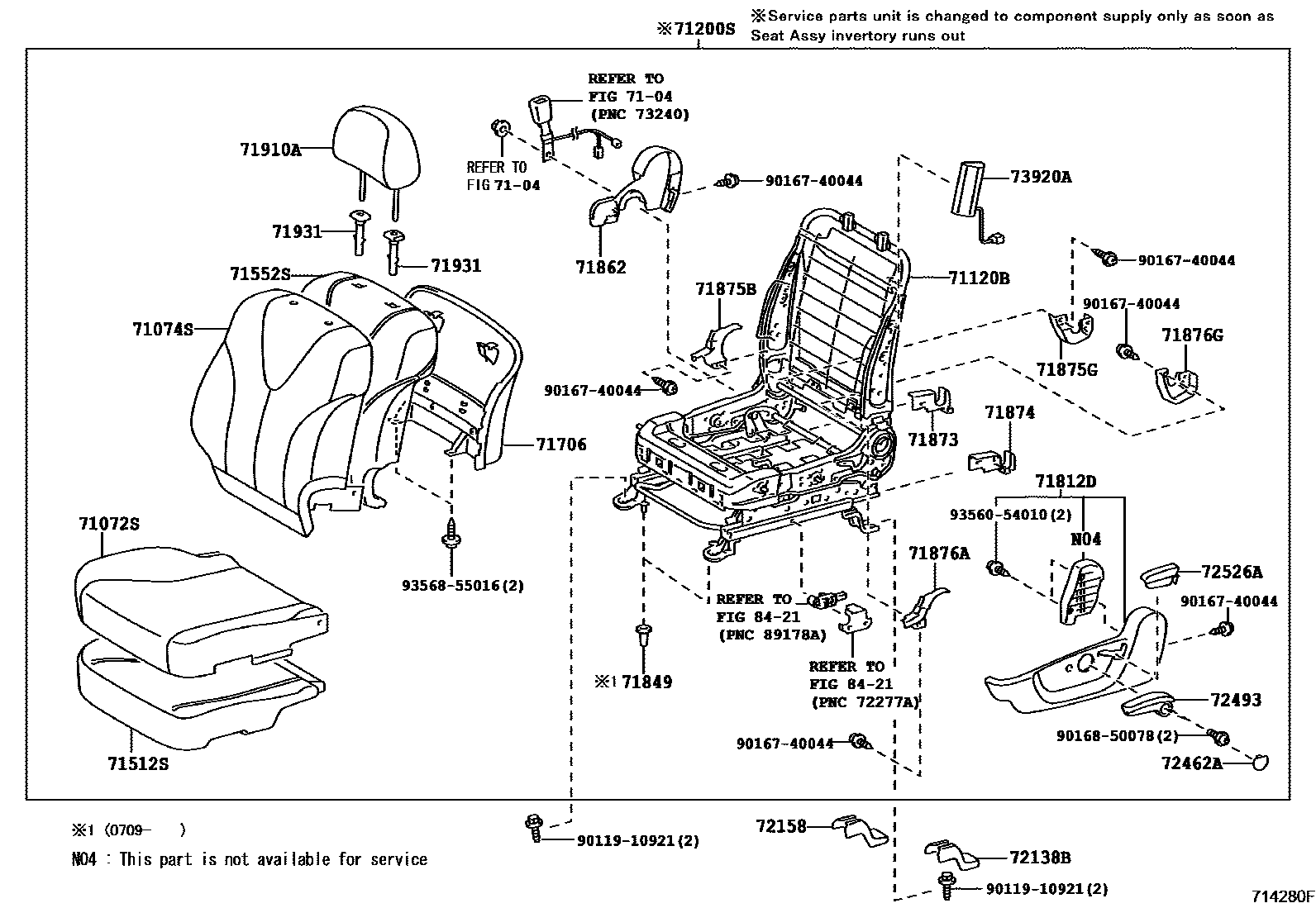

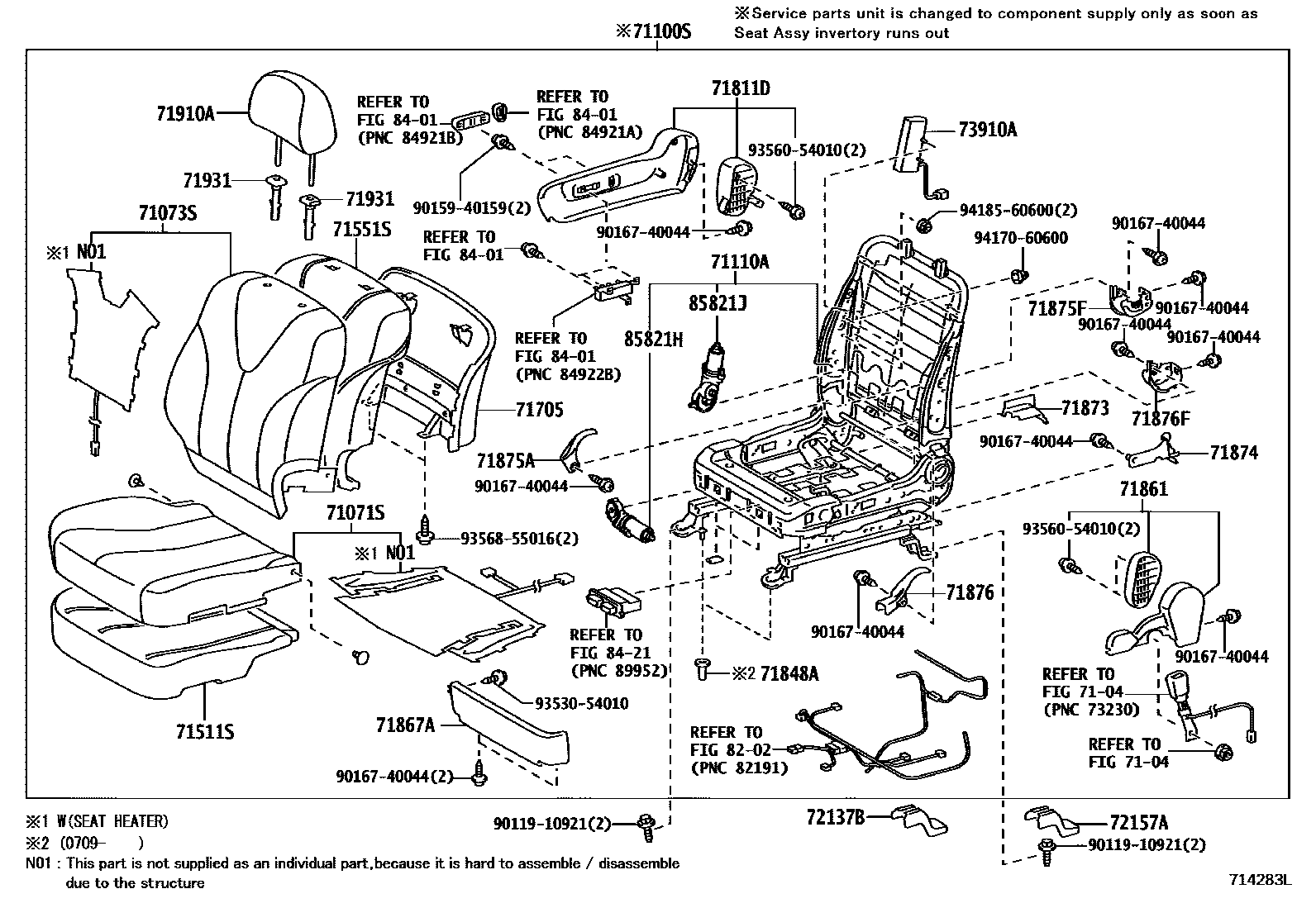

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71110A | Front right seat (with adjuster) frame assembly | 71110-33160 · 71110-33210 · 71110-33211 · 71110-33220 · 71110-33221 · 71110-33310 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-33130 · 71120-33160 · 71120-33170 · 71120-33220 · 71120-33221 · 71120-33230 · 71120-33231 · 71120-33330 · 71120-33331 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-33380 · 71511-33390 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-33200 · 71512-33210 |
| 71551S | Front right seat back cushion (for split seats) | 71551-33250 |
| 71552S | Front left seat back cushion (for split seats) | 71552-33160 |
| 71848A | Right seat adjuster cover | 71848-33010 |
| 71849 | left seat adjuster cover | 71848-33010 |
| 71873 | Front right seat cushion lower guard panel | 71873-33070 · 71873-53030 |
| 71873A | Front seat cushion lower guard | 71873-33070 |
| 71874 | Front left seat cushion lower guard | 71874-30020 · 71874-33080 · 71874-53010 |
| 71874A | Front left seat cushion lower guard | 71874-30020 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-58050 · 71875-58060 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-58060 · 71875-60140 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-58050 · 71876-58060 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-58060 · 71876-60140 |
| 71910A | Front seat headrest assembly | 71910-33551 · 71910-33561 · 71910-33571 |
| 72760D | Left lumbar support adjuster assembly | 72760-48020 |
| 73910A | Front right seat airbag assembly | 73910-33020 |
| 73920A | Front left seat airbag assembly | 73920-33020 |
| 85821H | Right electric seat sliding motor assembly | 85801-28020 · 85801-58010 · 85820-33040 |
| 85821J | Right electric seat tilt adjustment motor assembly | 85801-28010 · 85801-58020 · 85820-33040 |
| 85822 | Left electric seat sliding motor assembly | 85801-28060 · 85801-60010 · 85820-33040 |
| 85822A | Left electric seat tilt adjustment motor assembly | 85801-28050 · 85801-60020 · 85820-33040 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-28080 · 85801-60040 · 85820-33040 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-28070 · 85801-60030 · 85820-33040 |
